19mm MAX 16A 1NO IP65 Green Ring Light Black Self-locking Metal Push Button Switch

1.16A/250VAC, 3500W reactive load

2. Optional connector to ensure contact performance and reduce labor waste

3. Concave design, more convenient operation;

4. Super metal texture and high-end appearance design, improve the ability to resist welding deformation

5. The waterproof and dustproof grade is IP65

6. Mechanical life: up to 300,000 times, can work at -40℃~80℃

7. Has applied for a number of patents, CCC, CE certification

8. Instant glow
  • LB19E-A-G-L-5-24V

  • YUMO

  • 1

  • China

  • Push Button Switch

  • 250VAC

  • 5*5*5cm

  • Push Button Switch

  • CE

  • 16A

  • light

  • Industrial lighting

  • Max. 16A

Availability:

19mm MAX 16A 1NO IP65 Green Ring Light Black Self-locking Metal Push Button Switch

LB19E-A-G-L-5-24V (4)

LB19E-A-G-L-5-24V

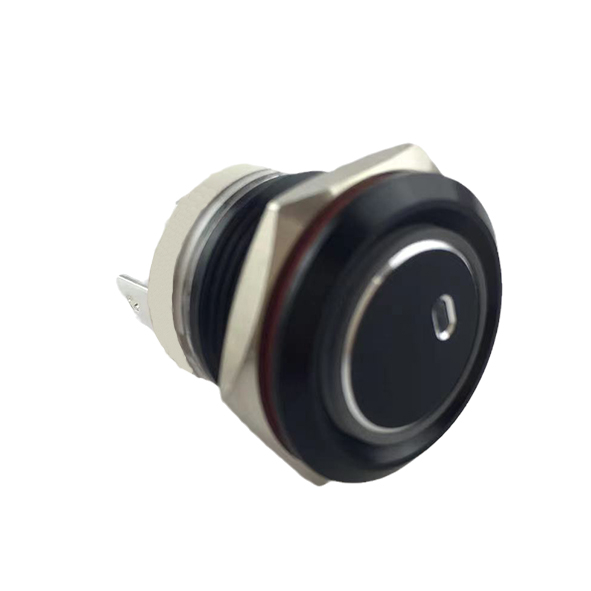

This is aluminum oxide black oush button switch with green LED light

LB19E-A-G-L-5-24V (2)LB19E-A-G-L-5-24V (1)

Parameters


Mounting Aperture 19mm
Serial Number 19E Metal push button switch
Head shape Flat Head
Switch combination Self-locking
Action form 1NO1NC Independent Pin
Waterproof level IP65, customized IP67, anti-collision IK10
Working environment -40°C~+85°C (non-vacuum state, without freezing)
Insulation resistance ≥1000MΩ
Contact resistance ≤50mΩ
LED voltage 9-24V, 220V / Customized: 3-8V,25-48V,110V
Resistive load 19E: AC-15:110V/220V: 16A ,DC-13:12V/24V: 16A
Inductive load 19E: AC-15:110V/220V: 4A ,DC-13:110V:4A
Glowing shape Ring
Glow color Green


LB19E-A-G-L-5-24V (9)

LB19E-A-G-L-5-24V (7)LB19E-A-G-L-5-24V (8)
