ABS16S-P11Z-E-R-24
YUMO
1
China
genereally
pin terminal type
CE
Industrial Automation

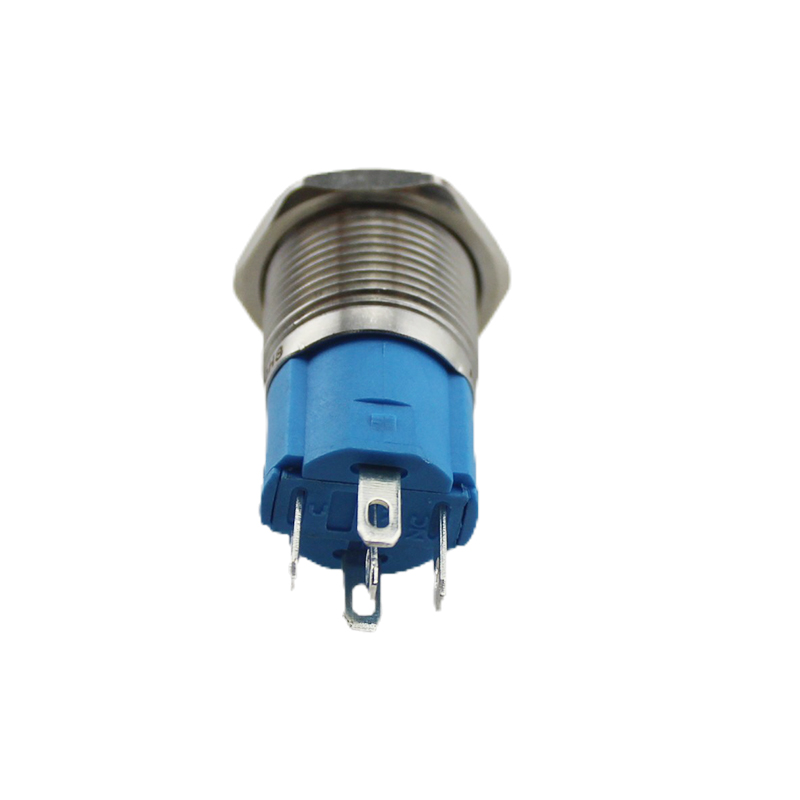

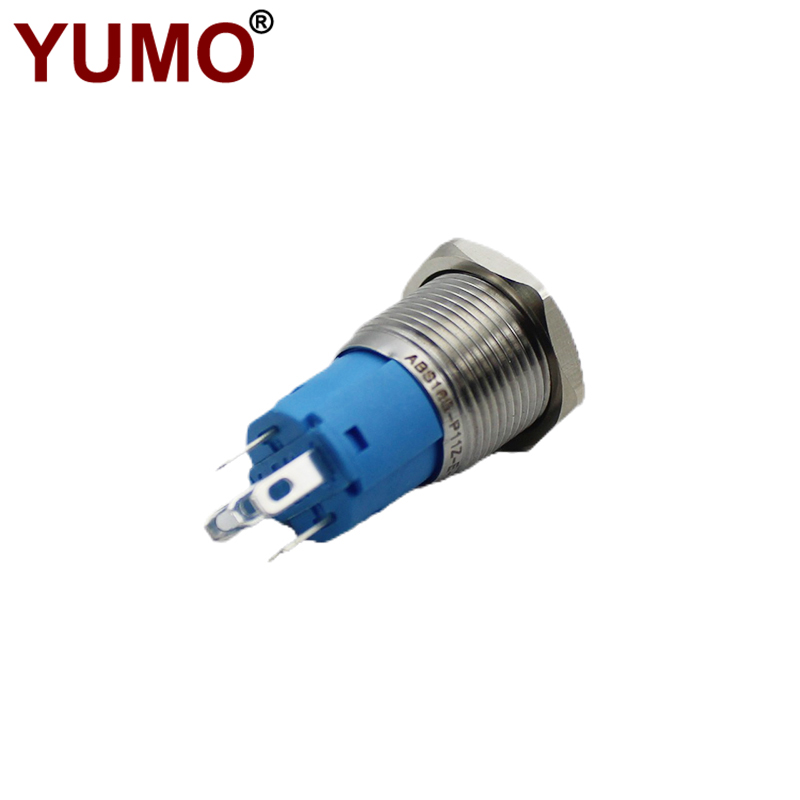

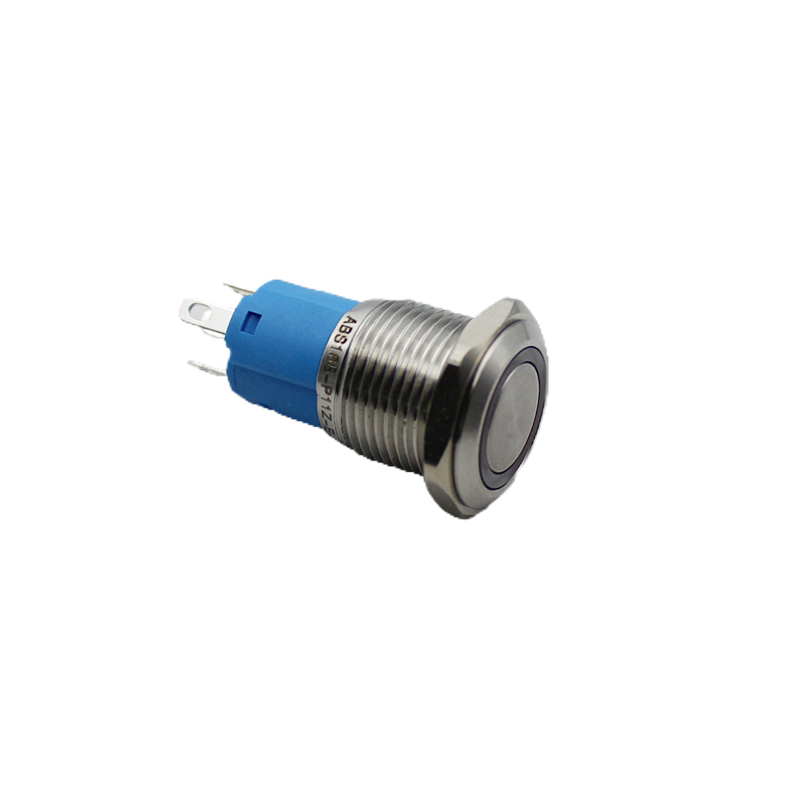

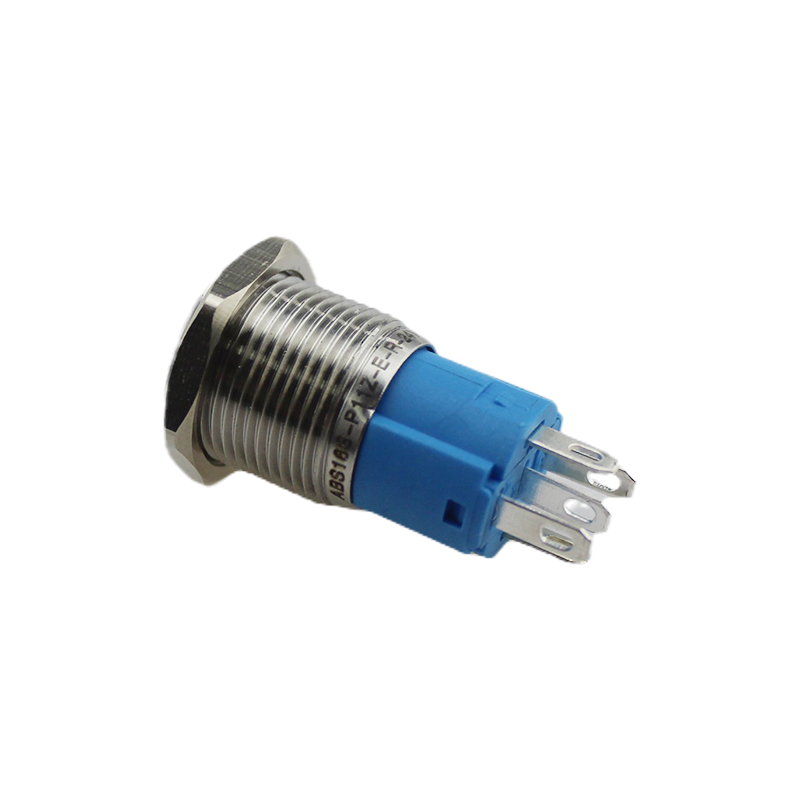

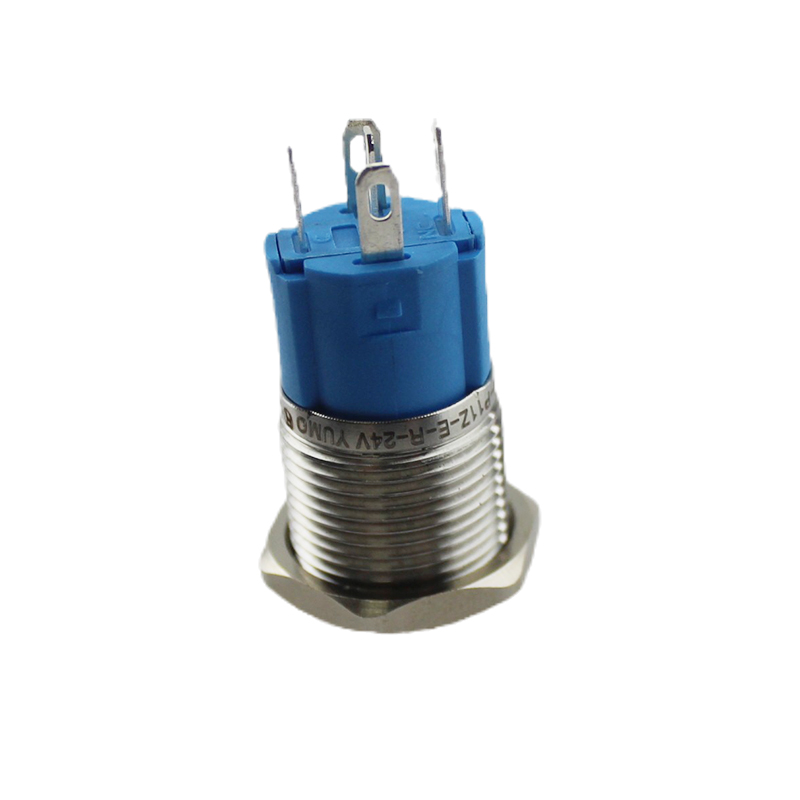

ABS16S-P11Z-E-R-24 16mm metal push button
Metal Switch Features:
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
Switching Operation | |||
Type | Diagram | sign | Explanation |
1NO |  |  | Double breakpoint slow moving contact switch with two terminals |
1NO 1NC |  |  | Single breakpoint snap change contact switch with three terminals |
1NO 1NC |  |  | Double breakpoint snap change contact switch with four terminals |
Switching Operation | ||||||
Rated insulation Voltage | 250 | |||||
Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
Rated voltage | 12V | 24V | 110V | 220V | ||
Rated | AC | Resistive load | - | - | 5A | 3A |
Inductive load | - | - | 3A | 2A | ||
DC | Inductive load | 5A | 5A | 1A | 0.5A | |
Inductive load | 2A | 2A | 0.2A | 0.1A | ||
Contact material | Silver Plated Gold | |||||
Lamp Ratings | |
Lamp Type | LED lamp(AC/DC) |
Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
Rated Current | About 15mA |
LED Color | R G Y O B W P |
Life | 40000hours |
Metal push buttons are a type of user interface component that are commonly used in a range of electronic devices and machinery. These buttons are typically made from high-quality metals such as stainless steel, brass, and aluminum, which give them excellent durability and resistance to wear and tear in harsh environments.
One of the major advantages of metal push buttons is their tactile feedback. When a user pushes a metal button, they are able to feel a distinct “click” which confirms that the button has been activated. This feature is critical for many industrial environments where operators may be wearing gloves or working in low light conditions where visual feedback is limited.
In addition to their durability and tactile feedback, metal push buttons are also highly customizable. They can be engraved, etched, or printed with a range of designs, text, and symbols to meet specific user requirements. This flexibility allows manufacturers to tailor the design of their products to the needs of their customers, making them highly versatile and functional.
Another important aspect of metal push buttons is their resistance to vibrations and shock. These buttons are designed to withstand impacts and rough handling, which makes them ideal for use in machinery and equipment that may experience constant vibration or heavy impacts.
Overall, metal push buttons are a reliable, versatile, and highly functional user interface component that are used in a wide range of applications across various industries. Their durability, tactile feedback, and customization options make them indispensable for manufacturers who require high-performing products that can withstand harsh conditions and environments.
