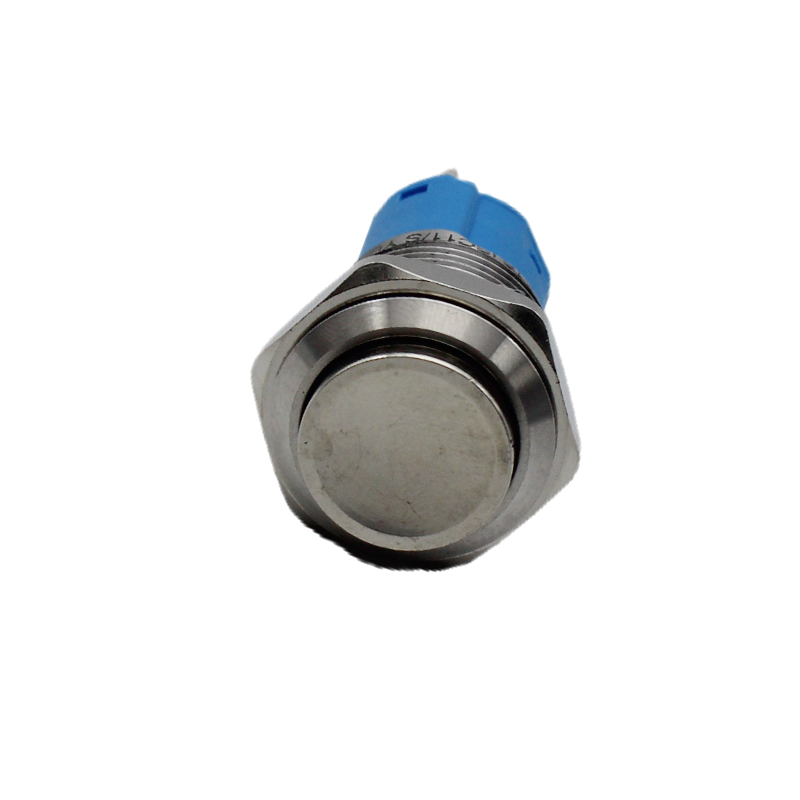

YUMO LA16JSC11S 16mm momentary push button stainless steel push switch pin terminal concave switch

Features: 16mm diameter. Switch Rating:3A/250VDC. Contact Configuration:1NO 1NC/2NO 2NC. Operation Type:Momentary/Alternate The Front Shape: Flat Round. The Crust Material:Stanless Steel/Brass(Nickel Plated ). Ring lluminated. IP Degree:IP40/67.
  • LA16JSC11S

  • YUMO

  • 40

Availability:

YUMO LA16JSC11S 16mm momentary push button stainless steel push switch pin terminal concave switch


Features:

  • 16mm diameter

  • Switch Rating:3A/250VDC

  • Contact Configuration:1NO 1NC/2NO 2NC

  • Operation Type:Momentary/Alternate

  • The Front Shape: Flat Round

  • The Crust Material:Stanless Steel/Brass(Nickel Plated )

  • Ring lluminated

  • IP Degree:IP40/67



Dimemsions:

LA16JSF11-E



Technical Specifications

Specification LA16JSF-E
The Front Shape Flat Round
Terminal Type Pin Terminal(1.8x0.4mm)
Switching NO.3
Max.Switch Rating lth:3A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~10mm
Tortque 5~ 14Nm
Operation Pressure 2.5~4N
Operation Distance About 2.8mm
IP Degree IP40/IP67
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Stee/Brass(Nickel Plated)
Base PBT
LED Specl Type Dot lluminated(LED)
Rated voltage
6V/12V/24V/36V/110V/220V
Color
 R    G    Y    O    B   W
Life
40000 hours
