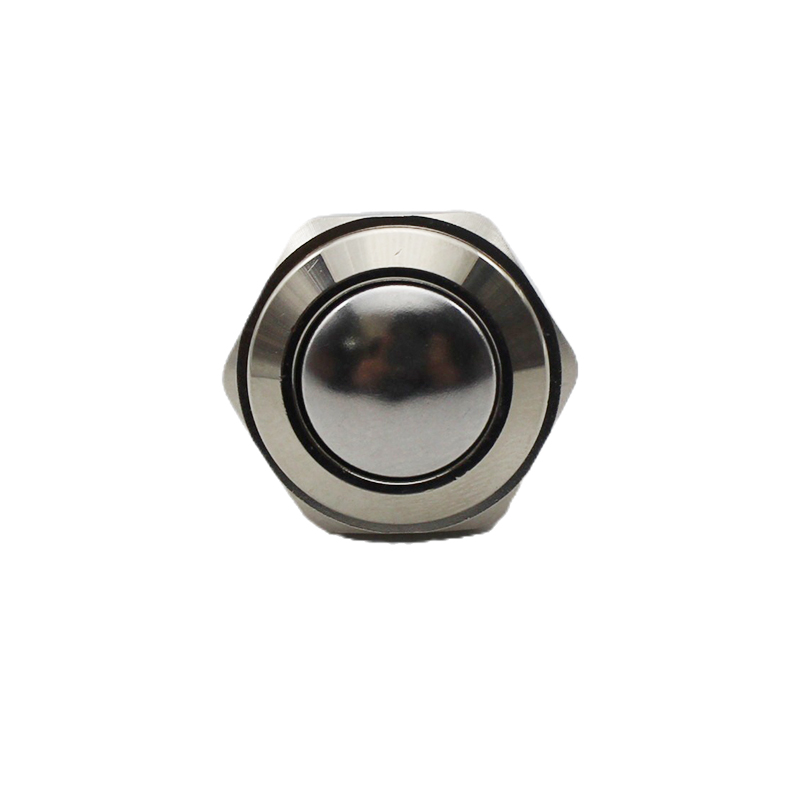

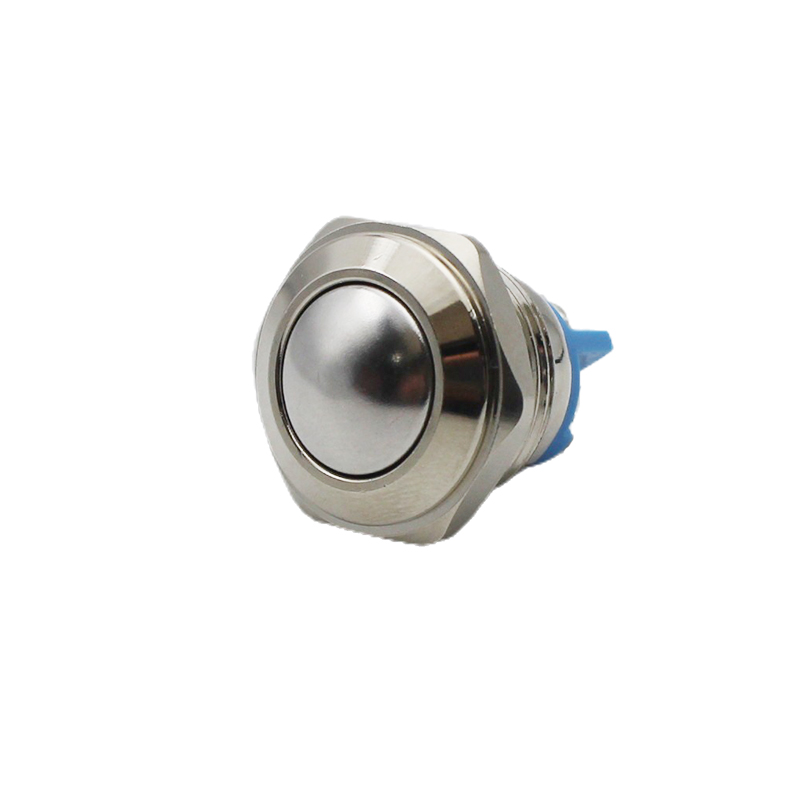

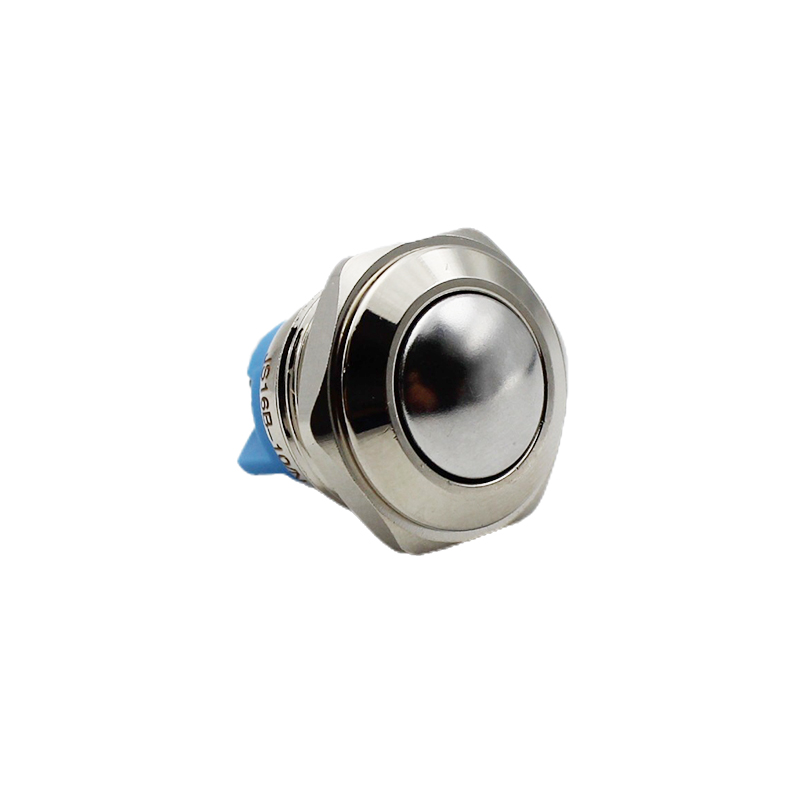

YUMO JS16B-10N 16mm metal push button domed momentary push button plated brass with screw terminals

Features 16mm diameter Switch Rating:2A/36VAC Contact Configuration:1NO Operation Type:Momentary The Front Shape:Domed The Crust Material:stainless Steel IP Degree:IP65
  • JS16B-10/N

  • YUMO

Availability:

Features

  • 16mm diameter

  • Switch Rating:2A/36VAC

  • Contact Configuration:1 NO

  • Operation Type:Momentary

  • The Front Shape:Domed

  • The Crust Material:stainless Steel

  • IP Degree:IP65

Dimensions


JS16B-10N (2)JS16B-10N (3)JS16B-10N (4)


Technical Specifications

Specification JS16B-10/N
The Front Shape Domed
Terminal Type Screw Termlnls
Switching 1 NO
Max.Switch Rating 2A/36VDC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55
Mechanical life 1,000,000cycles
Eictical life 200, 000cycles
Panel Thickness 1~6mm
Tortque 5~ 14Nm
Operation Pressure About 4N
Operation Distance About 1.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PBT
