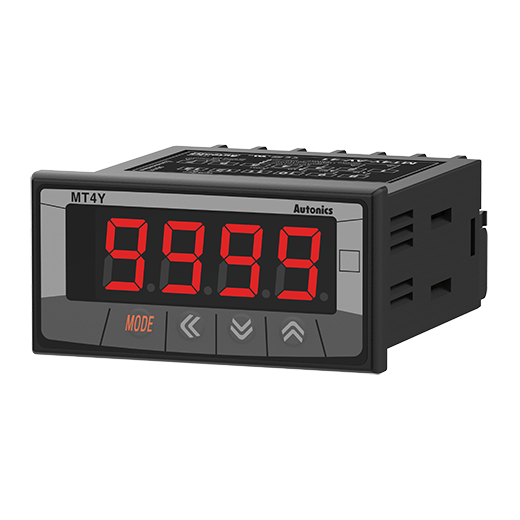

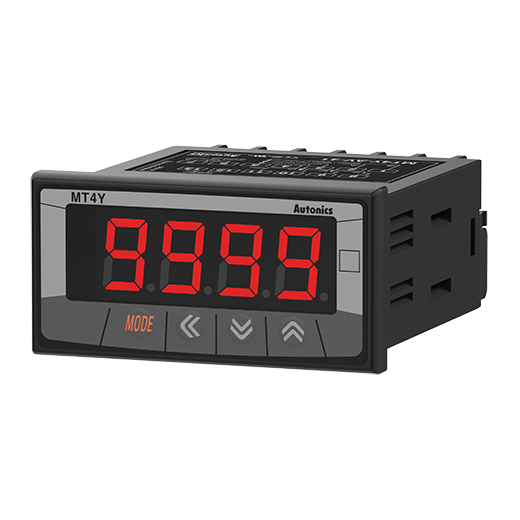

MT4Y-DA-4N
AUTONICS
Availability: | |
---|---|
Description:
Display method | 4-digit 7-segment LED |
---|---|
Character height | 14.2mm |
Max. display Range | -1999 to 9999 |
Measurement | DC current |
Input specification | 0-5A, 0-2A, 0-500mA, 0-200mA, 0-50mA, 4-20mA, 0-5mA, 0-2mA |
Power supply | 100-240VAC~ 50/60Hz |
Output_Main Output(Comparative Value) | Indicator |
Display accuracy | • 23℃±5℃ - F.S. ±0.1% rdg ±2-digit F.S. +0.3% rdg ±3-digit max. only for 5A terminal. • -10℃ to 50℃ - F.S. ±0.5% rdg ±3-digit |
Max. allowable input | 110% F.S. for each measured input range |
A/D conversion method | ΣΔ (Sigma Delta) ADC |
Sampling cycle | 50ms |
Environment_Ambient temperature | -10 to 50℃, storage: -20 to 60℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
Weight | Approx. 213.5g (approx. 134g) |
