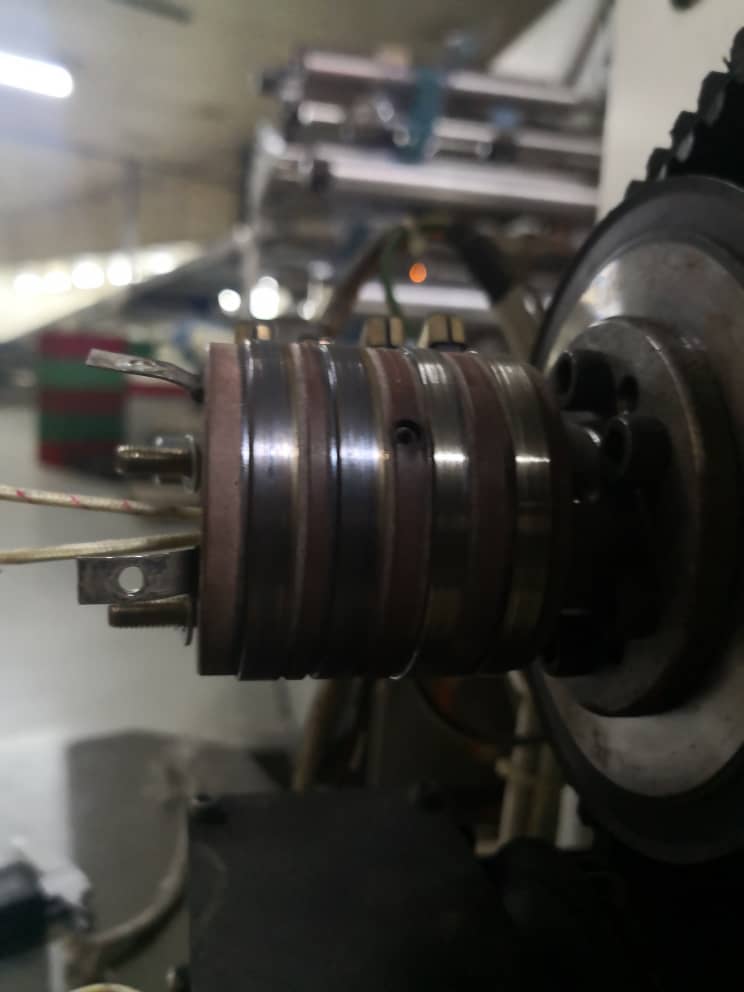

Traditional collector ring

Traditional collector ring

The collector ring plays a role in input/output current and commutation in the motor, and the wear resistance of the collector ring directly affects the service life of the motor.

1. The copper ring is precision machined by casting copper, with high hardness and low wear resistance.

2. The insulation material is made of epoxy resin and alkali free glass fiber cloth impregnated and cast laminated, which has good insulation performance, compression resistance and impact resistance, resin oil resistance, oxidation resistance, and heat aging resistance.

3. Special specifications can be quickly customized and can be matched with any model at home and abroad. Because the starting resistance can be gradually eliminated, the starting resistance can be appropriately connected in series to achieve the maximum torque of the motor and shorten the starting process.

The copper ring is made of winding cast copper with high hardness, low wear resistance, and high wear resistance. The insulation material is impregnated and formed with epoxy resin and alkali free glass fiber cloth, which has good insulation performance, good compression and impact resistance, resin oil resistance, oxidation resistance, heat resistance, and aging performance;Special specifications can be quickly customized and can be used with any type of machine at home and abroad. Due to the fact that the starting resistor can be gradually cut off, an appropriate series starting resistor can achieve the maximum starting torque of the motor and shorten the starting process.
