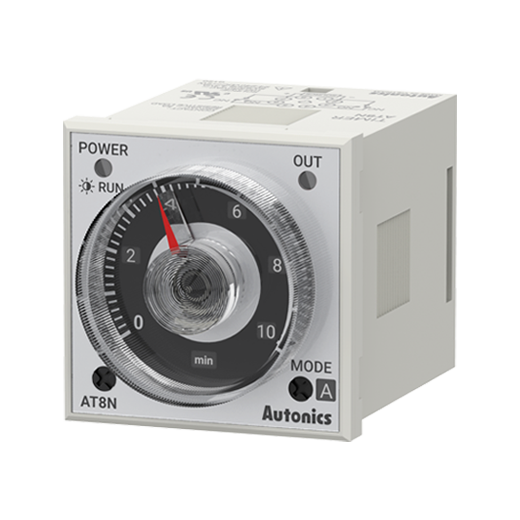

AT8N
AUTONICS
Description:
| Operation method | Time setting |
|---|---|
| Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
| Time operation | POWER ON START |
| Terminal | 8-pin plug |
| Power supply | 100-240VAC~, 24-240VDC  |
| Setting range | 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour |
| Control output | Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
| Approval |   |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 134.12g (approx. 86.71g) |
Description:
| Operation method | Time setting |
|---|---|
| Output Operation | POWER ON DELAY, FLICKER, INTERVAL |
| Time operation | POWER ON START |
| Terminal | 8-pin plug |
| Power supply | 100-240VAC~, 24-240VDC |
| Setting range | 0.05 to 0.5 sec, 0.1 to 1 sec, 0.5 to 5 sec, 1 to 10 sec, 0.05 to 0.5 min, 0.1 to 1 min, 0.5 to 5 min, 1 to 10 min, 0.05 to 0.5 hour, 0.1 to 1 hour, 0.5 to 5 hour, 1 to 10 hour, 5 to 50 hour, 10 to 100 hour |
| Control output | Time-limit SPDT (1c): 2 or Instantaneous SPDT (1c): 1 + Time-limit SPDT (1c): 1 depending on output operation mode |
| Approval | |
| Accessories | Bracket |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH |
| Weight | Approx. 134.12g (approx. 86.71g) |
