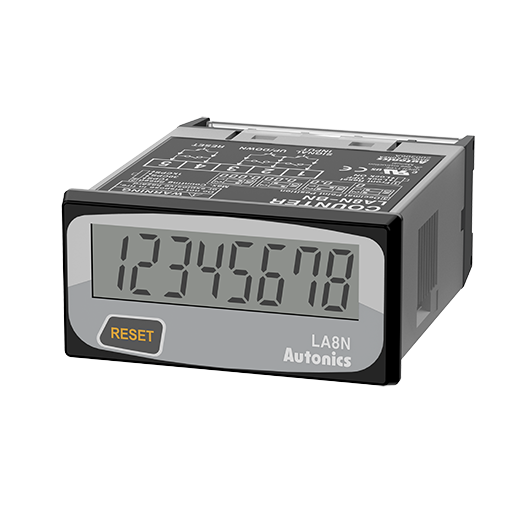

LA8N-BF
Autonics
1
A counter is a device or tool that is used to count or keep track of something. It can be a mechanical, electronic, or digital device, depending on the specific application.
Its accuracy and precision in recording and displaying the count. Counters are designed to ensure that each count is accurately registered and that there are no missing or duplicate counts.
Another important feature of counters is their ability to count at a high speed, making them suitable for applications that require rapid and continuous counting.
Additionally, counters often have a reset function, allowing the count to be cleared back to zero when needed. Some advanced counters also have the ability to store and recall counts, making them useful in situations where data analysis or record-keeping is required. Overall, counters are reliable, efficient, and versatile tools for counting and tracking various items or events in a wide range of industries and applications.
| Display method | 8-digit 7-segment LCD |
|---|---|
| Operation method | Count up |
| Terminal | Terminal block |
| Power supply | Built-in battery(over 7 years) |
| Input Method_Signal | Free voltage input |
| Input Method_Reset | No-voltage input(NPN) |
| Max. Counting Speed | 20 [cps] |
| Min. signal Width | 20ms |
| Control output | Indicator |
| Protection structure | IP66(front panel) |
| Approval |   |
| Accessories | Mounting bracket, Rubber waterproof ring |
| Environment_Ambient temperature | -10 to 55℃, storage: -25 to 65℃ |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Weight | Approx. 96g (approx. 50g) |
