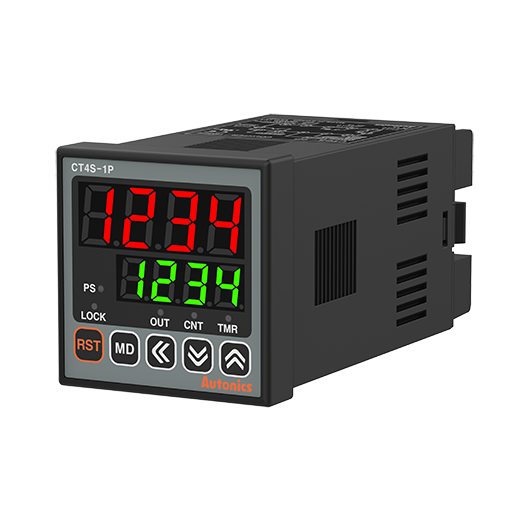

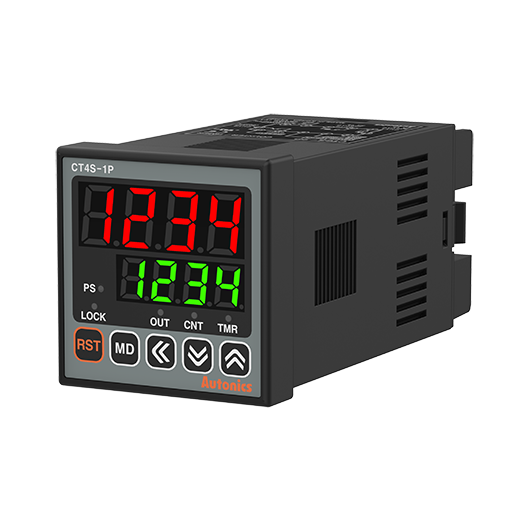

Autonics Counter CT4S-1P2

Counter/Timer, W48xH48mm, 4-Digit, LED, 1 Preset, PNP or NPN Input, Prescale value setting, Relay SPDT(1c) 250VAC 5A, NPN Open Collector Output, 24-48VDC / 24VAC
  • CT4S-1P2

  • AUTONICS

Availability:

Description:

Display method 4-digit 7-segment LED
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Terminal Terminal block
Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply 24VAC~ 50/60Hz, 24-48VDC
Time operation POWER ON START
SIGNAL ON START
External Power Supply Max. 12VDC ±10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type 1-stage preset
Control output_Relay SPDT (1c): 1
Control output_NPN open collector 1
Protection structure IP65(front panel)
Counter_Counting range -999 to 9999
Counter_Scale Decimal point up to third digit
Counter_Min. input signal width RESET: Selectable 1ms/20ms
Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 212g (approx. 159g)
