Product Description

touch screen hmi light

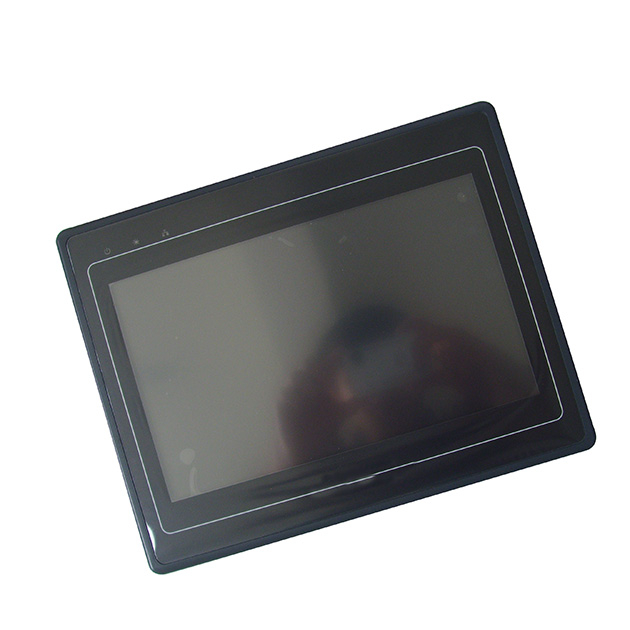

1.HMI (Human Machine Interface) touch screen,touch panel monitor
2.display: 10" TFT Widescreen; TFT,Resolution 800x480,Ethernet port

Specification
RTC:	Built-in
PanelCutout (WXH):	259x201mm
Weight (KG):	Approx 1.4kg
Display
Display:	10" TFT Widescreen
Brightness (cd/m2):	350 cd/m2
ContrastRatio:	300:1
Resolution (WXH):	800x480
BackLight:	LED
BackLight Life Time:	30,000 hr
Touch Panel
Touch Panel Type:	4 wires resistive type
Memory
Storage (RAM):	128
RAM (RAM):	64
RecipeMemory:	128KB+128KB store in Flash Memory.
I/O Port
SD Card Slot:	Yes
USB Host:	USB 1.1 x 1
USB Client:	USB 2.0 x 1
Ethernet Port:	10/100 Base-T
COM Port:	COM1(RS232 / RS485 2W/4W),COM2(RS232) COM3(RS232/RS485 2W)
Audio:	YES
Power
Input Power:	24 ±20% VDC
Power Consumption:	300mA@24VDC
Operation
CE:	Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
UL:	Pending
Voltage Resistance:	500 VAC (1 min)
Isolation Resistance:	Exceed 50MΩ at 500 VDC
Vibration Endurance:	10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure:	IP65 front panel (O ring seal)
Storage Temperature:	-20°~60°C (-4°~140°F)
Operating Temperature:	0°~45°C (32°~113°F)
Operation Humidity:	10-90% RH (non-condense)

Specification
RTC:	Built-in
PanelCutout (WXH):	259x201mm
Weight (KG):	Approx 1.4kg
Display
Display:	10" TFT Widescreen
Brightness (cd/m2):	350 cd/m2
ContrastRatio:	300:1
Resolution (WXH):	800x480
BackLight:	LED
BackLight Life Time:	30,000 hr
Touch Panel
Touch Panel Type:	4 wires resistive type
Memory
Storage (RAM):	128
RAM (RAM):	64
RecipeMemory:	128KB+128KB store in Flash Memory.
I/O Port
SD Card Slot:	Yes
USB Host:	USB 1.1 x 1
USB Client:	USB 2.0 x 1
Ethernet Port:	10/100 Base-T
COM Port:	COM1(RS232 / RS485 2W/4W),COM2(RS232) COM3(RS232/RS485 2W)
Audio:	YES
Power
Input Power:	24 ±20% VDC
Power Consumption:	300mA@24VDC
Operation
CE:	Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
UL:	Pending
Voltage Resistance:	500 VAC (1 min)
Isolation Resistance:	Exceed 50MΩ at 500 VDC
Vibration Endurance:	10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure:	IP65 front panel (O ring seal)
Storage Temperature:	-20°~60°C (-4°~140°F)
Operating Temperature:	0°~45°C (32°~113°F)
Operation Humidity:	10-90% RH (non-condense)

10" TFT hmi 10 inch HMI hmi touch screen touch screen Human Machine Interface
