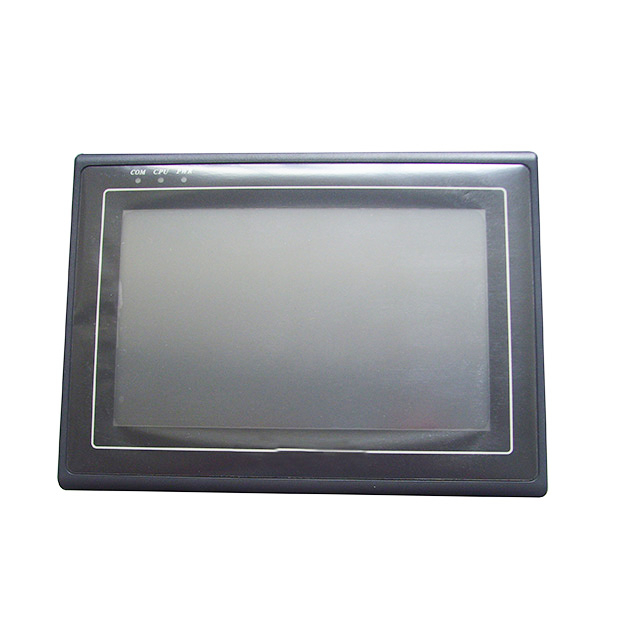

MT8070IH 7 inch Human Machine Interface touch screen HMI

7", 65536color, TFT, 800x480, 300cd/m2, 500:1, LED, CPU 400MHZ, 64MB-DRAM, 129MBFlash
with Eternet Port
  • MT8070IH
  • YUMO
  • YM0000003
  • Name: HMI
  • Inch: 7

1.HMI (Human Machine Interface) touch panel,operation interface
2.display: 7" TFT Widescreen; TFT,Resolution 800x480,Ethernet


RTC: Built-in
PanelCutout (WXH): 192x138mm
Weight (KG): Approx 0.85kg
Display: 7" TFT Widescreen
Brightness (cd/m2): 300 cd/m2
ContrastRatio: 500:1
Resolution (WXH): 800x480
BackLight: LED
BackLight Life Time: 30,000 hr
Touch Panel
Touch Panel Type: 4 wires resistive type
Storage (RAM): 128
RAM (RAM): 64
RecipeMemory: 128KB+128KB store in Flash Memory.
I/O Port
SD Card Slot: Yes
USB Host: USB 1.1 x 1
USB Client: USB 2.0 x 1
Ethernet Port: 10/100 Base-T
COM Port: COM1(RS232 / RS485 2W/4W),COM2(RS232) COM3(RS232/RS485 2W)
Audio: YES
Input Power: 24 ±20% VDC
Power Consumption: 250mA@24VDC
CE: Compilies with EN 55022:2006,Class A , EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005 standards
UL: Pending
Voltage Resistance: 500 VAC (1 min)
Isolation Resistance: Exceed 50MΩ at 500 VDC
Vibration Endurance: 10 to 25 Hz (X,Y,Z direction 2G 30minutes)
Protection Structure: IP65 front panel (O ring seal)
Storage Temperature: -20°~60°C (-4°~140°F)
Operating Temperature: 0°~45°C (32°~113°F)
Operation Humidity: 10-90% RH (non-condense)
