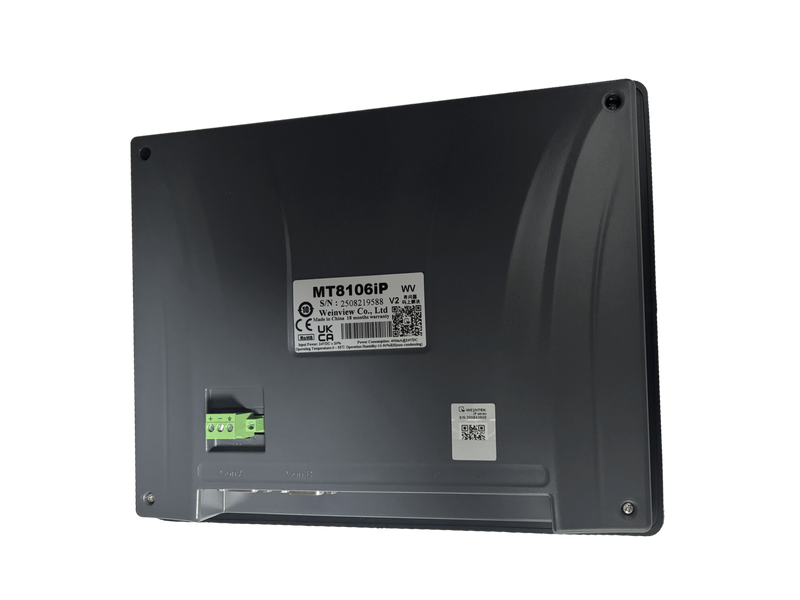

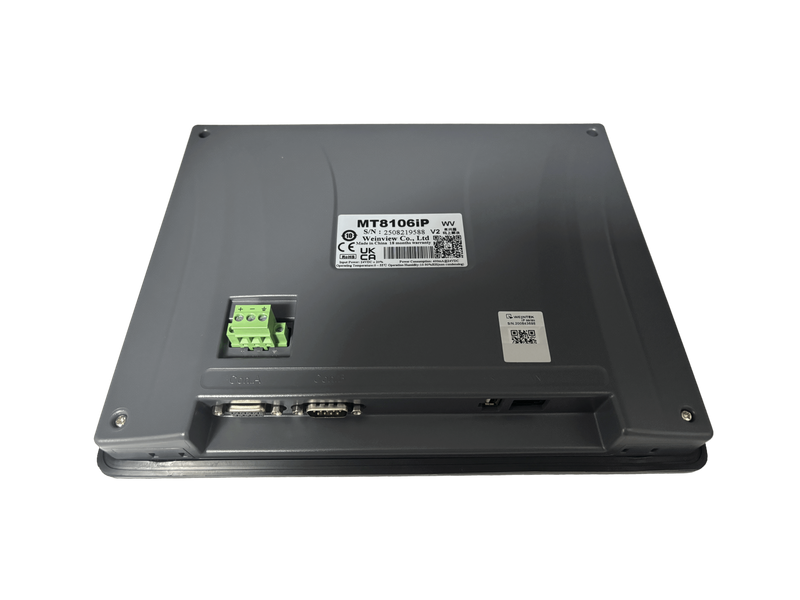

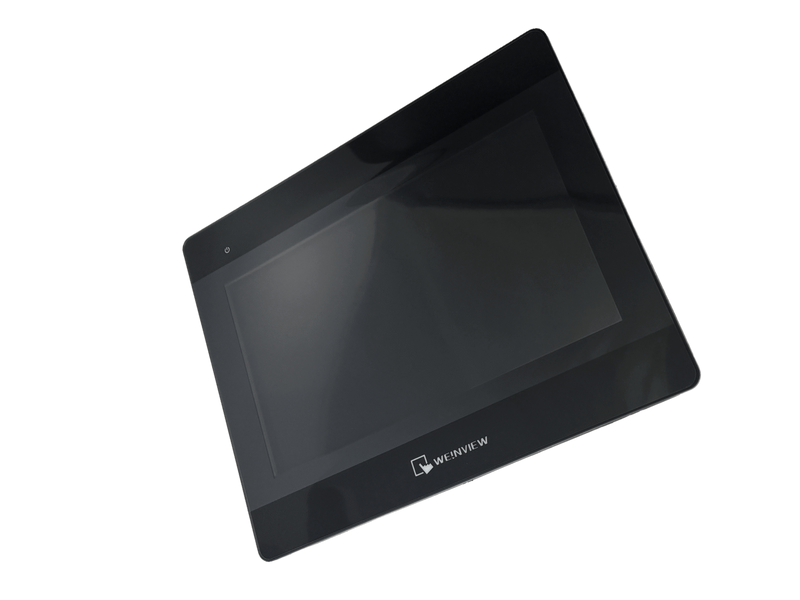

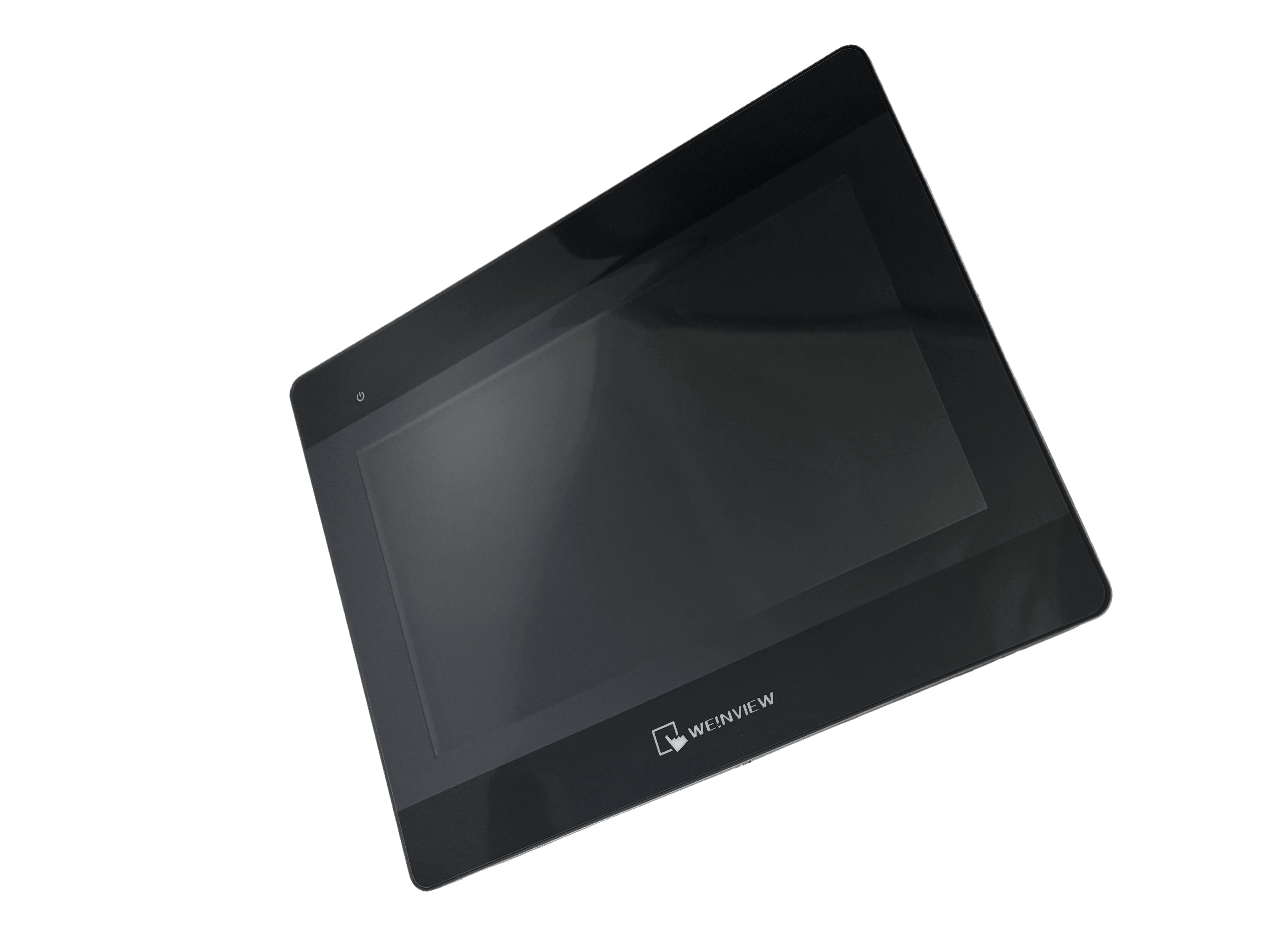

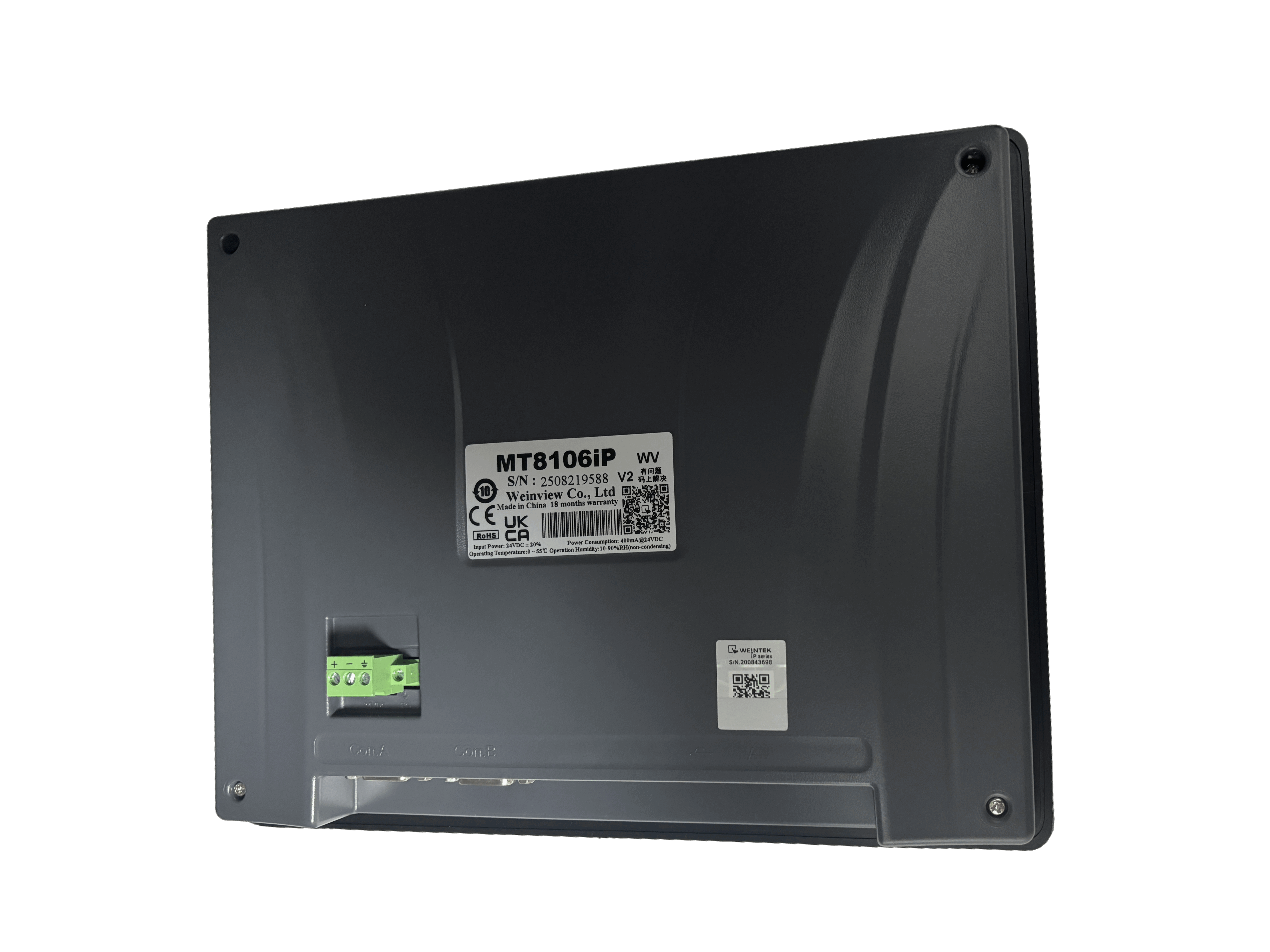

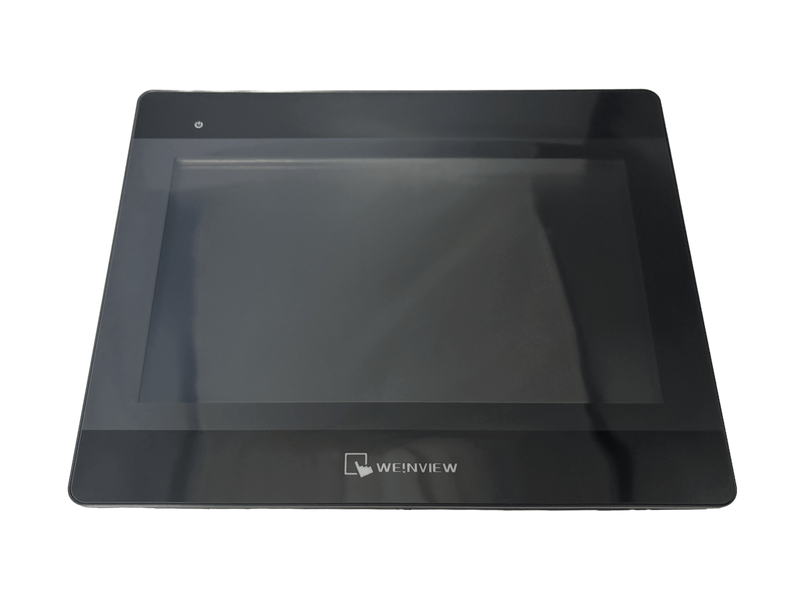

MT8106iP Weinview HMl with 10.1"inch TFT Display

size：36*25.5*7.8cm

weight：1.314kg

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Installation Instructions
1 Installation Overview This document is only an installation manual. For complete specifications and operation methods, please refer to the data sheet, catalog, and Yi Jianlian user manual. Please pay attention to all warnings and alerts on this device.
Installation environment: Protection regulations: This series of human-machine interfaces comply with NEMA4 protection regulations (only applicable indoors). This series of human-machine interfaces has been tested and proven to comply with the EU CE electrical certification standards, which means that the product's electrical circuit design can resist electrical noise interference in all situations, but this does not guarantee interference. The correct wiring and grounding methods are necessary to ensure proper use. (1) In order to ensure proper use, please avoid installing the E0I0 interface product in environments with strong mechanical vibrations. It is prohibited to use it in places with explosive hazards, such as the presence of flammable gases, vapors, or dust. It is prohibited to install in acidic or SO2 gas environments. This product needs to be installed vertically on a flat surface and can be used in pollution level 2 environments and dry explosive environments. Relative humidity: 10%~90% (non condensing) Suitable for altitudes (atmospheric pressure) below 3000 meters (9842.52 feet) and atmospheric pressure of 70.1 kilopascals. Intellectual property level
Electrical environment
Installation environment
Please use dry cloth to clean IP 65, and it is forbidden to use liquid or spray type cleaners. If this product is used in a manner not mentioned by the manufacturer, it may damage the protective measures provided by the manufacturer for this product.
Cleaning precautions
Wange Dang Ai alkaline anthracene stun rape surgery
Sister Bian Kuaiju's research
2 Component Description
Unpack and inspect the human-machine and all accessories. If any damage is found, please contact your supplier. Attention: During installation, please place the panel on a stable surface. If accidentally dropped, it may cause damage. (1) Installation manual A4 double-sided * 1 (2) Human machine interface * 1 (3) Power terminal block * 1 (4) Double hook fixing bolt group * 1
3 Installation Instructions
Please use a control box with sufficient strength and rigidity. Installation hole size: 260mmx202mm. Place this product into the already opened installation holes on the control box, and clip the fixing bolts (attached in the packaging box) into each bolt fixing hole around the product shell from the back of the control box. Locking torque value: 26~3.9 pounds (to achieve waterproof effect and avoid deformation of the upper cover).
Please plan appropriate space around the human-machine interface and inside the casing to facilitate air circulation and wiring. Taking into account the heat generated by other devices in the casing, human-machine interface
