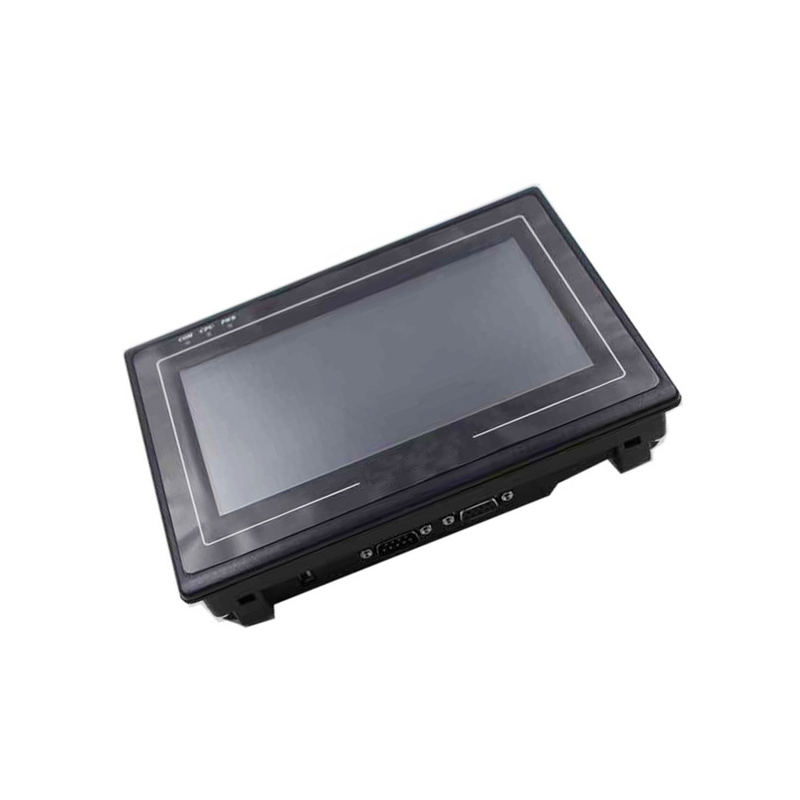

MT6070iH 7 inch Human Machine Interface touch screen HMI

7", 65536color, TFT, 800x480, 300cd/m2, 500:1, LED, CPU 400MHZ, 64MB-DRAM, 128MBFlash
  • MT6070iH
  • YUMO
  • YM0000003
  • Name: HMI
  • Inch: 7

HMI (Human Machine Interface) touch screen,plc operator interface
7'' 65536 color TFT LCD,800x480,support USB2.0 download cable





Specifications:



 Display

 7" TFT Widescreen

 Resolution

800x480

 Brightness (cd/m²)

300cd/m2

 Contrast Ratio

500:1

 Back Light

 LED

 Life Time

30,000 hr

 Touch Panel Type

 4 wires resistive type

 Storage(MB)

128

uot;> RAM(MB)

 64

 Processor

32 bit RISC CPU 400 MHz

 SD Card Slot

Yes

 USB Host

USB 1.1 x 1

 USB Client

USB 2.0 x 1

 Ethernet Port

10/100 Base-T

 COM Port

COM1 (RS232 / RS485 2W/4W),COM(RS232)
COM3(RS232/RS485 2W)

 Audio

N/A

 RTC

Yes

 Input Power

24± 10% VDC

 Power Consumption

250mA@24VDC

 Panel Cutout (mm)

 192x138mm

 Weight(Kg)

Approx 0.85kg
