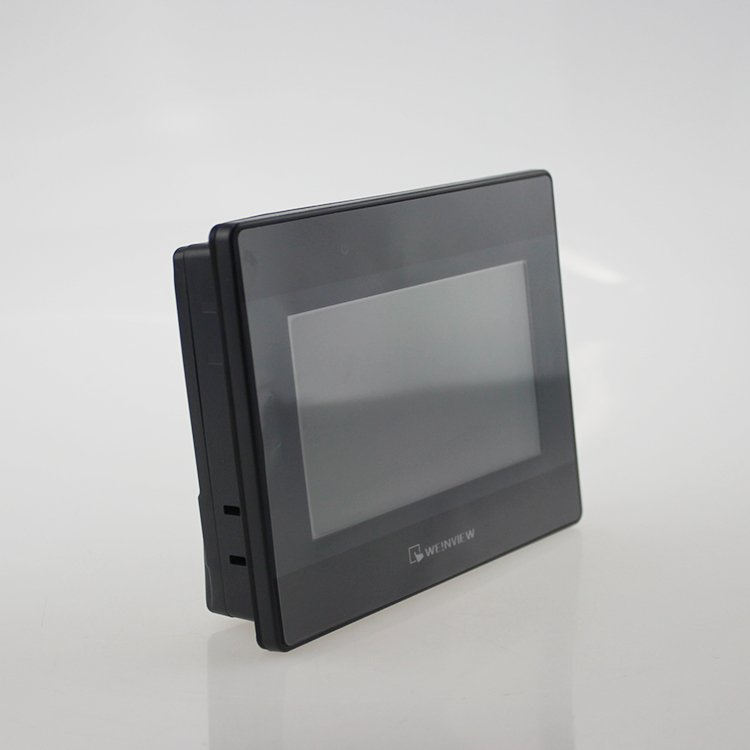

MT6050i
YUMO
YM0000003
| Display | Display | 4.3 TFT |
| Resolution | 480 x 272 | |
| Brightness (cd/m²) | 400 | |
| Contrast Ratio | 500:01:00 | |
| Backlight Type | LED | |
| Backlight Life Time | >30,000 hrs. | |
| Colors | 16.7M | |
| Touch Panel | Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash | 128 MB |
| RAM | 128 MB | |
| Processor | 32 bits RISC Cortex-A8 600MHz | |
| I/O Port | USB Host | USB 2.0 x 1 (Micro USB) |
| USB Client | N/A | |
| Ethernet | 10/100 Base-T x 1 | |
| COM Port | COM 1: RS-232/RS-485 2W/4W | |
| COM3: RS-485 2W | ||
| RTC | Built-in | |
| Power | Input Power | 24±20%VDC |
| Power Consumption | 400mA@24VDC | |
| Power Isolation | Built-in | |
| Voltage Resistance | 500VAC (1 min.) | |
| Isolation Resistance | Exceed 50M at 500VDC | |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) | |
| Specication | PCB Coating | N/A |
| Enclosure | Plastic | |
| Dimensions WxHxD | 128 x 102 x 32 mm | |
| Panel Cutout | 119 x 93 mm | |
| Weight | Approx. 0.25 kg | |
| Mount | Panel mount | |
| Environment | Protection Structure | NEMA4 /IP65 Compliant Front Panel |
| Storage Temperature | -20° - 60°C (-4° - 140°F) | |
| Operating Temperature | 0° - 50°C (32° - 122°F) | |
| Relative Humidity | 10% - 90% (non-condensing) | |
| Certficate | CE | CE marked |
| Software | EasyBuilder Pro |
