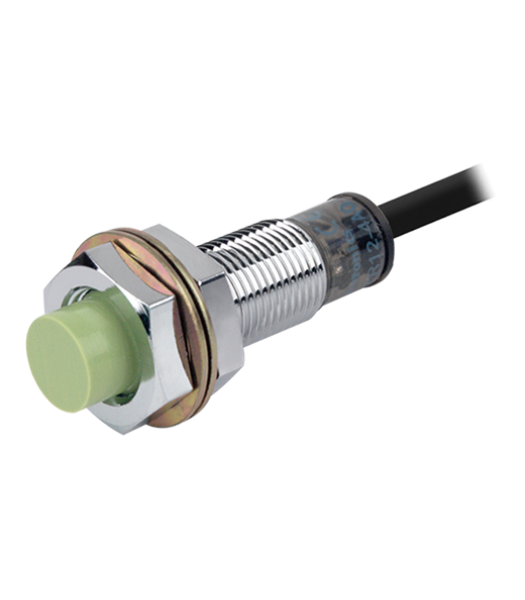

PR12-4AC
Autonics
Availability: | |
---|---|
Description:
Wire type and power | AC 2-wire type 100-240VAC~ |
---|---|
Sensing side diameter | M12 |
Sensing distance | 4mm |
Installation | Non-shield(non-flush) |
Standard sensing target | 12×12×1mm(iron) |
Response frequency | 20Hz |
Current specification | Leakage current: Max. 2.5mA |
Control output | Normally Closed |
Material | Brass(nickel plated) |
Cable Standard/material | Standard cable |
Protection structure | IP67 |
Approval | |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80? |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 10% of sensing distance |
Residual voltage | Max. 10V |
Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
Weight | Approx. 84g(approx. 66g) |
Description:
Wire type and power | AC 2-wire type 100-240VAC~ |
---|---|
Sensing side diameter | M12 |
Sensing distance | 4mm |
Installation | Non-shield(non-flush) |
Standard sensing target | 12×12×1mm(iron) |
Response frequency | 20Hz |
Current specification | Leakage current: Max. 2.5mA |
Control output | Normally Closed |
Material | Brass(nickel plated) |
Cable Standard/material | Standard cable |
Protection structure | IP67 |
Approval | |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80? |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 10% of sensing distance |
Residual voltage | Max. 10V |
Insulation type | Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: 1kV) |
Weight | Approx. 84g(approx. 66g) |
