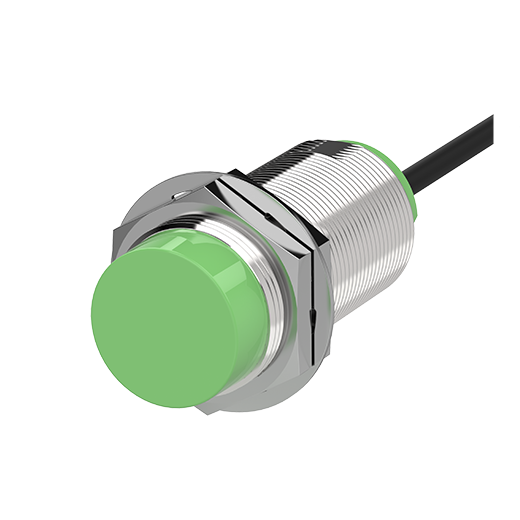

Autonics Proximity Sensor CR30-15DP

Sensor, Capacitive Prox, 30mm Round, Non-Shielded, DC, PNP, NO, 3 Wire, 10-30 VDC
  • CR30-15DP

  • Autonics

Availability:

Description:

Wire type and power DC 3-wire type 12-24VDC
Sensing side diameter M30
Sensing distance 15mm
Standard sensing target 50×50×1mm(iron)
Response frequency 50Hz
Current specification Current consumption: Max.15mA
Control output PNP Normally Open
Material Brass(nickel plated)
Protection structure IP65
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 20% of sensing distance
Weight Approx. 243g(approx. 206g)
