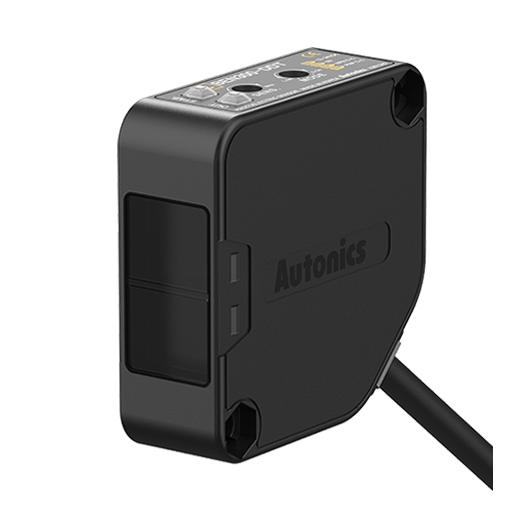

BEN300-DDT
Autonics
Availability: | |
---|---|
Description:
Sensing type | Diffuse reflective type |
---|---|
Sensing distance | 300mm |
Sensing target | Opaque, Translucent material |
Light source | Infrared LED(940nm) |
Response time | Max. 1ms |
Power supply | 12-24VDC ±10%(ripple P-P: max. 10%) |
Current consumption | Max. 50mA |
Sensitivity adjustment | Sensitivity adjuster |
Operation mode | Light ON/Dark ON(set by switch) |
Control output | NPN, PNP open collector simultaneous output |
Connection type | Cable type(Ø5, 2m) |
Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
Protection structure | IP50 |
Approval | |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Hysteresis(distance) | Max. 20% at sensing distance |
Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
Weight | Approx. 187g |
