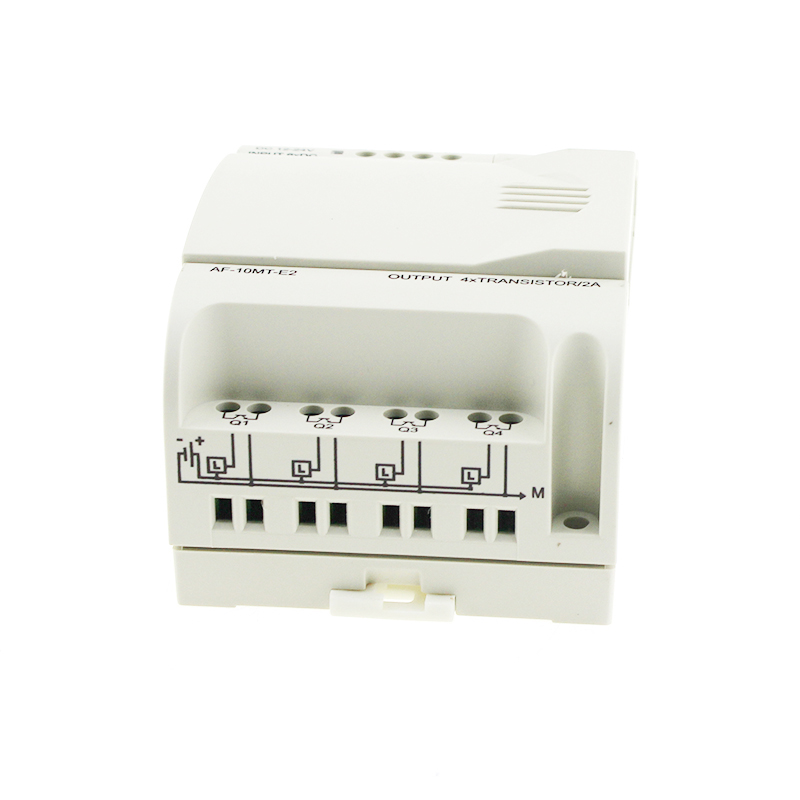

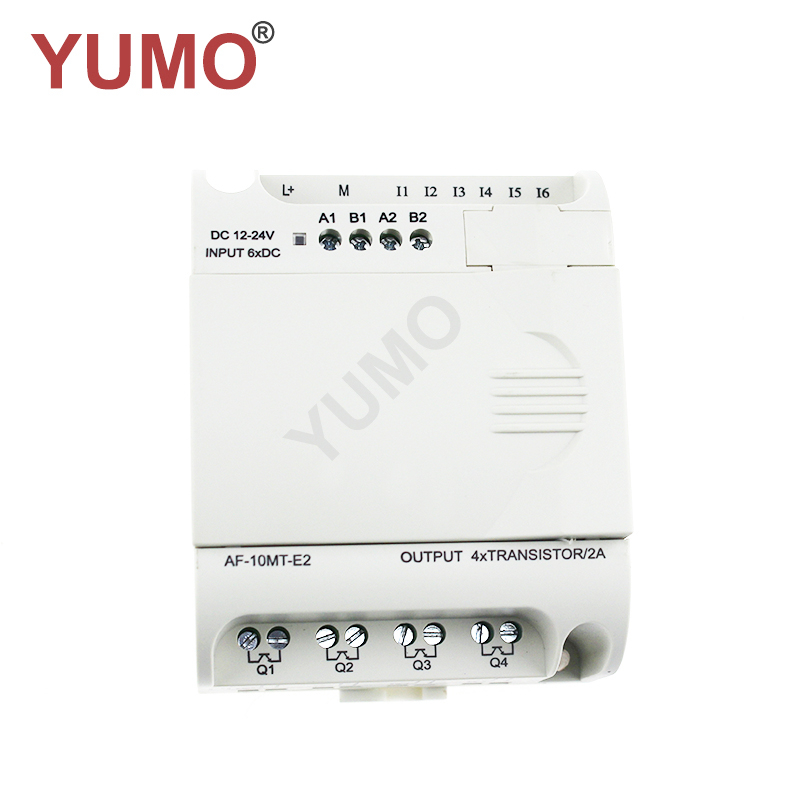

DC power supply, with digital input, 6 points DC input, 4 points transistor output PLC Programmable Logic Controller :

Performance&Features
This model is a DC power supply, with digital input, 6 points DC input, 4 points transistor output
Exquisite and compact design
Multi-functional, easy operating, convenient, easy learning
Technical Index
Operation temperature：：-20℃-70℃	Timers ：127
Storage/Transportation -40℃-70℃	Counters ：127
Protection：IP20	Function blocks : 127
Interference Regulation: EN55011(B Class)	RTC time intervals：127
RTC accuracy: MAX ±5S/day	Storage capacity：64K
Certificate：CE	Insulation Intensity: IEC1131
Installation: Use a standard DIN rail or screw for installation	Dimensions907158 （Unit：mm ）

Power supply
Rated voltage：DC12/24V	ain voltage operation range：DC10-28V
AC/DC24V consumption： Typical 60mA	Output full-load)：Typical 1.5W

Digital input
Signal 0：AC 0-5V	Input current：<0.5mA
Signal 1：DC 10-24V	Input current：<1mA

Digital output
Output type: Transistor output （equivalent NPN）	Output voltage：≤DC80V
Output current: MAX 2A

FAB Intelligent Controller Series is a new programmable controller launched by YUMO, with the programming by FBD (Function Block Diagram) , which is simpler and easier to learn than the conventional PLC (ladder diagram and instruction). In the design concept of YUMO FAB series products, traditional separated controller of PLC is combined with the writer on which the program can be written directly by using the function keys on the LCD front panel in order to reduce the cost and bring convenience to users. YUMO FAB is very compact and light-weighted, especially suitable for internal installation usage.

In addition, FAB intelligent controller series can perform the local and remote Internet communication and monitoring. And FAB can be used with voice module to perform telephone remote control, voice prompting, auto-dialing and other functions. At present, the YUMO FAB is widely used in various areas such as industry, agriculture and automatic house control. It can be used almost everywhere

Powerful Network Function

Short distance network wiring (Within 1.2KM)

plc controller
Programmable Logic Controller
PLC

Item	Code	Description
Item	Code	Description
1	AF-10MR-A(with LCD)	85V-240VAC, 6 points AC input 4 points relay output
2	AF-10MR-A(without LCD)	85V-240VAC, 6 points AC input 4 points relay output
3	AF-10MR-D(with LCD)	DC12/24V, 6points DC input 4 points (with analog input) relay output
4	AF-10MR-D(without LCD)	DC12/24V, 6points DC input 4 points (with analog input) relay output
5	AF-10MR-E(with LCD)	DC12/24V, 6 points DC input 4 points relay output
6	AF-10MR-E(without LCD)	DC12/24V, 6 points DC input 4 points relay output
7	AF-10MT-D(with LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
8	AF-10MT-D(without LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent NPN)
9	AF-10MT-GD(with LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
10	AF-10MT-GD(without LCD)	DC12/24V, 6points DC input 4 points transistor output(exuivalent PNP)
11	AF-10MT-E(with LCD)	DC12/24V,6 points DC input 4 points electronic transistor output
12	AF-10MT-E(without LCD)	DC12/24V,6 points DC input 4 points electronic transistor output
13	AF-20MR-A(with LCD)	85V-240VAC ,12 points AC input 8 points relay output
14	AF-20MR-A(without LCD)	85V-240VAC ,12 points AC input 8 points relay output
15	AF-20MR-D(with LCD)	DC12/24V,12 points DC input 8 points (with analog input) relay output
16	AF-20MR-D(without LCD)	DC12/24V,12 points DC input 8 points (with analog input) relay output
17	AF-20MR-E(with LCD)	DC12/24V ,12 points DC input 8 points relay output (without analog input)
18	AF-20MR-E(without LCD)	DC12/24V ,12 points DC input 8 points relay output (without analog input)
19	AF-20MT-E(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
20	AF-20MT-E(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
21	AF-20MT-D(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
22	AF-20MT-D(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent NPN)
23	AF-20MT-GD(with LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
24	AF-20MT-GD(without LCD)	DC12/24V,12points DC input 8 points transistor output(exuivalent PNP)
25	AF-C232	Cable for FAB and PC Modem for programming
26	AF-C485	Interface between 485bus and FAB for network monitor
27	AF-CMP	The cable connect to the telephone module port "TO PC'
28	AF-COPY	Copy module
29	AF-D232	the cable connecting FAB and PC (frontispiece plug type)
30	AF-MUL-D	Voice module to realize voice function(DC POWER)
31	AF-DUSB	the interface between FAB and PC USB port (frontispiece plug type)
32	AF-LCD	Removable LCD clip in screen for easy programming
33	AF-M232	Interface between FAB and MODEM for remote control and programming
34	AF-MUL	Voice module to realize voice function(AC POWER)
35	AF-P485	Interface between 485bus and PC for network function
36	AF-S485	Interface is the connector between RS232 and RS485 (DIN installation).
37	AF(SR)-USB	USB/RS232 convertor (DIN installation)
38	SP-05AL	Input: 110/220VAC Output: Voltage :5VDC Current :14A Din rail type
39	SP-05AS	Input: 110/220VAC Output: Voltage :5VDC Current :7A Din rail type
40	SP-12AL	Input: 110/220VAC Output: Voltage :12VDC Current :6A Din rail type
41	SP-12AS	Input: 110/220VAC Output: Voltage :12VDC Current :3A Din rail type
42	SP-24AL	Input: 110/220VAC Output: Voltage :24VDC Current :3A Din rail type
43	SP-24AS	Input: 110/220VAC Output: Voltage :24VDC Current :1.5A Din rail type
44	SR-12MRAC	100-240VAC 8 Points AC input, 4 points relay output
45	SR-12MRDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points relay output
46	SR-12MTDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(NPN)
47	SR-12MGDC	DC12/24V 8 points DC input (with 6 points analog ) , 4 points transistor output(PNP)
48	SR-20ERA	100-240VAC 12 AC input, 8 points relay output, 20 points extended module
49	SR-20ERD	DC12/24V 12 points DC input , 8 points relay output, 20 points extended module
50	SR-20ETD	DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (NPN)
51	SR-20EGD	DC12/24V 12 points DC input , 8 points transistor output ,20 points extended module (PNP)
52	SR-22MRAC	100-240VAC 14 Points AC input, 8points relay output
53	SR-22MRDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points relay output
54	SR-22MTDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(NPN)
55	SR-22MGDC	DC12/24V 14 points DC input (with 8 points analog ) , 8 points transistor output(PNP)
56	SR-AUD	The recording microphone and the wires between the sound card and the SR-VPA/SR-VPD
57	SR-CP	Programmable cable can edit,analog, monitor from PC to Super Relay
58	SR-EANT	Long connecting antenna of SR-RCA and SR-RCD
59	SR-ECBA	AC type, to remotely connect the machine and the extended module
60	SR-ECBD	DC type, to remotely connect the machine and the extended module
61	SR-EHC	Connection set of SR-HMI, remotely connect SR machine and SR-HMI 1.5m cable
62	SR-HMI-B	monitor operator panel
63	SR-LED	simple LED panel
64	SR-RCA	100-240VAC remote control receiver module
65	SR-RCD	DC12/24V remote control receiver module
66	SR-TC	DC3V remote control emitter
67	SR-USB	USB/RS232 convertor (DIN installation)
68	SR-DUSB	the interface between SR and PC USB port (frontispiece plug type)
69	SR-VPA	100-240VAC phone voice module
70	SR-VPD	DC12/24V phone voice module
71	SR-WRT	Programming panel
72	SR-TP	for connecting SR PLC with text panel SH-300
73	SR-MC	MODBUS module
74	SR-MCA	MODBUS module
75	SR-MCD	MODBUS module
76	SH-300	4.3"STN - LCD Display screen DC12/24VA
77	AR1520	convert RS-232 signals into isolated RS-422 or RS-485
78	AR1520U	Convert USB to RS-232/422/485 terminal
79	AR1521	convert RS-232 signals into isolated RS-422 or RS-485
80	AR1521U	Convert USB to RS-232/422/485 terminal
81	C2400	Timer,counter,frequency meter,tachometer
82	software	PLC software CD
