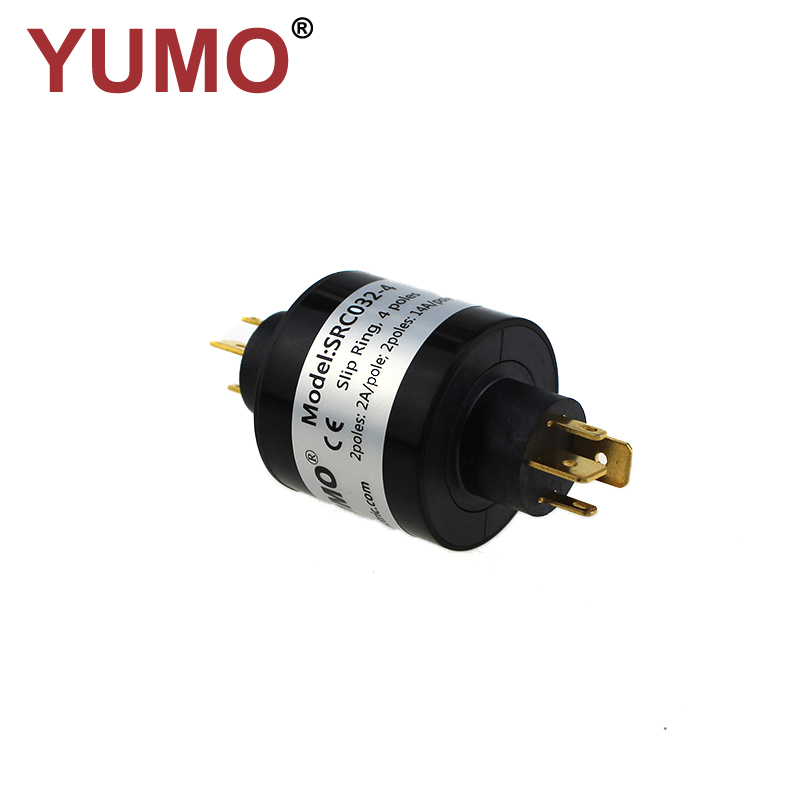

YUMO SRC032-4 Slip Ring Rotary Joint Electrical Rotating Connector
Description
The slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. The slip ring is also called rotary electrical interface, commutator, collector, swivel or electrical rotary joint. The brush adopt noble metal alloy material, Conducting ring Using a 900V-groove ring. It adopt multilayer noble metal alloy for plating dispose. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
The SRC Series find typical applications in
*CCTV pan/tilt cameras and pedestals
*Robots and downhole inspection equipment
*Test and measuring equipment
*Manufacturing and process control equipment
*Computer peripherals
*Display equipment Medical equipment
| Code | SRC032-4 |
| Brand | YUMO |
| circuit quantity | 4poles |
| Voltage | 230VDC-240VAC |
| Current | 2 poles 14A/Pole+2poles 2A/pole |
| High pot | 500VAC@50hz |
| Contact material | precious metal |
| Housing size | 32mm |
| operate speed | 0-400rpm |
| Insulation Resistance | 1000MΩ/500VDC |
Product Pictures
FAQ:
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
