Panel mounting voltage and ampere meter with 22mm Yellow Light AD101-22VAM

The push button series are used in controlling circuit of AC voltage up to 660V/AC50Hz or 60Hz, and DC voltage below 400V. It is used for controlling signal and interlocking purposes. The main body of the push buttons adopts zinc alloy and high-grade anti-flam plastic. The contact adopts special silver alloy in order to enjoy the benefit of high anti-electrical erosion. The signal lamp series are suitable for electrical appliances circuit of AC voltage up to 380V/50Hz, and DC voltage below 380V. It is ideal for using as indicating signals, warning signals, emergency signals, etc. Our products comply with GB/T14048.1 and IEC60947-5-1, all products are CE, ISO9001, ROHS and UL certified.
Indicator Voltmeter and Ammeter, Voltmeter, Ammeter,Voltmeter and Ammeter, indicator, Panel mounting indicator, Panel mounting voltage and ampere meter, voltage and ampere meter, voltage meter, ampere meter
  • AD101-22VAM
  • YUMO
  • AD101 indicator.pdf
  • 10
  • China
  • Voltage and Ampere Meter
  • Indicator Meter
  • AC50-500
  • Panel Moungting
  • Yellow
  • CE RoHS
  • 0-100A
  • 1NO1NC
  • 50Hz/60Hz
  • ±20%
  • waterproof push button
  • ≥2MΩ
  • ≤25MinΩ
  • Waterproof plastic box
  • 0-100A
  • 0-100A
Availability:
Inquire Add to Basket

 Product Pictures

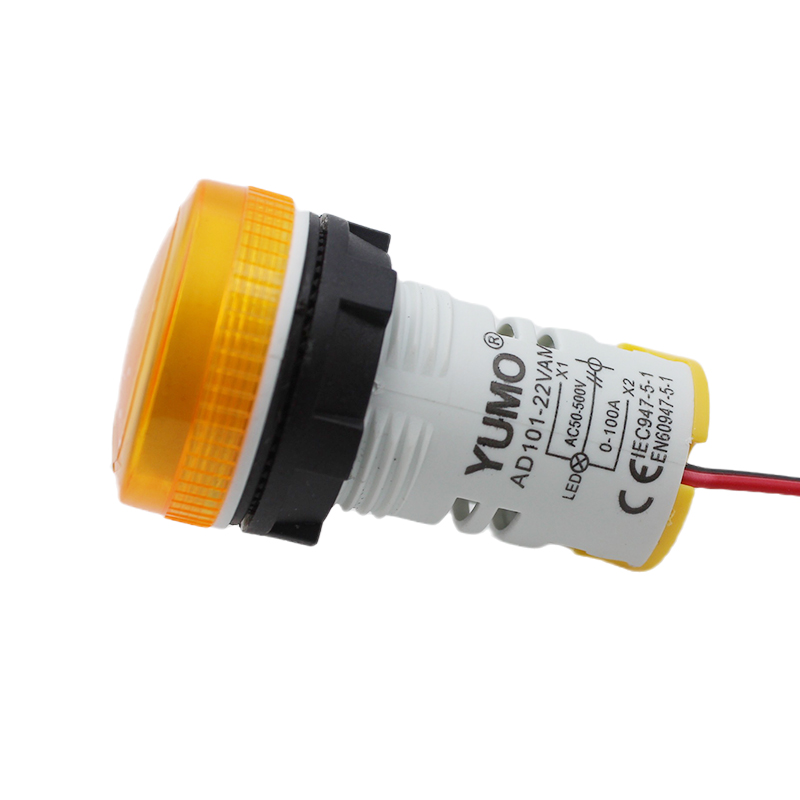

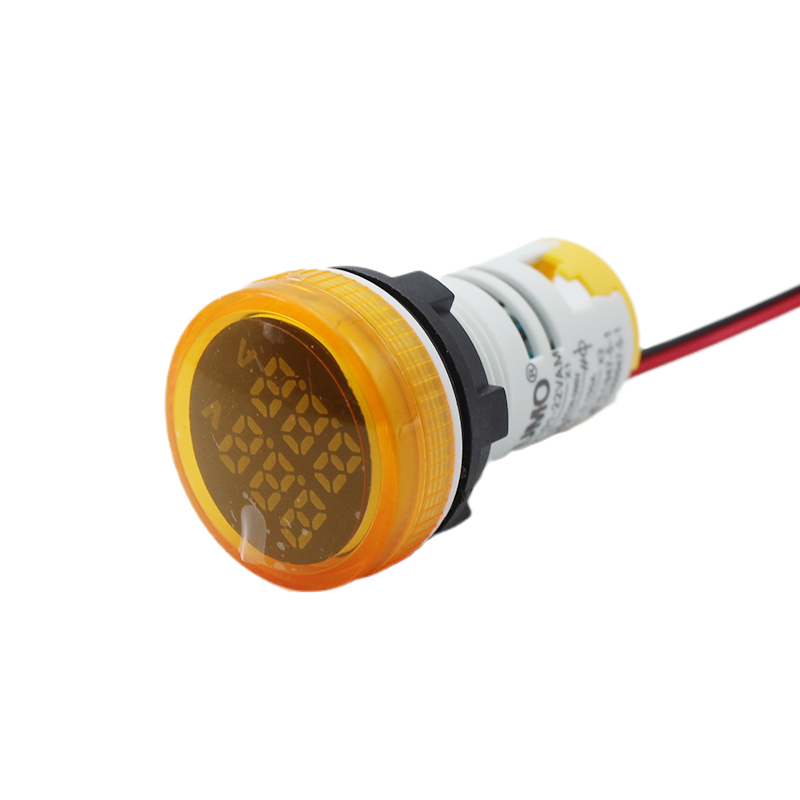

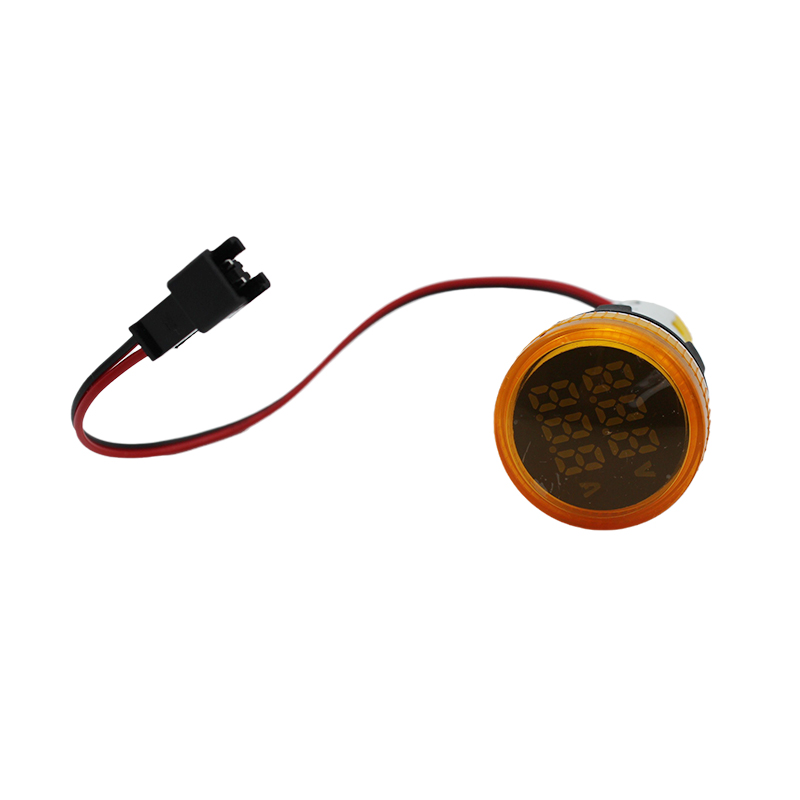

AD101-22VAM (6)AD101-22VAM (5)AD101-22VAM (4)AD101-22VAM (2)

Product Description



Working Condition


ambient temperature:-25C -+55C,

relative humidity:≤98%,

nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g

pollution degree is 3, installation g roup is Il .


Technical Data


Power frequency withstand voltage:2.5kv/1min (effective AC value),

insulation resistance: ≥2MΩ,

Allowable voltage fluctuation:± 20% ,

Continuous operating life: ≥30000H,

Brigtnss: ≥ 100cd/m2,

CTI≥600,

Protection degree of the head IP65, IP67 is available on request,

Applying frequency:AC50~60Hz.

Indicator Dimensions(mm)

Indicator AD101-22VAM Dimensions
