ABS | Size | Material | Head type | Switch combination | Work type | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm 08mm 12mm 16mm 19mm 22mm 25mm | C:Chromium plated brass A:Zinc alloy plated chromium S:Stainless steel P:Plastics | P:flat G:High Q:Ball M:Mushroom | 11:1NO1NC 22:2NO2NC 1:1NO/1NC (Welding) 10:2NO2NC(Welding) 0:1NO/1NC (terminal) 00:2NO2NC(terminal) | Z:Maintained | D:Center point E:Ring lamp C:Power mark T:Custom patterm | R:Red G:Green Y:Yellow B:Blue W:White | AC/DC 3V |
Switching Operation | |||
Type | Diagram | sign | Explanation |
1NO |  |  | Double breakpoint slow moving contact switch with two terminals |
1NO 1NC |  |  | Single breakpoint snap change contact switch with three terminals |
1NO 1NC |  |  | Double breakpoint snap change contact switch with four terminals |
Switching Operation | ||||||
Rated insulation Voltage | 250 | |||||
Heating current Ith | Temperature does not exceed the maximum allowed current | |||||
Rated voltage | 12V | 24V | 110V | 220V | ||
Rated | AC | Resistive load | - | - | 5A | 3A |
Inductive load | - | - | 3A | 2A | ||
DC | Inductive load | 5A | 5A | 1A | 0.5A | |
Inductive load | 2A | 2A | 0.2A | 0.1A | ||
Contact material | Silver Plated Gold | |||||
Lamp Ratings | |
Lamp Type | LED lamp(AC/DC) |
Rated Voltage | 3V,6V,12V,24V,36V,110V,220V AC/DC |
Rated Current | About 15mA |
LED Color | R G Y O B W P |
Life | 40000hours |

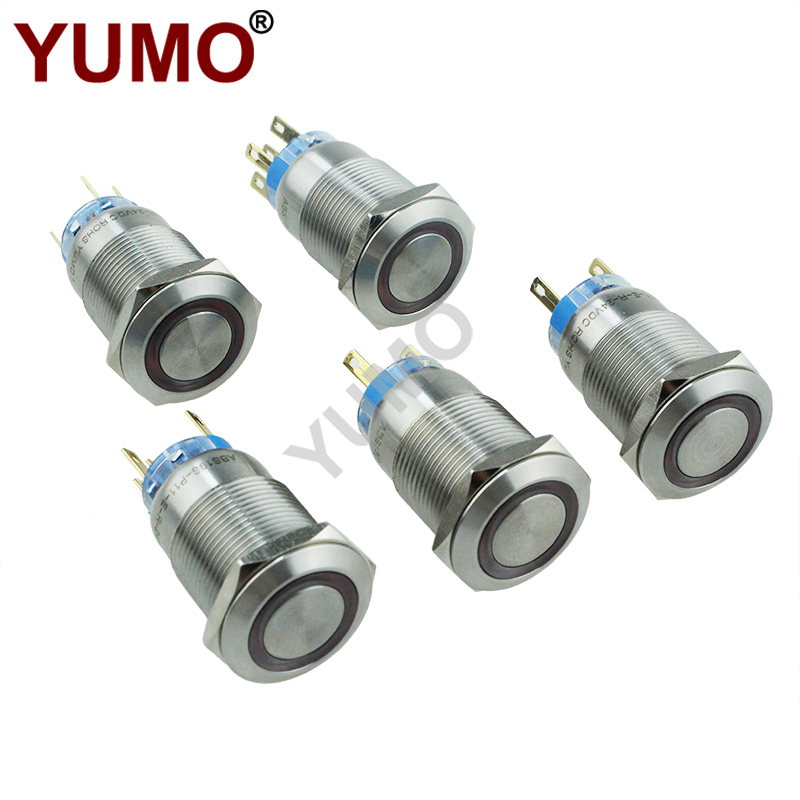

| Code | ABS19S-P11 |
| Diameter | 19mm |
| Color | R G Y O B W P RG RB |
| Switch Rating | 5A/250VAC |
| Contact Configuration | 1NO1NC/2NO2NC |
| Operation Type | Momentary/Maintained(Z) |
| The Front Shape | Flat |
| Lamp type | Ring lluminated(LED) |
| The Crust Material | Stainless steel/Copper plating |
| IP Degree | IP67,IK10 |
