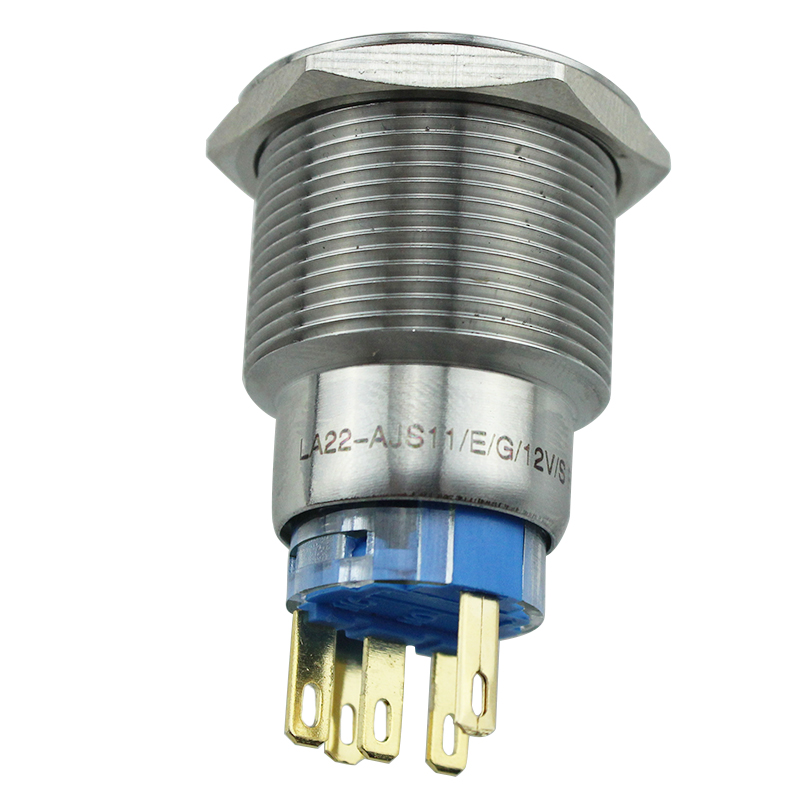

Yumo 22mm Green LED Waterproof Stainless Steel Metal Push Button

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
  • LA22-AJS11-E-G-12V-S

  • YUMO

  • 10

Availability:

Yumo 22mm Green LED Waterproof Stainless Steel Metal Push Button

Switch Rating:5A/250VAC
Contact Configuration:1NO1NC
Operation Type:Momentary/Alternate
The Crust Material:stainless Steel
Ring lluminated
IP Degree:lP40/1P67

Specification LA19-AJS
The Front Shape Flat Round
Terminal Type Pin Terminal(2.8x0.5mm)
Switching NO.3
Max.Switch Rating Ith:5A Ui:250VAC
Contact Resistance ≤50mQ
Insulating Resistance ≥1000MQ
Dielectic Strengh 2000VAC
Operating Temp -20C-+55C
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~10mm
Tortque 5~ 14Nm
Operation Pressure 3~5N
Operation Distance About3.1mm
IP Degree IP40/IP67
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PBT
ROHS Made to order
LED Specl Type Ring Illuminated(LED)
Rated voltage 6V/12V/24V/36V/110V/220V
Color  R  G  O  B  W
Life 40000 hours

LA22-AJS11-E-G-12V-S (8)

Product Pictures:

LA22-AJS11-E-G-12V-S (1)LA22-AJS11-E-G-12V-S (3)LA22-AJS11-E-G-12V-S (5)
