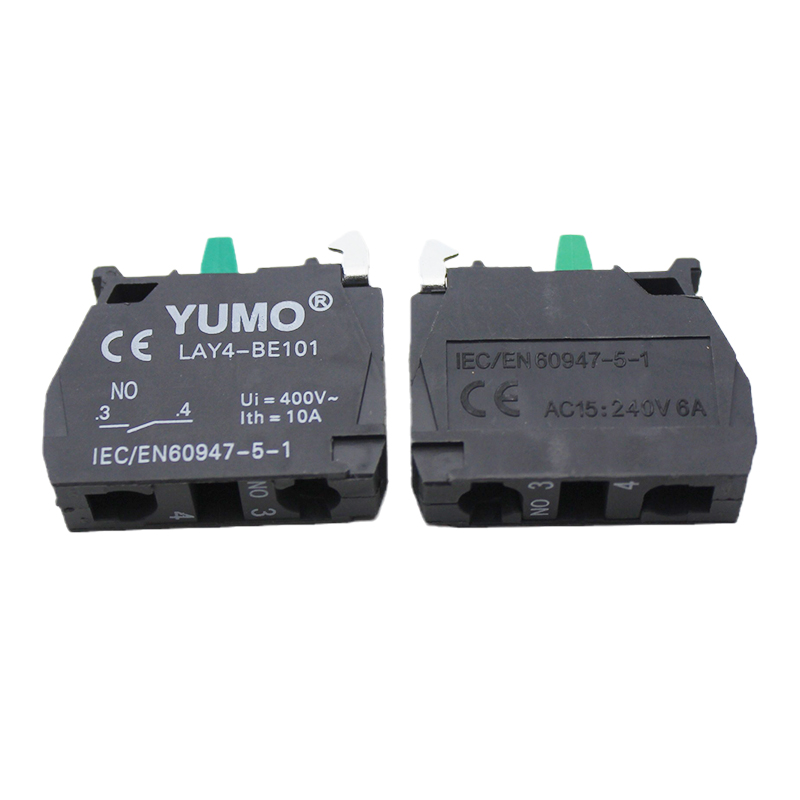

LAY4-BE101
YUMO
100
China
Push button Base
Pusht button Switch Parts
400V push button
Contact element
AC
Green
CE RoHS
10A
1NO1NC
50Hz/60Hz
±20%
AC 2.5KV/min
≥50MΩ
≤25MinΩ
10A
push button auxiliary contact
Contact Element Push Button Auxiliary LAY4 Series No/Nc
| Main technical parameter | ||||
| Basic technical parameter of button | Basic technical parameter of signal lamp | |||
| Rated insulation | AC 600V(50Hz/60Hz) | Insulation resistance | ≥50MΩ | |
| Conventional heating current | 10A | Contact resistance | ≤25MinΩ | |
| Insulation resistance | ≥50MΩ | Pf withstand voltage | AC 2.5KV/min | |
| Contact resistance | ≤25MinΩ | Voltage wave | ±20% | |
| Mechanical life | 100x10000 pushbutton | 50x10000 selector switch | Brightness | 60cd/m2 |
| Electrical life | 500x10000 pushbutton | 25x10000 selector switch | Continuous working life | |
Product Pictures
About Us
FAQ:
Q:How to order our product?
A: 1) Please tell us the model and quantity and other request you need.
2) We make the PI for you.
3) After you confirm the PI, we arrange the order for you after receiving your payment.
4) After the goods finished, we send the goods out to you and tell you the tracking number.
5) We will track your goods until you receive the goods.
Q: What's your warranty?
A: One year.
Q: What's your contact information?
A: Our address: Liushi town, Zhejiang province, China.
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What about MOQ?
A: First order MOQ=1pcs.
Q: If I want to release order, what's the payment method you accept?
A: We accept T/T, Paypal, Western union, L/C.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
