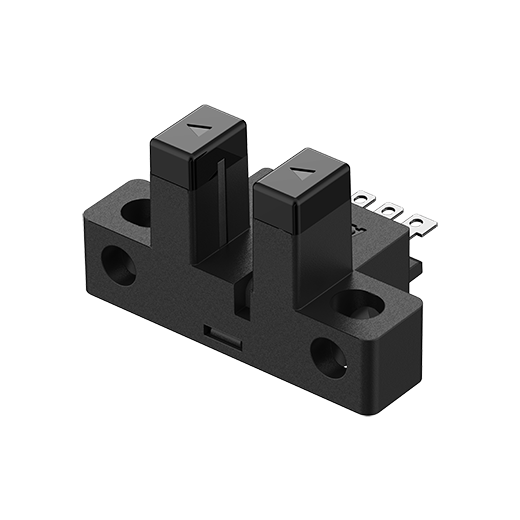

BS5-L2M
Autonics
Availability: | |
---|---|
Description:
Sensing type | Through-beam type |
---|---|
Sensing distance | 5mm |
Sensing target | Opaque |
Min. sensing target | ≥Ø0.8mm×2mm |
Hysteresis(distance) | ≤0.05mm |
Response time | Light ON: Max. 20㎲, Dark ON: Max. 100㎲ |
Response frequency | 2kHz |
Light source | Infrared LED |
Peak emission wavelength | 940nm |
Operation mode | Light ON/Dark ON(set by control wire) |
Indicator | Operation indicator (red LED) |
Weight | Approx. 30g |
Power supply | 5-24VDC ±10%(ripple P-P : max. 10%) |
Current consumption | Max. 30mA |
Control output | NPN open collector |
Load voltage | ≤30VDC |
Load current | Max. 100mA |
Residual voltage | NPN: ≤1.2VDC, PNP: ≤ 1.2VDC |
Protection circuit | Reverse polarity protection circuit, output overcurrent (short-circuit) protection circuit |
Insulation resistance | ≥20 MΩ (250 VDC megger) |
Noise immunity | The square wave noise (pulse width: 1㎲) by the noise simulator ±240VDC |
Dielectric strength | 1,000VAC 50/60Hz for 1 minute |
Vibration | 1.5mm amplitude (max. acceleration 196m/s²) at frequency of 10 to 2,000Hz in each X, Y, Z direction for 2 hours |
Shock | 15,000 m/s² (approx. 1,500G) in each X, Y, Z direction for 3 times |
Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
Environment_Ambient temperature | -20 to 55℃, storage : -25 to 85℃ |
Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
Protection structure | IP50 (IEC standard) |
Connection | Connector type |
Material | Case: PBT, Sensing part: PC |
