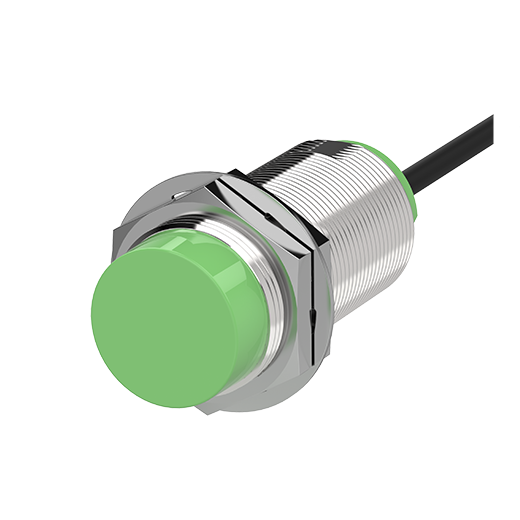

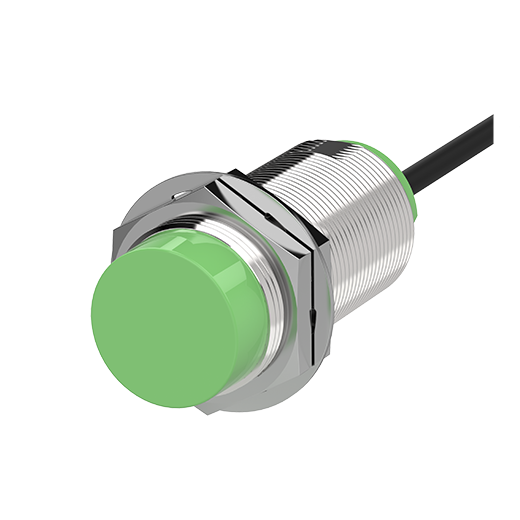

Autonics Proximity Sensor CR30-15AO

Sensor, Capacitive Prox, 30mm Round, Non-Shielded, AC, NO, 2 Wire, 90-250 VAC
  • CR30-15AO

  • Autonics

Availability:

Description:

Wire type and powerAC 2-wire type
100-240VAC~
Sensing side diameterM30
Sensing distance15mm
Standard sensing target50×50×1mm(iron)
Response frequency20Hz
Current specificationLeakage current: Max. 2.2mA
Control outputNormally Open
MaterialBrass(nickel plated)
Protection structureIP65
Environment_Ambient temperature-25 to 70℃, storage: -30 to 80?
Environment_Ambient humidity35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance)Max. 20% of sensing distance
WeightApprox. 237g(approx. 200g)
