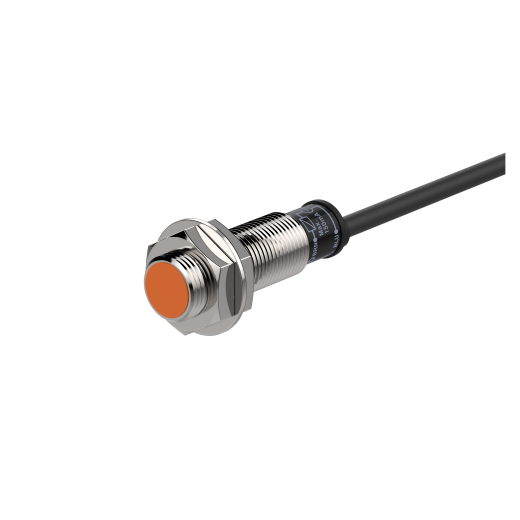

PRT12-2DC
AUTONICS
Availability: | |
---|---|
Description:
Wire type and power | DC 2-wire type 12-24VDC |
---|---|
Sensing side diameter | M12 |
Sensing distance | 2mm |
Installation | Flush |
Standard sensing target | 12×12×1mm(iron) |
Response frequency | 1.5kHz |
Current specification | Leakage current: Max. 0.6mA |
Control output | Normally Closed |
Material | Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303), washer: Nikel plated Iron, sensing side: polybutylene terephthalate, standard cable (black): polyvinyl chloride (PVC), oil resistant cable (gray): oil resistant polyvinyl chloride (PVC) |
Cable Standard/material | Standard cable |
Protection structure | IP67(IEC standard) |
Body length | Standard type |
Environment_Ambient temperature | -25 to 70℃, storage: -30 to 80℃ |
Environment_Ambient humidity | 35 to 95% RH, storage: 35 to 95% RH |
Hysteresis(distance) | Max. 10% of sensing distance |
Residual voltage | Max. 3.5V |
Weight | Approx. 84g(approx. 72g) |
