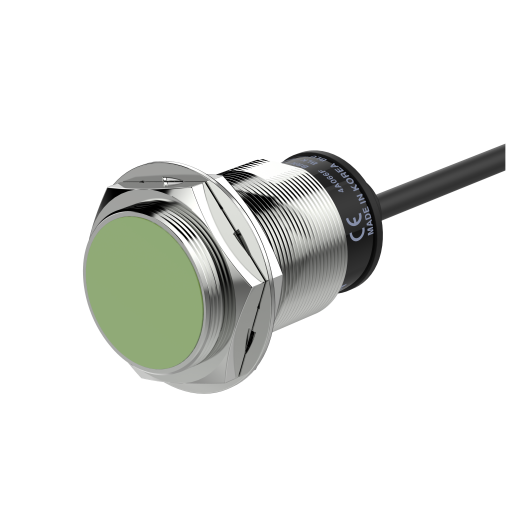

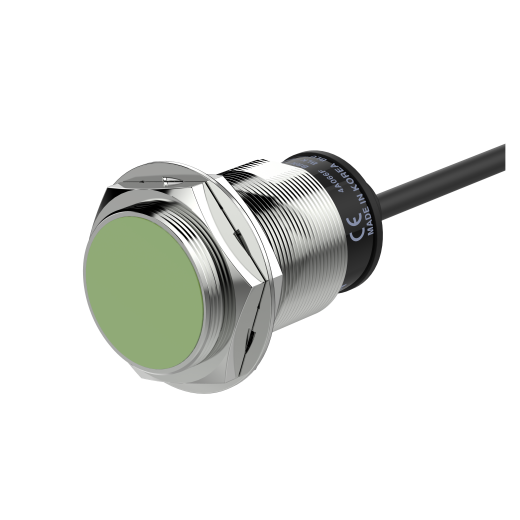

Autonics Proximity Sensor PRT30-10DO

Sensor, Inductive Prox, 30mm Round, Shielded, DC, NO, 2 Wire, 15-30 VDC
  • PRT30-10DO

  • AUTONICS

Availability:

Description:

Wire type and power DC 2-wire type 12-24VDC
Sensing side diameter M30
Sensing distance 10mm
Installation Flush
Standard sensing target 30×30×1mm(iron)
Response frequency 400Hz
Current specification Leakage current: Max. 0.6mA
Control output Normally Open
Material Case/Nut: Nikel plated Brass, (connector case of DIA. of sensing side Ø 8 mm: SUS303),
washer: Nikel plated Iron, sensing side: polybutylene terephthalate,
standard cable (black): polyvinyl chloride (PVC),
oil resistant cable (gray): oil resistant polyvinyl chloride (PVC)
Cable Standard/material Standard cable
Protection structure IP67(IEC standard)
Body length Standard type
Environment_Ambient temperature -25 to 70℃, storage: -30 to 80℃
Environment_Ambient humidity 35 to 95% RH, storage: 35 to 95% RH
Hysteresis(distance) Max. 10% of sensing distance
Residual voltage Max. 3.5V
Weight Approx. 207g(approx. 170g)
