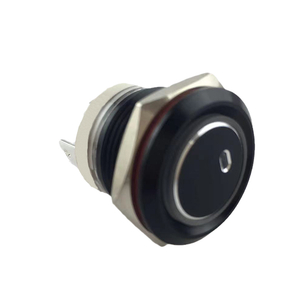

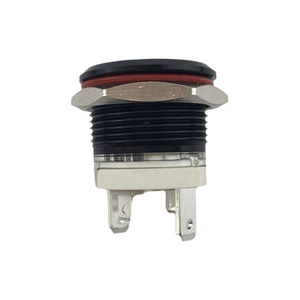

ABS19S-C1-E-R-230 19mm stainless steel push button momentary led ring lamp Switch AC230V
Metal Switch Features
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
ABS19S-C1-E-R-230 19mm stainless steel push button momentary led ring lamp Switch AC230V
Metal Switch Features
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
