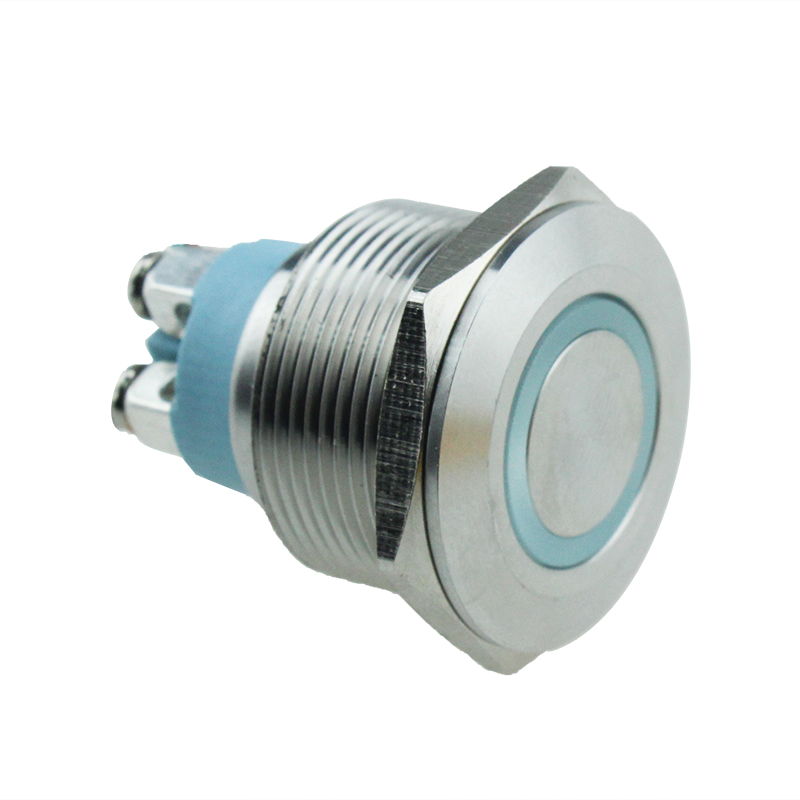

YUMO Metal push button JS22F-11E-W-12V-S Selevator equipment waterproof LED button

Metal Switch Features
1,With the stability of the connection performance,the use of security equipment.
2,Beautiful,high end ,fashion design
3,Medical grade imported stainless stell material,environmental is beautiful with no rust.
4,Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5,Compact design,compact size,can be used for any small equipment.

  • JS22F-11E-W-12V-S
  • YUMO
  • China
  • maximum voltage: 250VAC
  • Industrial Automation
  • Maximum current：5A
Availability:
Inquire Add to Basket

YUMO  Metal push button JS22F-11E-W-12V-S  Selevator equipment waterproof LED



The Front Shape Flat Round
Terminal Type Pin Terminal(2.8x0.5mm)
Switching NO.2
Max.Switch Rating Ith:5A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃-+55℃
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~8mm
Tortque 5~ 14Nm
Operation Pressure About 5.5N
Operation Distance About 2.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PA
LED Specl Type Ring Illuminated(LED)
Rated voltage 6V/12V/24V/36V/110V/220V
Color R  G  Y  O  B  W
Life 40000 hours
