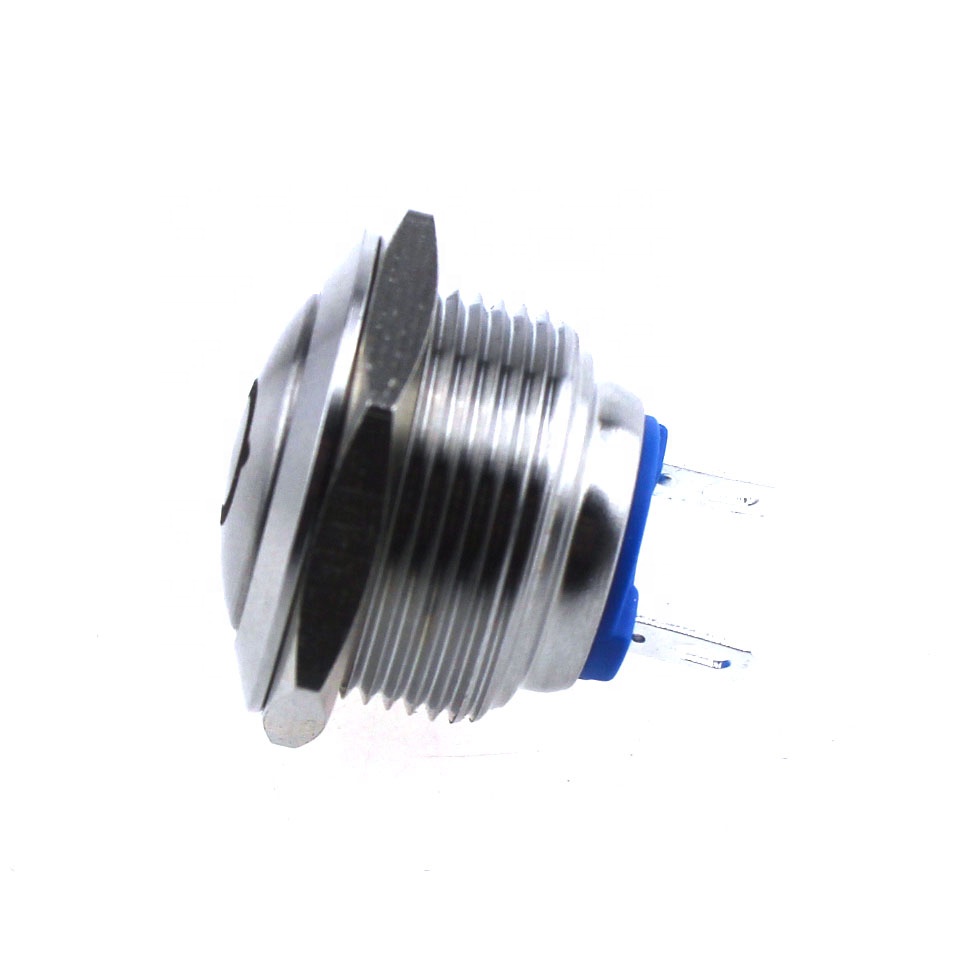

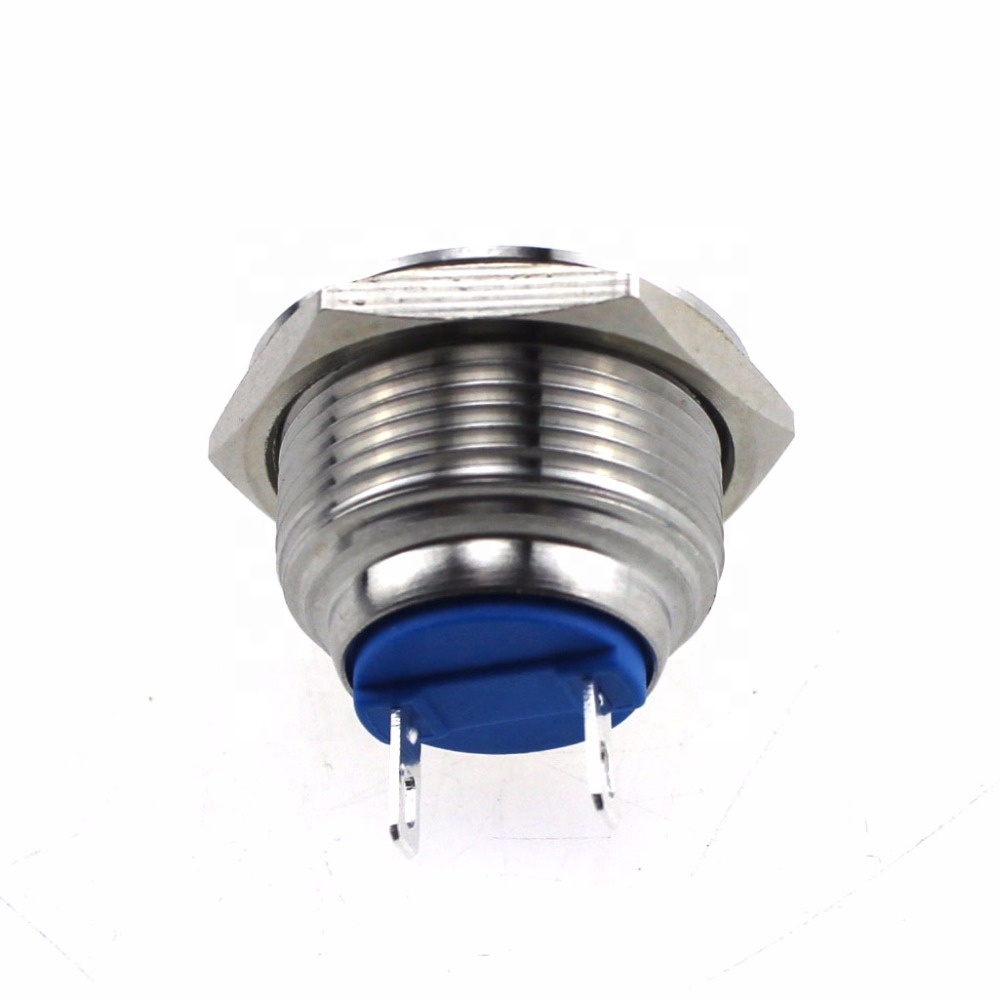

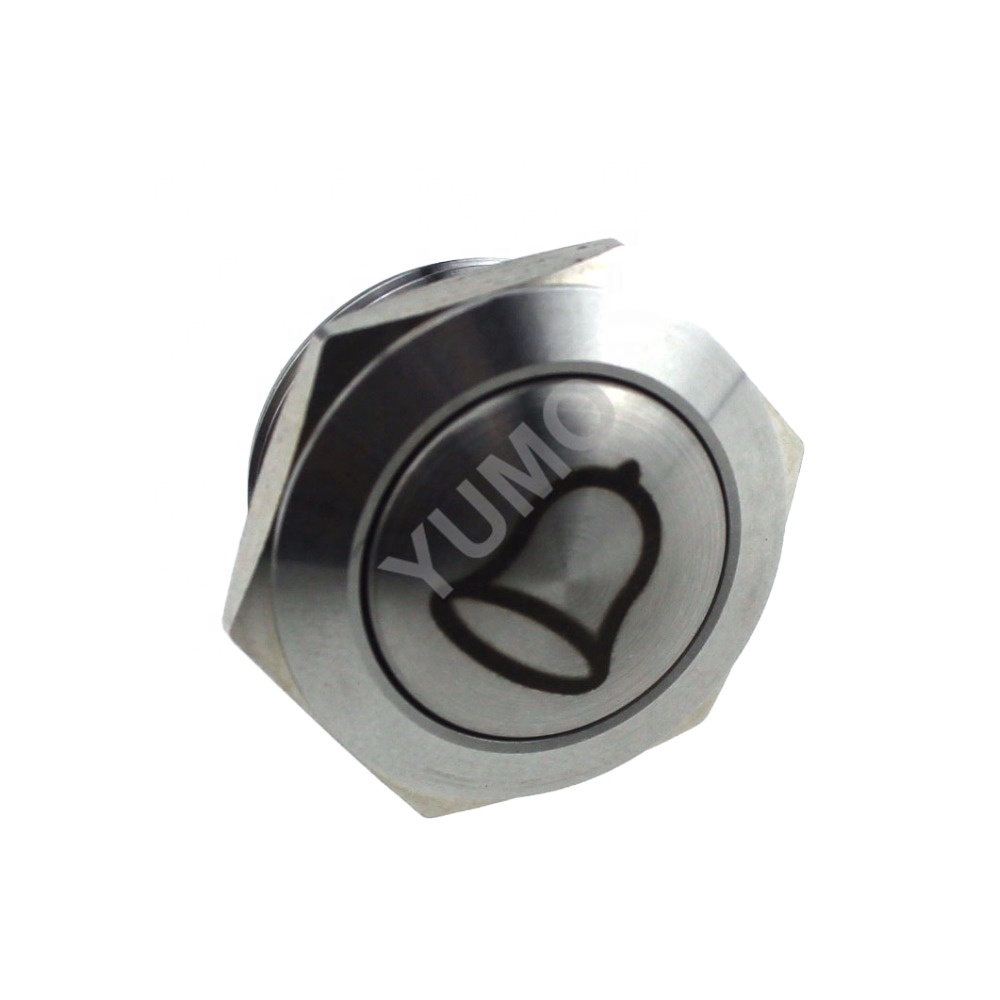

19mm ball Head IP67 doorbell Metal Push Button switch

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
  • ABS19S-Q1

  • YUMO

  • China

  • CE

  • Maximum current:3A

Availability:

19mm ball Head IP67 doorbell Metal Push Button switch


Metal Switch Features

1,With the stability of the connection performance,the use of security equipment.

2,Beautiful,high end ,fashion design

3,Medical grade imported stainless stell material,environmental is beautiful with no rust.

4,Protection performance IP67,waterproof,dust can be competent for the harsh environment.

5,Compact design,compact size,can be used for any small equipment.


ABS19S-Q1 (1)


ABS

Size

Material

Head type

Connection mode

Lamp type

Lamp color

Lamp voltage

Metal Switch

06mm

C:Chromium plated brass

P:flat

11:1NO1NOC

D:Center point

R:Red

AC/DC

08mm

G:High

1:1NO/1NC (Welding)

G:Green

3V

12mm

Q:Ball

E:Ring lamp

Y:Yellow

6V

16mm

A:Zinc alloy plated chromium

M:Mushroom

0:Two bit terminal

B:Blue

12V

19mm

C:Power mark

W:White

24V

22mm


00:Four bit terminal


36V

25mm

S:Stainless steel


T:Custom patterm


48V





110V


P:Plastics





120V


Parameter

ABS19S-Q1

Diameter

16mm

Color

R G Y O B W P RG RB


Switch Rating

5A/250VAC

Contact Configuration

1NO 1NC/2NO 2NC

Operation Type

Momentary/Maintained(Z)

The Front Shape

Ball

Lamp type

NO Ring llluninated(LED)

The Crust Material

Stainless steel/Copper plating

IP Degree

IP67, IK10
