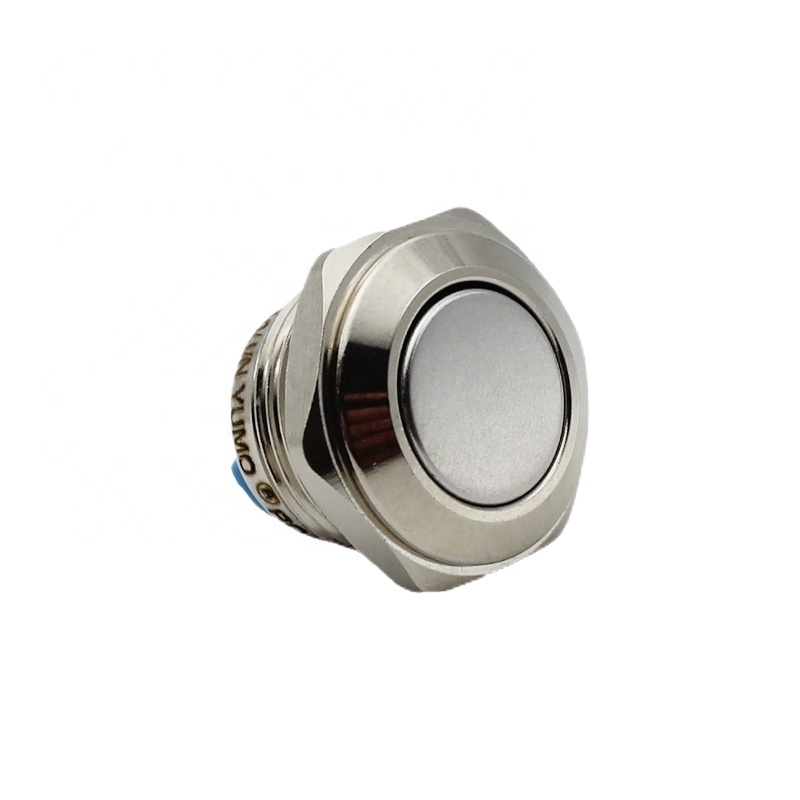

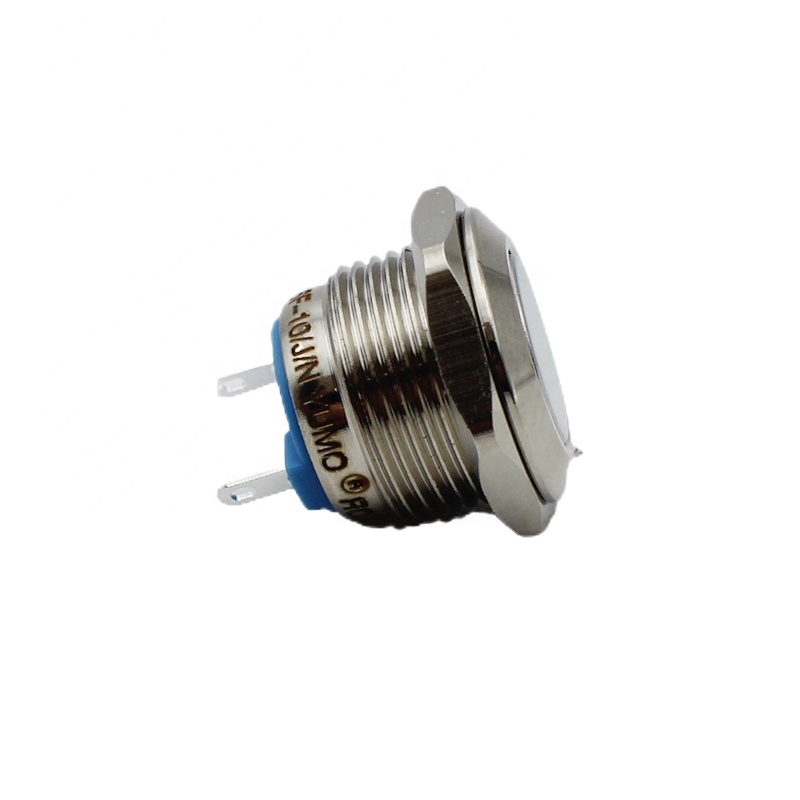

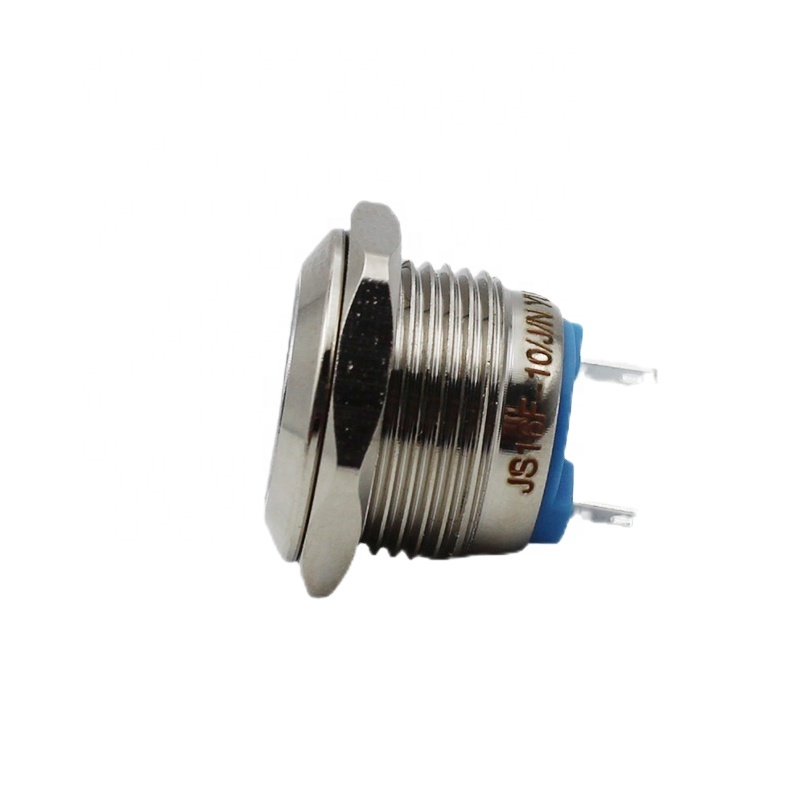

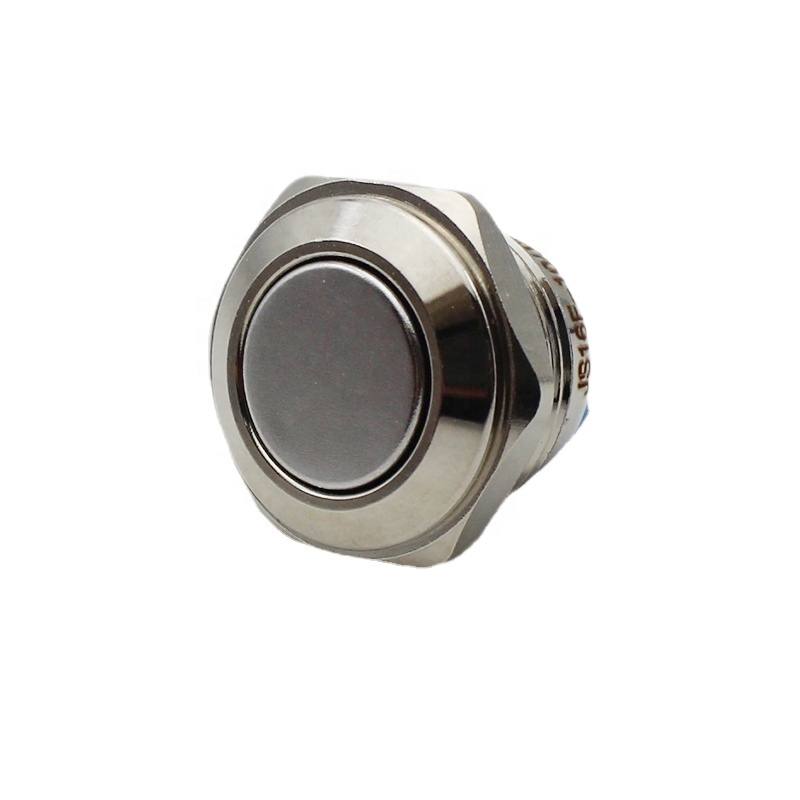

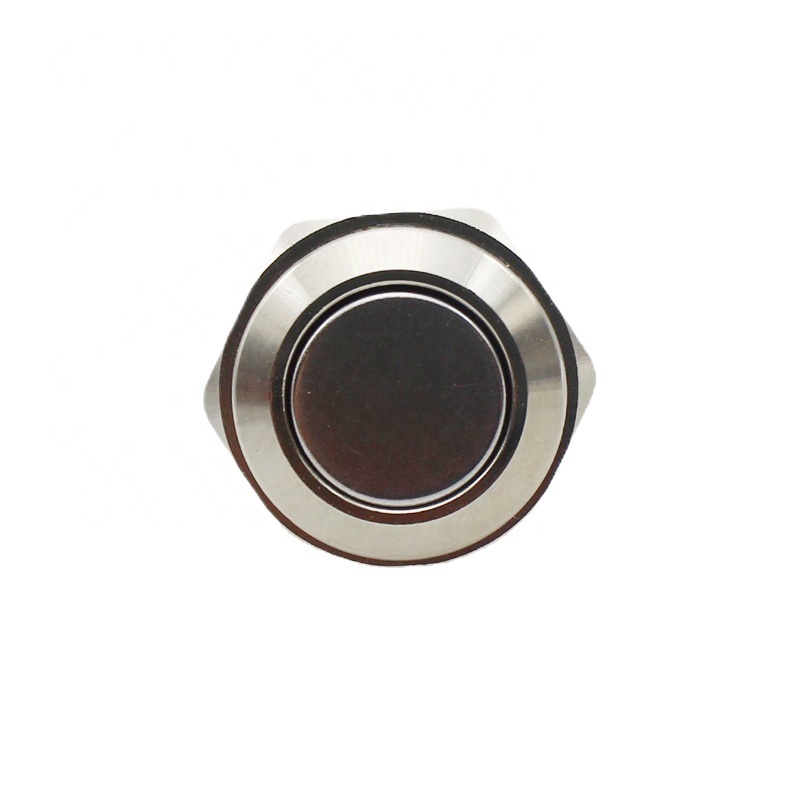

YUMO JS16F-10JN waterproof push button switch push on off switch push button start switch

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
  • JS16F-10JN

  • YUMO

  • China

  • maximum voltage: 36VAC

  • Maximum current:2A

Availability:

YUMO JS16F-10JN waterproof push button switch push on off switch push button start switch

Features

  • 16mm diameter

  • Switch Rating:2A/36VAC

  • Contact Configuration:1NO

  • Operation Type:Momentary

  • The Front Shape:Domed

  • The Crust Material:stainless Steel

  • IP Degree:IP65

Dimensions


Product Description

echnical Specifications

Specification JS16F-10JN
The Front Shape Domed
Terminal Type Screw Termlnls
Max.Switch Rating 2A/36VDC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55℃
Mechanical life 1,000,000cycles
Eictical life 200, 000cycles
Panel Thickness 1~6mm
Tortque 5~ 14Nm
Operation Pressure About 4N
Operation Distance About 1.5mm
IP Degree IP65
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Steel
Base PBT
