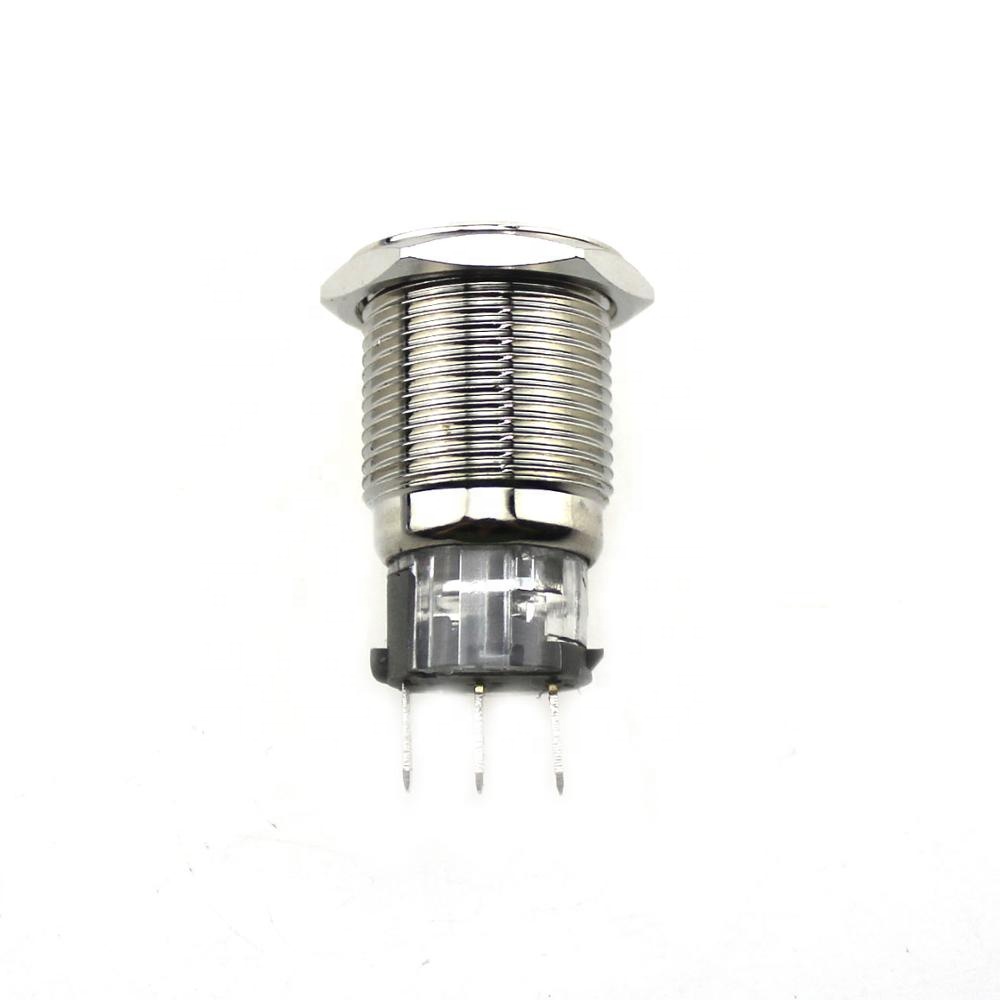

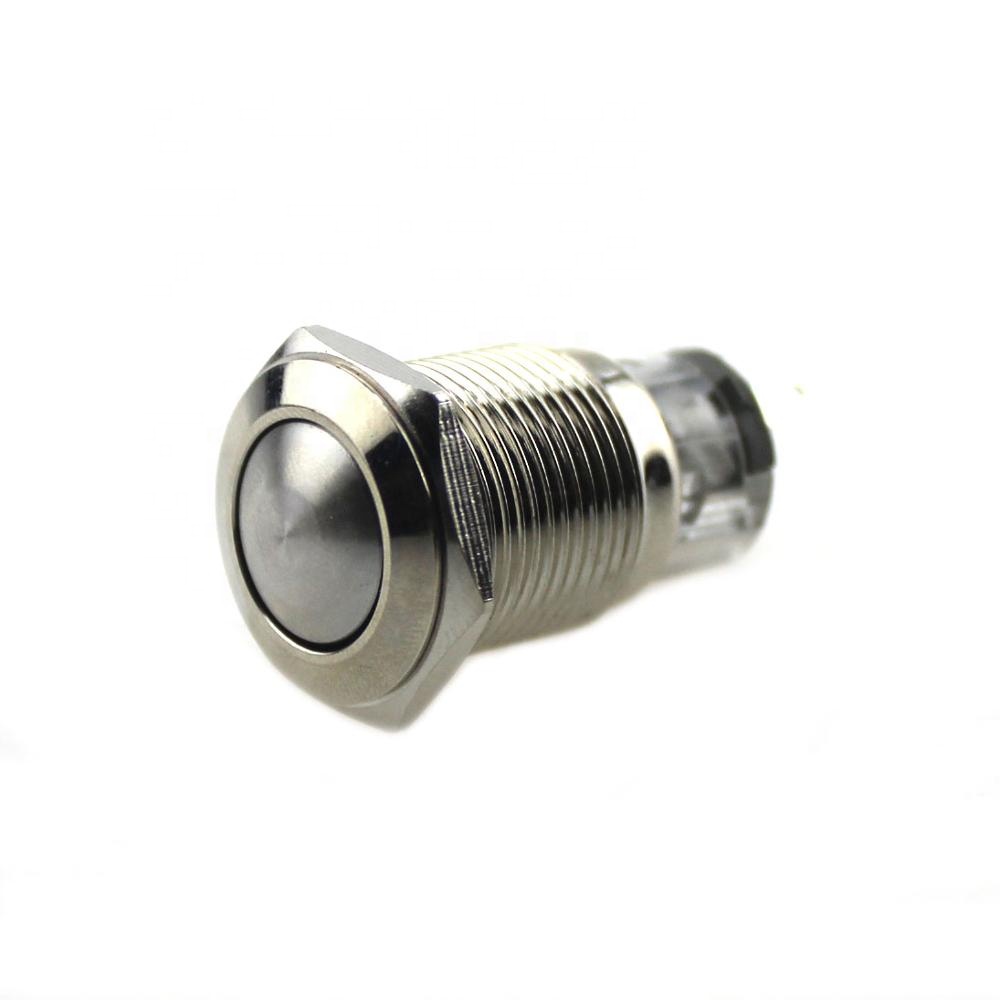

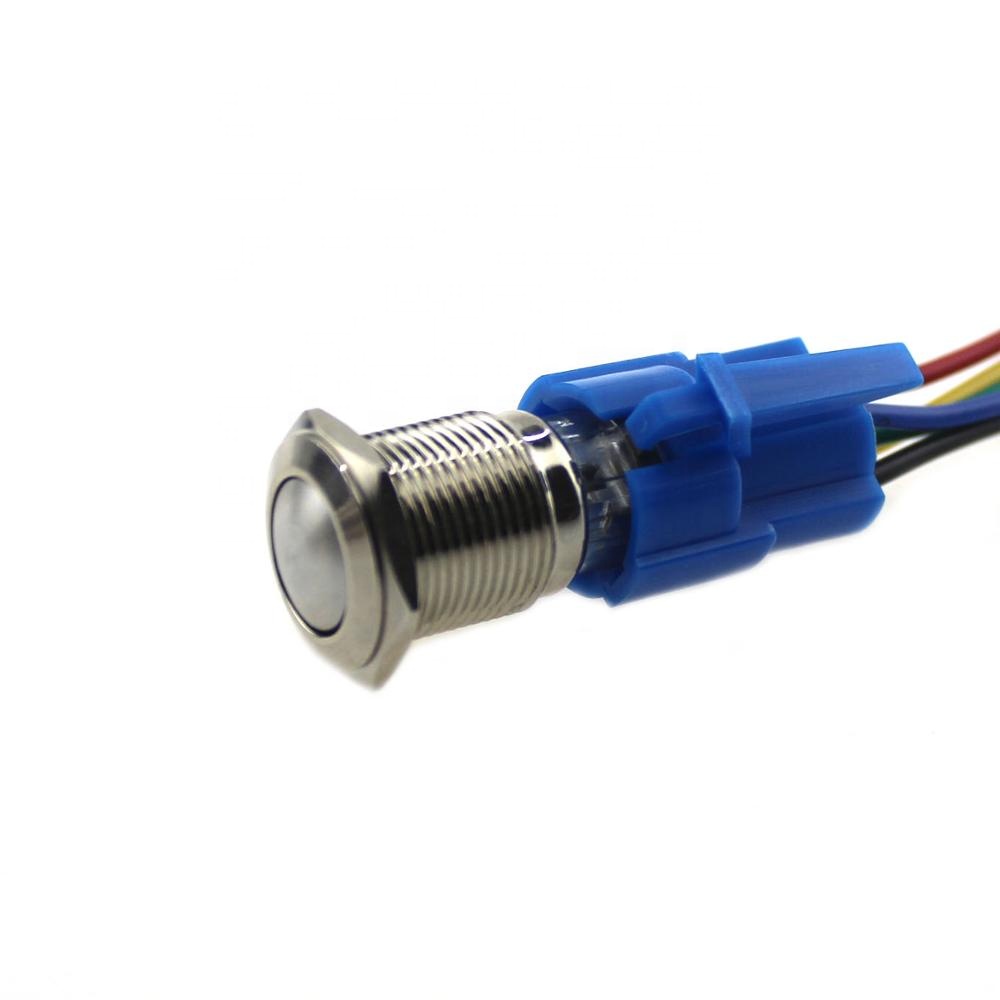

ABS16S-Q11 16mm ball head momentary metal push button switch

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
  • ABS16S-Q11
  • YUMO
  • China
  • CE
  • Industrial Automation
Availability:
Inquire Add to Basket

ABS16S-Q11 16mm ball head momentary metal push button switch



Switching Operation

Type

Diagram

sign

Explanation

1NO

Double breakpoint slow moving contact switch with two terminals

1NO 1NC

Single breakpoint snap change contact switch with three terminals

1NO 1NC

Double breakpoint snap change contact switch with four terminals

Switching Operation

Rated insulation Voltage

250

Heating current Ith

Temperature does not exceed the maximum allowed current

Rated voltage

12V

24V

110V

220V

Rated
current

AC
50/60Hz

Resistive load

-

-

5A

3A

Inductive load

-

-

3A

2A

DC

Inductive load

5A

5A

1A

0.5A

Inductive load

2A

2A

0.2A

0.1A

Contact material

Silver Plated Gold

Lamp Ratings

Lamp Type

LED lamp(AC/DC)

Rated Voltage

3V,6V,12V,24V,36V,110V,220V AC/DC

Rated Current

About 15mA

LED Color

R G Y O B W P

Life

40000hours
