ABS16S-Q11Z
YUMO
China
Maximum voltage::380VAC
CE
Maximum current：3A

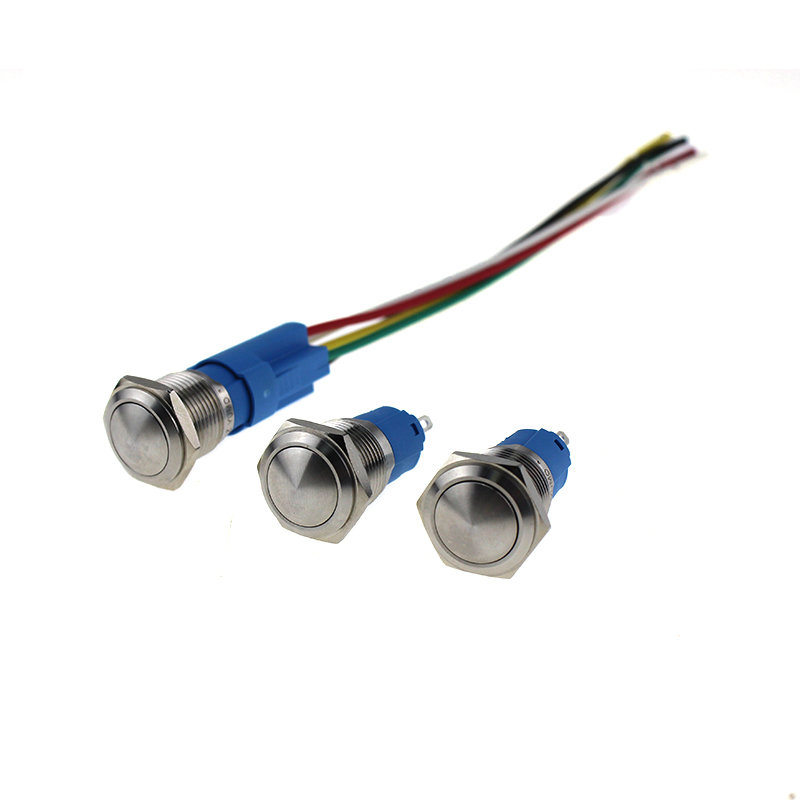

16mm ball head ABS16S-Q11Z IP67 self-lock waterproof metal push button switch
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABS16S-Q11Z |
Diameter | 16mm |
Color | R G Y O B W P RG RB |
Switch Rating | 5A/250VAC |
Contact Configuration | 1NO 1NC |
Operation Type | Maintained(Z) |
The Front Shape | Ball |
Lamp type | NO Ring llluninated(LED) |
The Crust Material | Stainless steel/Copper plating |
IP Degree | IP67, IK10 |
16mm ball head ABS16S-Q11Z IP67 self-lock waterproof metal push button switch
Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABS16S-Q11Z |
Diameter | 16mm |
Color | R G Y O B W P RG RB |
Switch Rating | 5A/250VAC |
Contact Configuration | 1NO 1NC |
Operation Type | Maintained(Z) |
The Front Shape | Ball |
Lamp type | NO Ring llluninated(LED) |
The Crust Material | Stainless steel/Copper plating |
IP Degree | IP67, IK10 |
