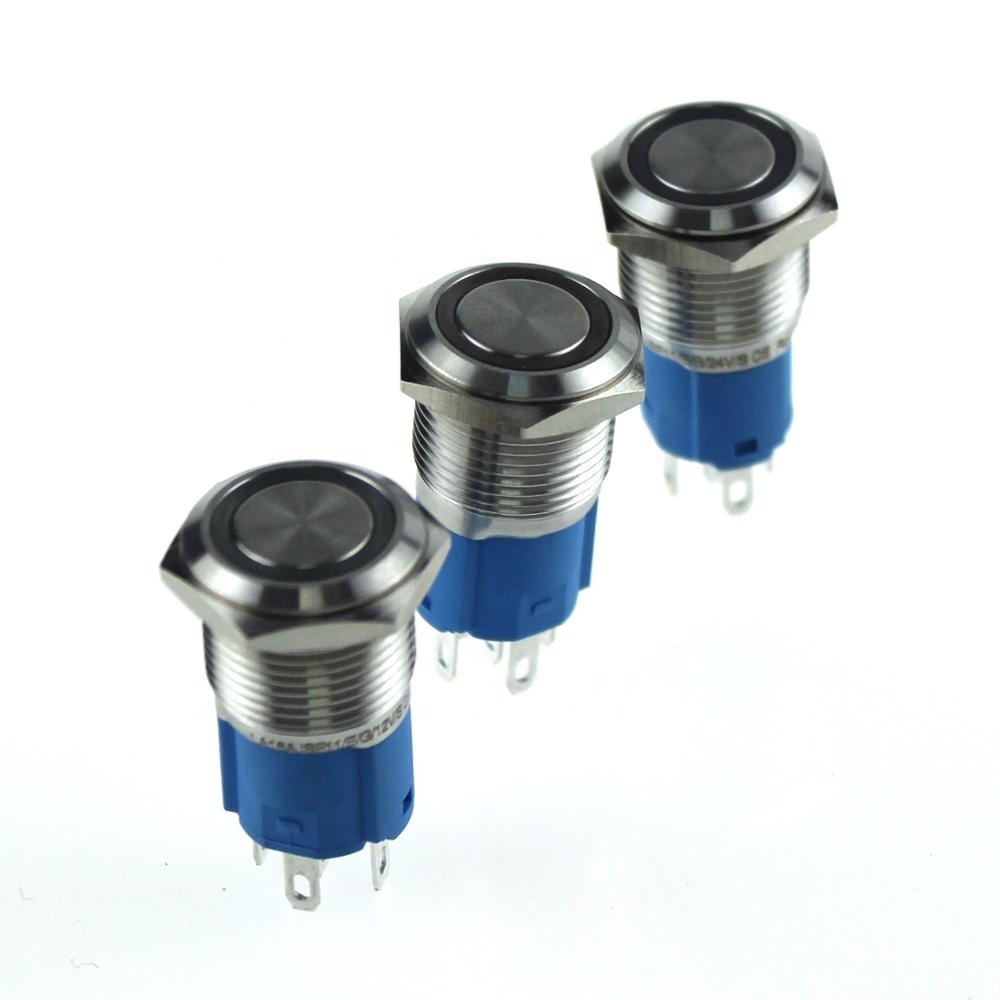

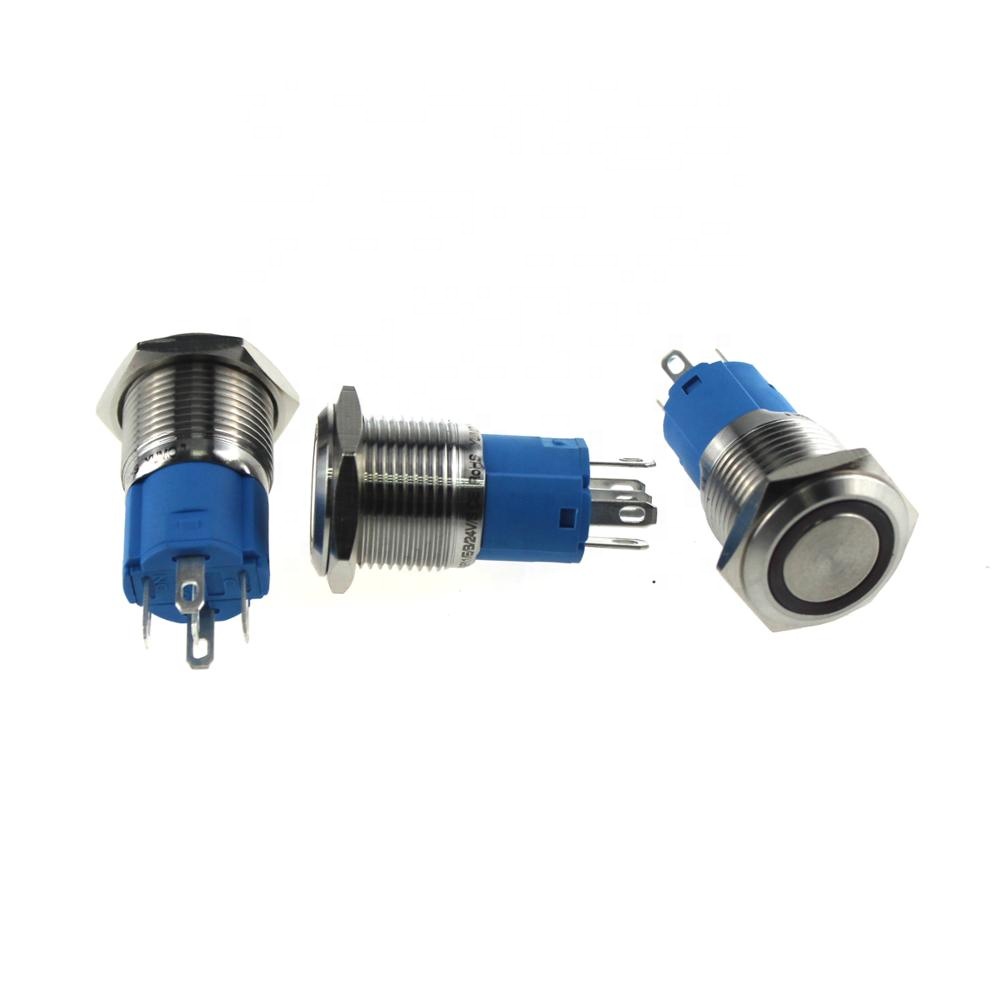

LA16JSF-11E blue push button monetary with LED lamp

Our high strength anti-vandal metal push button switches and the indicator lamps are not only elegant appearance, graceful, but also complete range of articles, variety of specifications, multipurpose, can meet various customers requirements in different fields, are widely applied in the key horizon control system of electromechanical instrument in various industry cabinet, household appliances and so on.
  • LA16JSF-11E
  • YUMO
  • 6/12/24/36/110/220V
  • Momentary
  • CE
  • Emergency call systems
Availability:

LA16JSF-11E blue push button monetary with LED lamp


Features:

  • 16mm diameter

  • Switch Rating:3A/250VDC

  • Contact Configuration:1NO 1NC/2NO 2NC

  • Operation Type:Momentary/Alternate

  • The Front Shape: Flat Round

  • The Crust Material:Stanless Steel/Brass(Nickel Plated )

  • Ring lluminated

  • IP Degree:IP40/67


Dimemsions:

LA16JSF11-E


Technical Specifications

Specification LA16JSF-E
The Front Shape Flat Round
Terminal Type Pin Terminal(1.8x0.4mm)
Switching NO.3
Max.Switch Rating lth:3A Ui:250VAC
Contact Resistance ≤50mΩ
Insulating Resistance ≥1000MΩ
Dielectic Strengh 2000VAC
Operating Temp -20℃~+55℃
Mechanical life 1,000,000cycles
Eictical life 50, 000cycles
Panel Thickness 1~10mm
Tortque 5~ 14Nm
Operation Pressure 2.5~4N
Operation Distance About 2.8mm
IP Degree IP40/IP67
Material Contrct Silver Alloy
Button Stanless Steel
Body Stanless Stee/Brass(Nickel Plated)
Base PBT
LED Specl Type Dot lluminated(LED)
Rated voltage
6V/12V/24V/36V/110V/220V
Color
R    G    Y    O    B   W
Life
40000 hours
