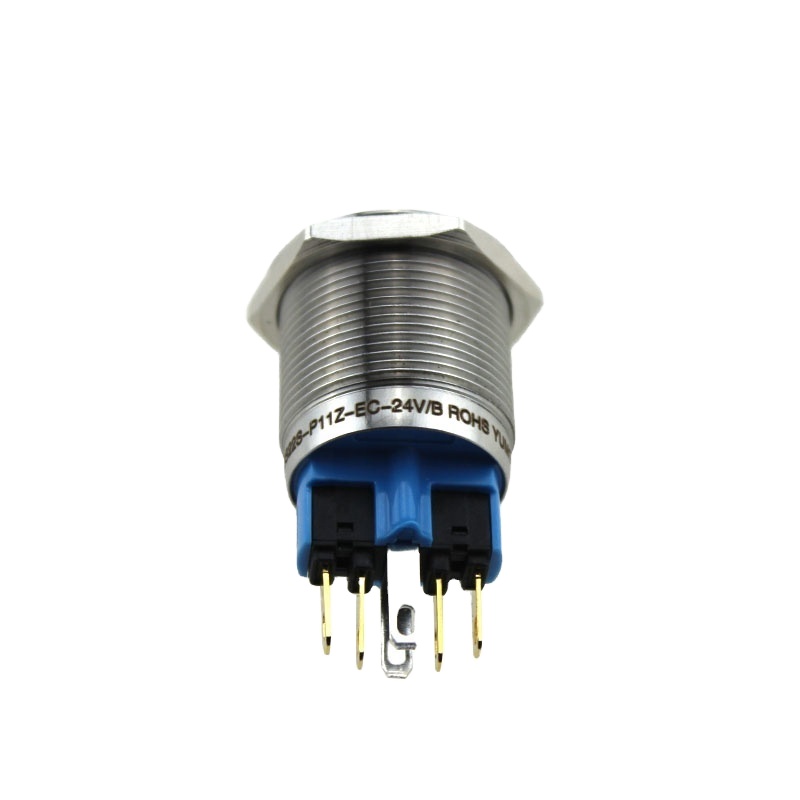

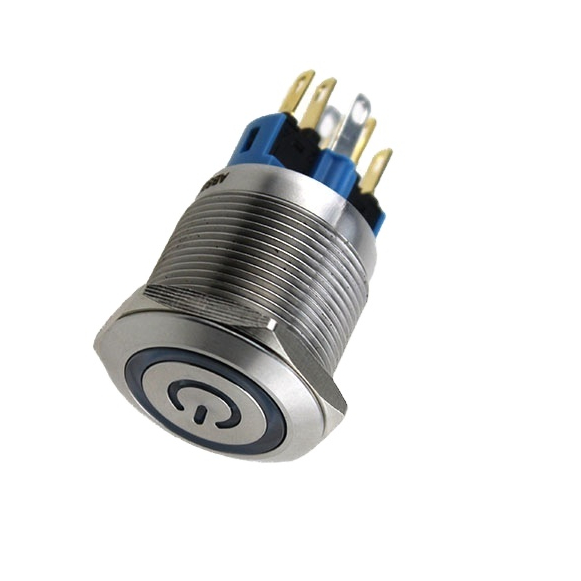

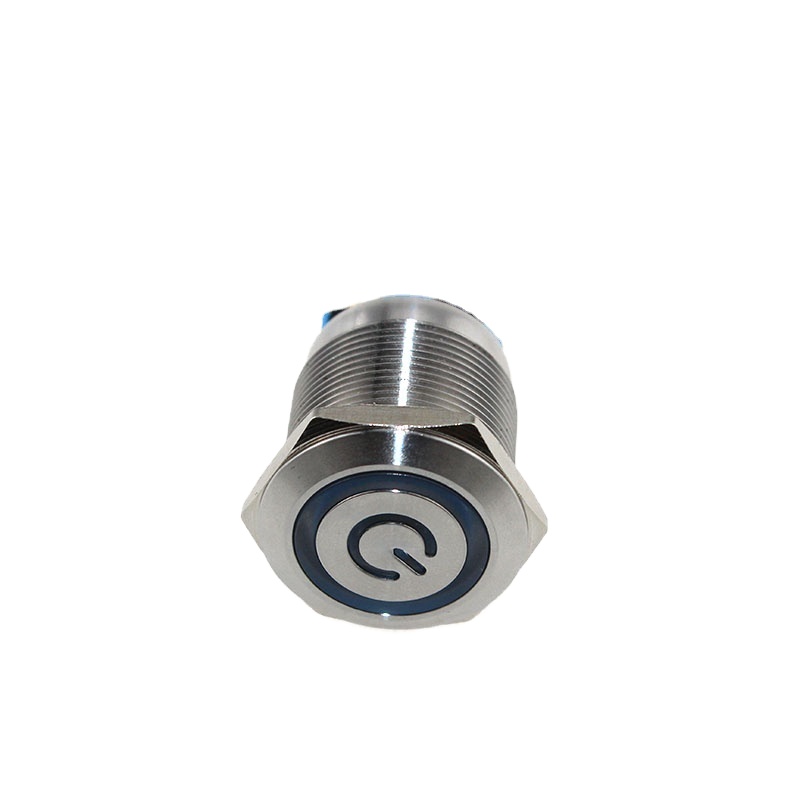

YUMO ABS22S-C11Z-E 22mm Flat type Metal Push Button Switch with LED lamp

Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
  • ABS22S-C11Z-E

  • YUMO

  • China

  • maximum voltage: 250V

  • Indicator light

  • CE

  • Industrial Automation

  • Maximum current:5A

Availability:

         YUMO ABS22S-C11Z-E 22mm Flat type  Metal Push Button Switch  with LED lamp


Features


  • With the stability of the connection performance, the use of security equipment

  • Beautiful, high end, fasion design

  • Medical grade imported stainless steel material, environmental protection is beautiful with no rust

  • Protection performance IP67, waterproof, dusct can be conpetent for the harsh environment

  • Compact design, compact size, can be used for any small euipment

Metal Push Button Switch


Product information

model number ABS22S-C11Z-E
hole diameter(mm) 22
material stainless steel
key type flat
switch combination 1NO1NC
lamp type ring illuminated
lamp color blue
lamp voltage 5V
contacts DPDT
protection IP67
action latching
