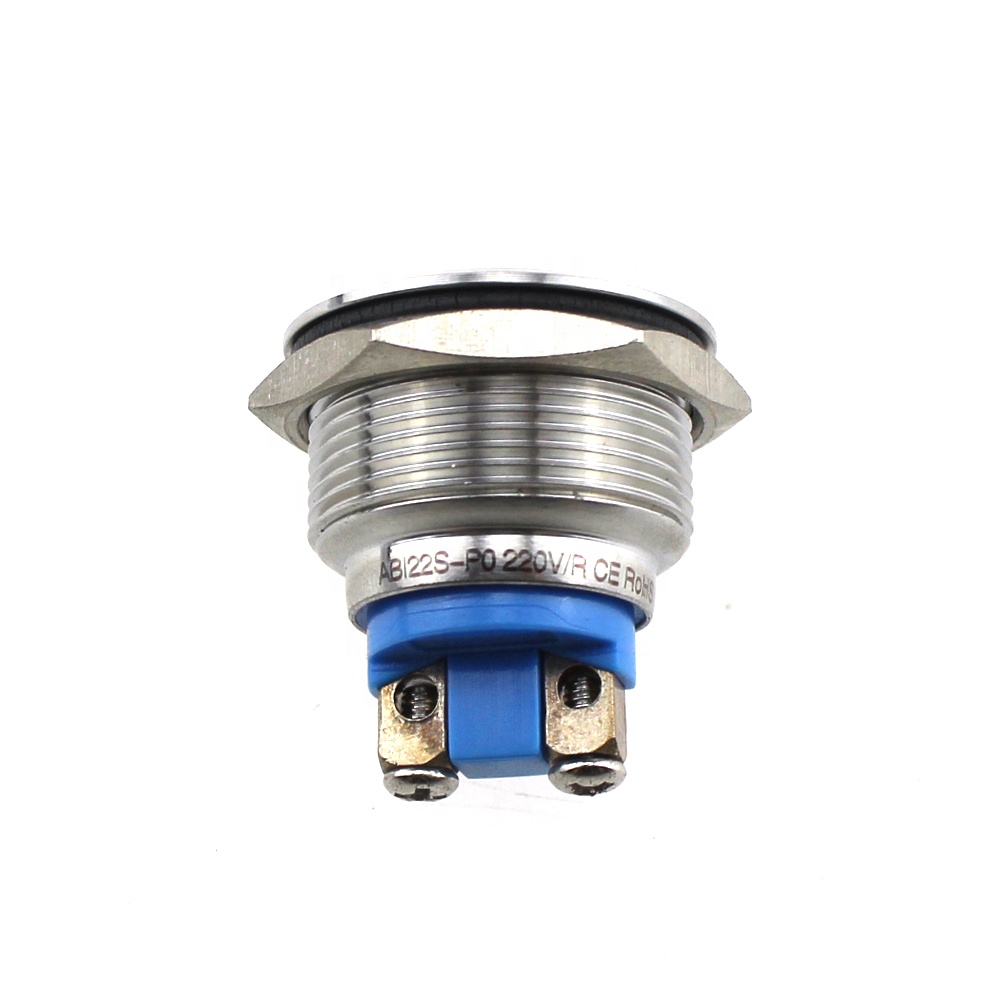

ABI22S-P0 RED LED IP67 metal Indicator signal lamp metal push button switch

Metal Switch Features
1.With the stability of the connection performance,the use of security equipment.
2.Beautiful,high end ,fashion design
3.Medical grade imported stainless stell material,environmental is beautiful with no rust.
4.Protection performance IP67,waterproof,dust can be competent for the harsh environment.
5.Compact design,compact size,can be used for any small equipment.

ABI	Size	Material	Head type	Connection mode	Lamp type	Lamp color	Lamp voltage
Single code	06mm	C:Chromium plated brass	P:flat	11:1NO1NOC	D:Center point	R:Red	AC/DC
	08mm		G:High	1:1NO/1NC (Welding)	D:Center point	G:Green	3V
	12mm		Q:Ball	1:1NO/1NC (Welding)	E:Ring lamp	Y:Yellow	6V
	16mm	A:Zinc alloy plated chromium	M:Mushroom	0:Two bit terminal	E:Ring lamp	B:Blue	12V
	19mm		M:Mushroom	0:Two bit terminal	C:Power mark	W:White	24V
	22mm			00:Four bit terminal	C:Power mark		36V
	25mm	S:Stainless steel		00:Four bit terminal	T:Custom patterm		48V
		S:Stainless steel			T:Custom patterm		110V
		P:Plastics					120V

Parameter	ABI22S-P0
Diameter	22mm
Type	LED
Color	R G Y O B W P RG RB
Voltage Rating	≤220V
Rated Current	About 15mA
Rated Current	About 15mA
The Crust Material	S/Stainless steel
The Crust Material	S/Stainless steel
IP Degree	IP68, IK10

Indicator signal lamp LED Indicator Light signal lamp metal push button switch metal push button 22mm metal push button switch metal push button switch led
