Metal Switch Features
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
ABS22S-P11Z-E
YUMO
China
maximum voltage: 380A
CE
industry cabinet, household appliances and so on.
Maximum current：3A

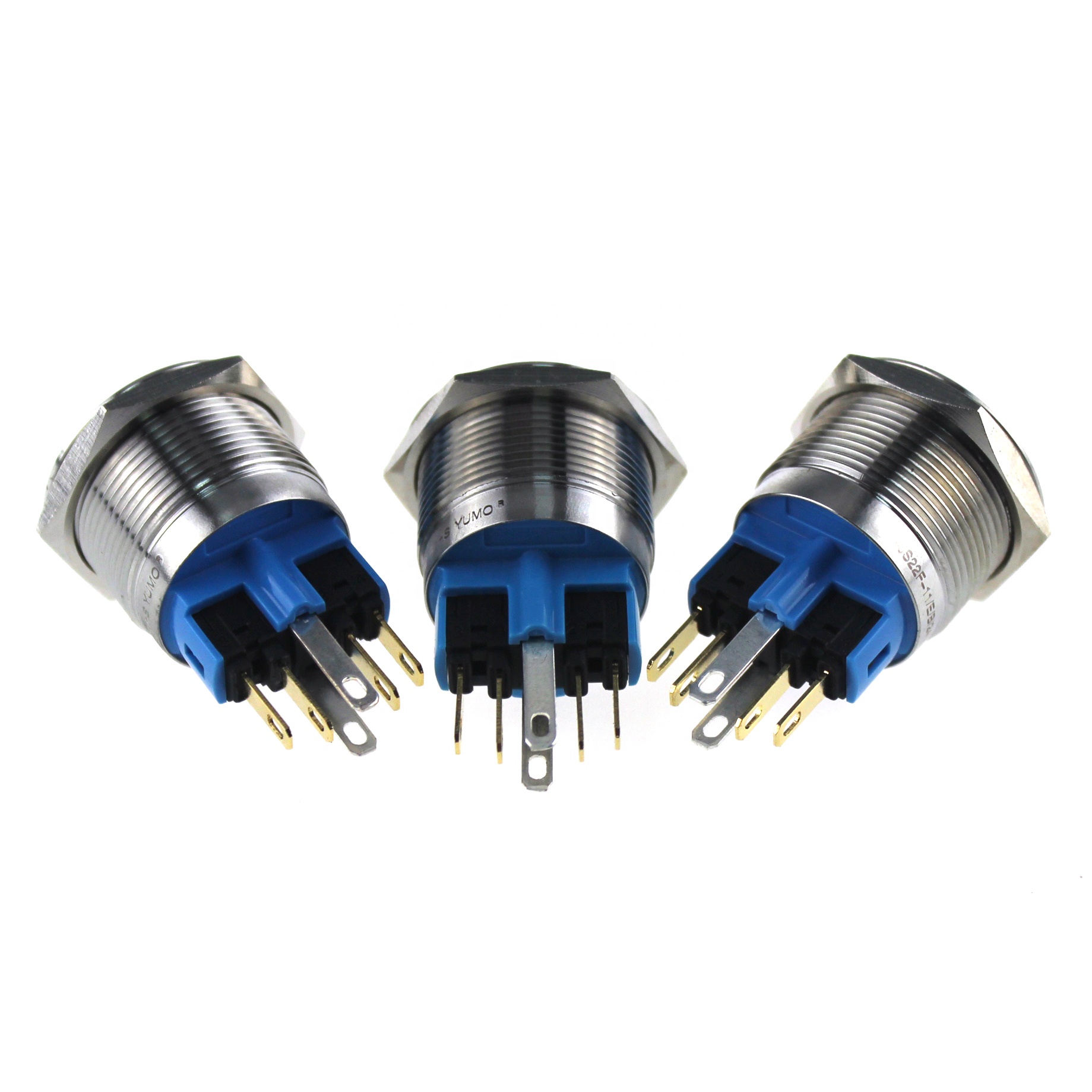

22mm install size ABS22S-P11Z-E latching IP67 push button switch
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABS22S-P11Z-E |
Diameter | 22mm |
Switch Rating | 5A/250VAC |
Contact Configuration | 1NO |
Operation Type | Latching |
The Front Shape | flat |
The Crust Material | Stainless steel/ Copper plating |
IP Degree | IP67, IK10 |
22mm install size ABS22S-P11Z-E latching IP67 push button switch
ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
19mm | C:Power mark | W:White | 24V | ||||
22mm | 00:Four bit terminal | 36V | |||||
25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
110V | |||||||
P:Plastics | 120V |
Parameter | ABS22S-P11Z-E |
Diameter | 22mm |
Switch Rating | 5A/250VAC |
Contact Configuration | 1NO |
Operation Type | Latching |
The Front Shape | flat |
The Crust Material | Stainless steel/ Copper plating |
IP Degree | IP67, IK10 |
