ABS22S-P11-E
YUMO
China
maximum voltage: 250V
CE
industry cabinet, household appliances and so on.
Maximum current：5A

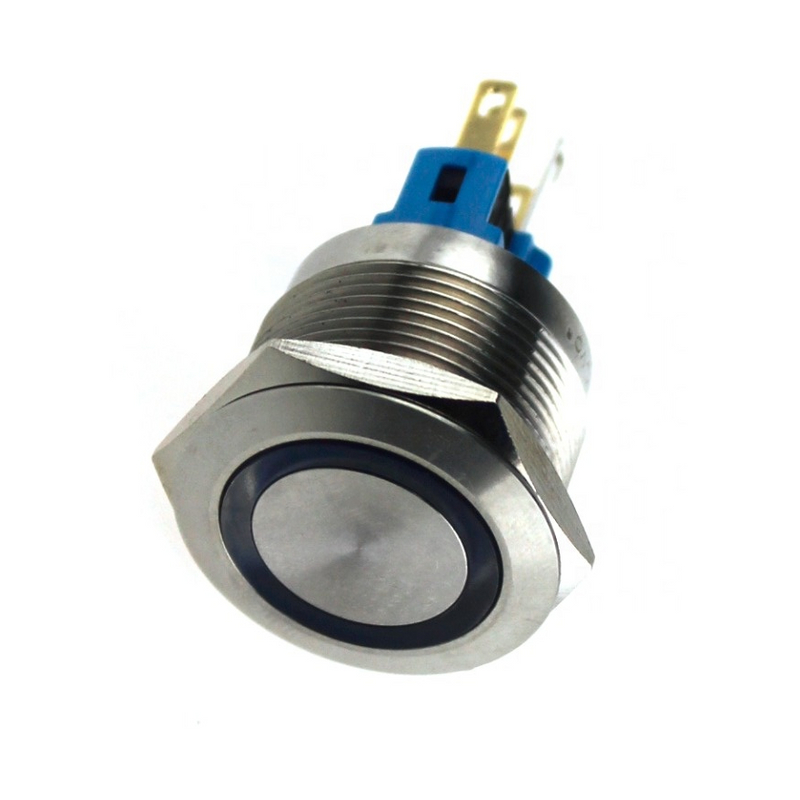

ABS22S-P11-E 22mm momentary switch LED metal push button switch
With the stability of the connection performance,the use of security equipment.
Beautiful,high end ,fashion design
Medical grade imported stainless stell material,environmental is beautiful with no rust.
Protection performance IP67,waterproof,dust can be competent for the harsh environment.
Compact design,compact size,can be used for any small equipment.
| ABS | Size | Material | Head type | Connection mode | Lamp type | Lamp color | Lamp voltage |
| Metal Switch | 06mm | C:Chromium plated brass | P:flat | 11:1NO1NOC | D:Center point | R:Red | AC/DC |
| 08mm | G:High | 1:1NO/1NC (Welding) | G:Green | 3V | |||
| 12mm | Q:Ball | E:Ring lamp | Y:Yellow | 6V | |||
| 16mm | A:Zinc alloy plated chromium | M:Mushroom | 0:Two bit terminal | B:Blue | 12V | ||
| 19mm | C:Power mark | W:White | 24V | ||||
| 22mm | 00:Four bit terminal | 36V | |||||
| 25mm | S:Stainless steel | T:Custom patterm | 48V | ||||
| 110V | |||||||
| P:Plastics | 120V |
| Parameter | ABS22S-P11-E | |
| Diameter | 22mm | |
| Color | R G Y O B W P RG RB | |
| Switch Rating | 5A/250VAC | |
| Contact Configuration | 1NO 1NC/2NO 2NC | |
| Operation Type | Momentary/Maintained(Z) | |
| The Front Shape | Flat | |
| Lamp type | Ring llluninated(LED) | |
| The Crust Material | Stainless steel/Copper plating | |
| IP Degree | IP67, IK10 | |
