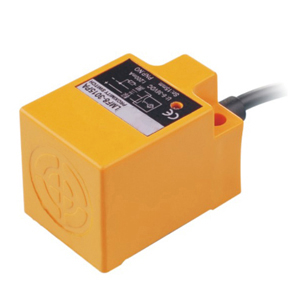

LMF8 Inductive proximity switches sensors

  • LMF8
  • YUMO
  • YM0000000014
Availability:

Tecnical Parameter:

DETECTION   DISTANCE             10MM
Flush DC 10-30V NPN NO LMF8-3010NA
NC LMF8-3010NB
NO+NC LMF8-3010NC
PNP NO LMF8-3010PA
NC LMF8-3010PB
NO+NC LMF8-3010PC
two wire   system NO LMF8-3010LA
NC LMF8-3010LB
AC 90-250V SCR   Control-lable silicon NO LMF8-2010A
NC LMF8-2010B
NO+NC LMF8-2010C
Relay   output

DETECTION   DISTANCE                                                    15MM
Non-Flush DC 10-30V NPN NO LMF8-3015NA
NC LMF8-3015NB
NO+NC LMF8-3015NC
PNP NO LMF8-3015PA
NC LMF8-3015PB
NO+NC LMF8-3015PC
two wire   system NO LMF8-3015LA
NC LMF8-3015LB
AC 90-250V SCR   Control-lable silicon NO LMF8-2015A
NC LMF8-2015B
NO+NC LMF8-2015C
Relay   output
Controloutput DC 200mA
SCR/   Relay 500mA
Output   voltagc dropDC/AC NPN/PNP<   3V, Two wire< 3.9V, AC< 10V
Consumption   current DC< 15mA,   AC< 10mA
Standard   detected object 45*45*1(A3   iron)
Repeated   precision 0.05
DC/AC 100HZ/15HZ
Working   environment temperature -25~+70º C
Insulation   resistance 50MΩ
Shell   material ABS Resin
Protection   grade IP67
Altemative   model at home and abroad

Dimension:
