Product Description

Tecnical Parameters:

DETECTION DISTANCE
Flush	DC 10-30V	NPN	NO
			NC
			NO+NC
		PNP	NO
			NC
			NO+NC
		two wire system	NO
			NC
	AC 90-250V	SCR Control-lable silicon	NO
			NC
			NO+NC
		Relay output
	DETECTION DISTANCE 1-20MM
Non-Flush	DC 10-30V	NPN	NO	LMF36-3020NA
			NC	LMF36-3020NB
			NO+NC	LMF36-3020NC
		PNP	NO	LMF36-3020PA
			NC	LMF36-3020PB
			NO+NC	LMF36-3020PC
		two wire system	NO	LMF36-3020LA
			NC	LMF36-3020LB
	AC 90-250V	SCR Control-lable silicon	NO	LMF36-2020A
			NC	LMF36-2020B
			NO+NC	LMF36-2020C
		Relay output		LMF36-2020JC
Controloutput		DC		200mA
		SCR/ Relay		500mA
Output voltagc dropDC/AC				NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current				DC< 15mA, AC< 10mA
Standard detected object				50501(A3 iron)
Repeated precision				0.2
DC/AC				500HZ/15HZ
Working environment temperature				-25~+70º C
Insulation resistance				50MΩ
Shell material				ABS Resin
Protection grade				IP67
Altemative model at home and abroad

Dimensions:

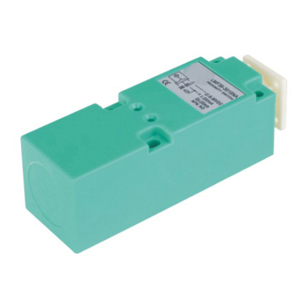

LMF36 Inductive proximity sensors

DETECTION DISTANCE
Flush	DC 10-30V	NPN	NO
NC
NO+NC
PNP	NO
NC
NO+NC
two wire system	NO
NC
AC 90-250V	SCR Control-lable silicon	NO
NC
NO+NC
Relay output
	DETECTION DISTANCE 1-20MM
Non-Flush	DC 10-30V	NPN	NO	LMF36-3020NA
NC	LMF36-3020NB
NO+NC	LMF36-3020NC
PNP	NO	LMF36-3020PA
NC	LMF36-3020PB
NO+NC	LMF36-3020PC
two wire system	NO	LMF36-3020LA
NC	LMF36-3020LB
AC 90-250V	SCR Control-lable silicon	NO	LMF36-2020A
NC	LMF36-2020B
NO+NC	LMF36-2020C
Relay output	LMF36-2020JC
Controloutput	DC	200mA
SCR/ Relay	500mA
Output voltagc dropDC/AC	NPN/PNP< 3V, Two wire< 3.9V, AC< 10V
Consumption current	DC< 15mA, AC< 10mA
Standard detected object	50501(A3 iron)
Repeated precision	0.2
DC/AC	500HZ/15HZ
Working environment temperature	-25~+70º C
Insulation resistance	50MΩ
Shell material	ABS Resin
Protection grade	IP67
Altemative model at home and abroad
