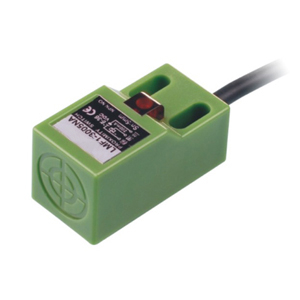

LMF1 Inductive proximity switches sensors

  • LMF1
  • YUMO
  • YM000000006
Availability:

OVERALL DIMENSIONS
LMF1 Inductive proximity switches sensors

      DETECTION DISTANCE                             5mm

F
l
u
s
h

DC
10-
30
VDC



AC
90-
250
VAC
NPN NO LMF1-3025NA
NC LMF1-3025NB
NO+NC
PNP NO LMF1-3025PA
NC LMF1-3025PB
NO+NC

two wire
system
NO LMF1-3025LA
NC LMF1-3025LB
SCR

Control-
lable
silicon
NO
NC
NO+NC
Relay output

     DETECTION DISTANCE

F
l
u
s
h

DC
10-
30
VDC



AC
90-
250
VAC
NPN NO
NC
NO+NC
PNP NO
NC
NO+NC
two wire
system
NO
NC
SCR

Control-
lable
silicon
NO LMF1-2025A
NC LMF1-2025B
NO+NC
Relay output
Control output DC 200mA
SCR/ Relay 300mA
  Output voltage dropDC/AC  DC<3VAC<10V
  Consumption current DC<15mAAC<10mA
  Standard detected object 20X20X1(A3 iron)
  Repeated precision 0.02
  DC/AC 400Hz/25Hz
  Working environment temperature -25+75
  Insulation resistance 50MΩ
  Shell material ABS Resin
  Protection grade IP67
  Altemative model at home and abroad SN04-N
