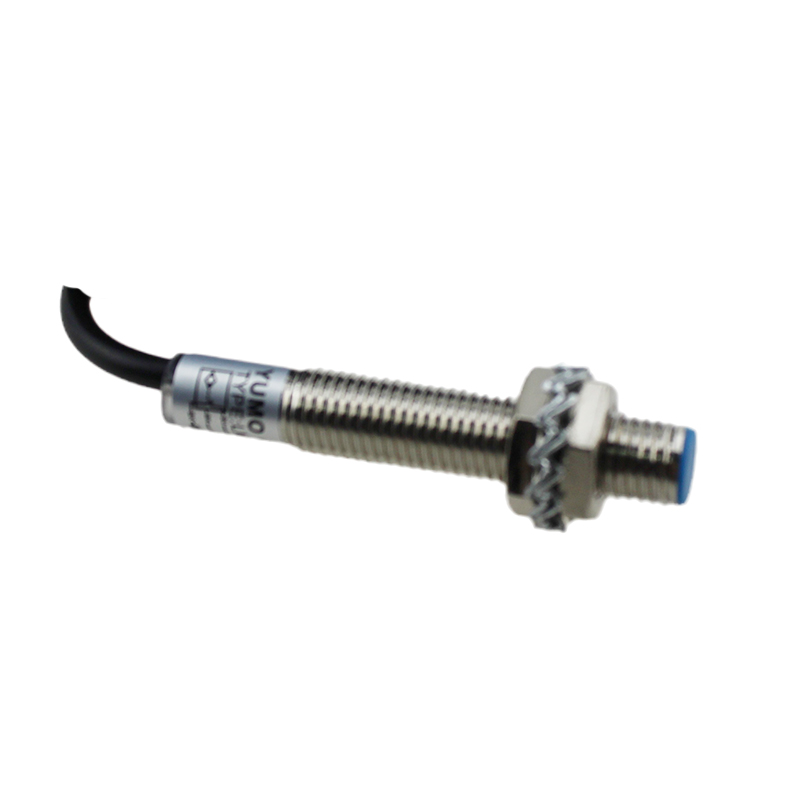

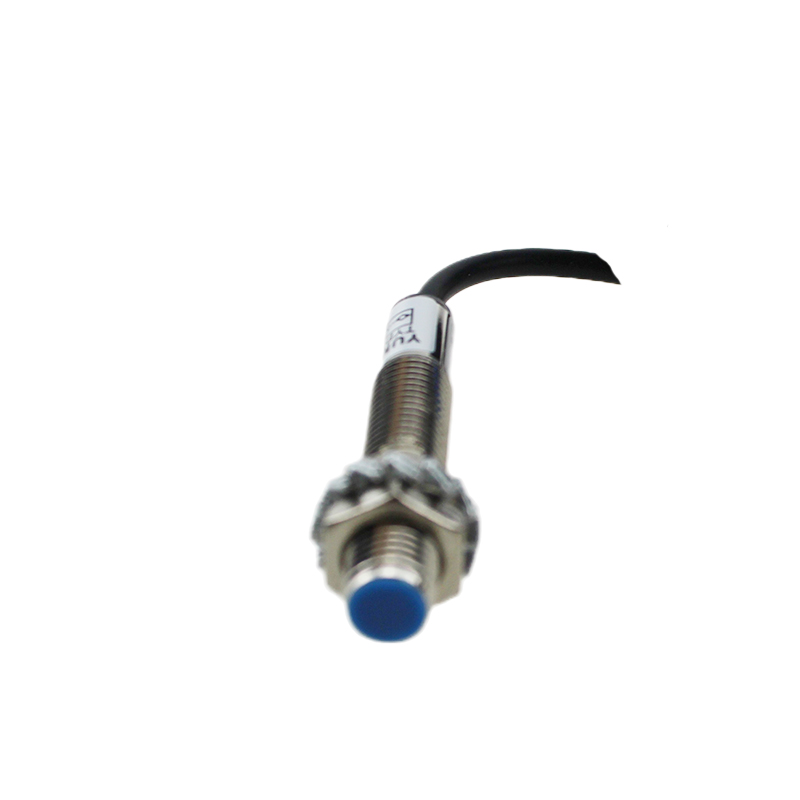

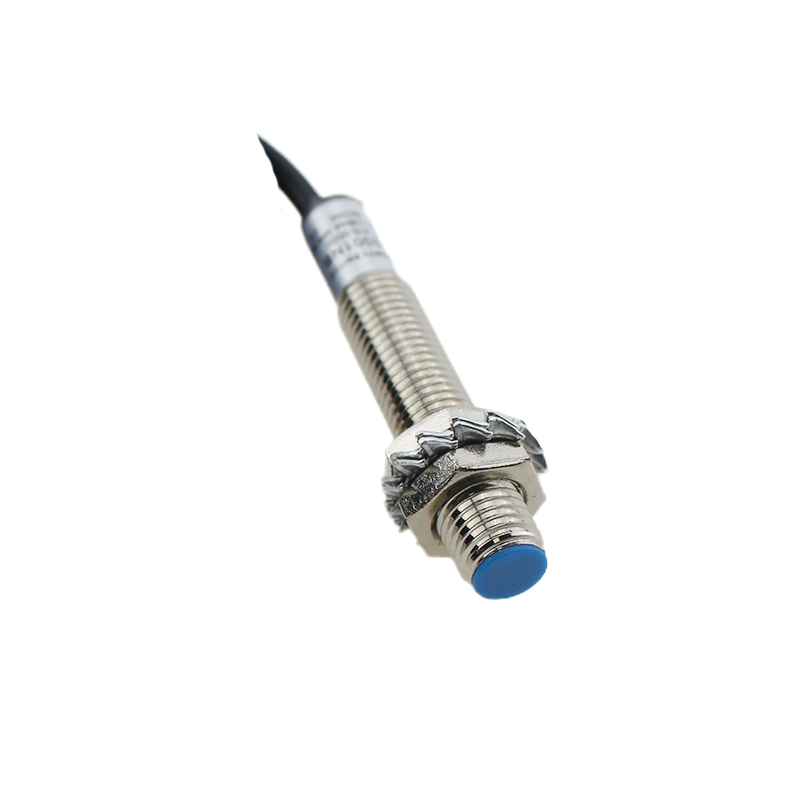

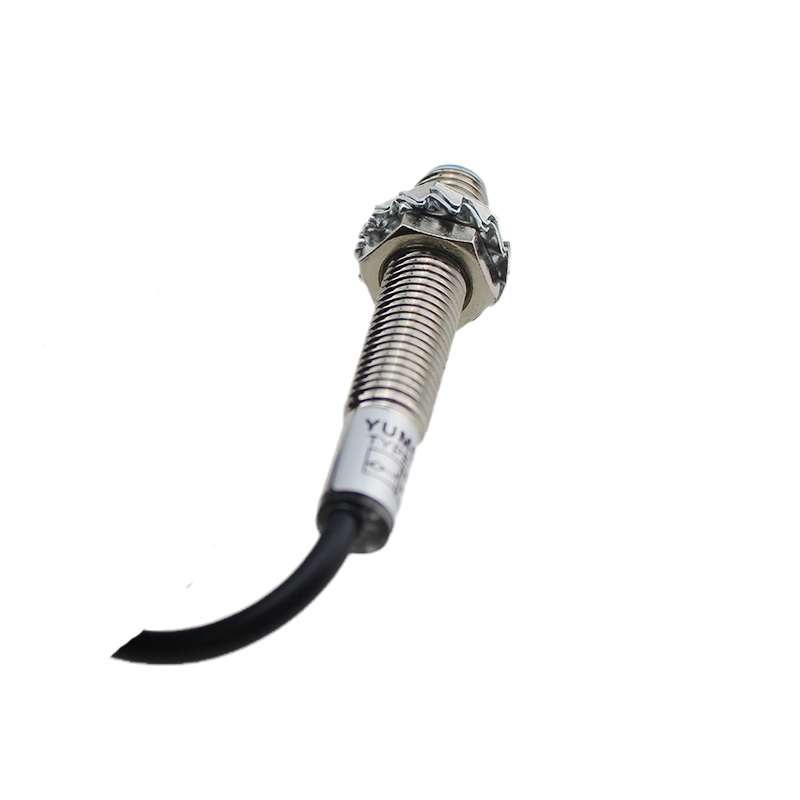

LM8-3001NB Proximity Switch NPN DC10-30V Inductive Proximity Sensor

Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life
  • LM8-3001NB

  • YUMO

  • LM8.pdf

Availability:

LM8-3001NB Proximity Switch NPN DC10-30V Inductive Proximity Sensor

Main Features of proximity switch
1.Compact volume
2.High precision of repeated location
3.Diversified exterior structures
4.Good performance of anti-interference
5.Many output forms
6.High on-off frequency
7.Wide voltage range
8.Dust proof, vibtation proof, water proof and oil proof
9.With short-circuit protection and inverted connecting protection
10.Long service life

接近开关系列选型图


Model LM8-3001NB
Controloutput DC 200mA
Detection distance 1mm
Protection grade IP67
Working environment temperature -25°C~+75°C
Shell material Metal
Insulation resistance ≥50MΩ
Repeated precision 0.01
Standred detected object 8x8x1(A3iron)
DC/AC response frequency 500Hz


LM8接近开关尺寸图
