DETECTION DISTANCE                           15mm

Non-embedded

Flush

DC10-30
VDC


AC90-250
VAC

NPN

NO

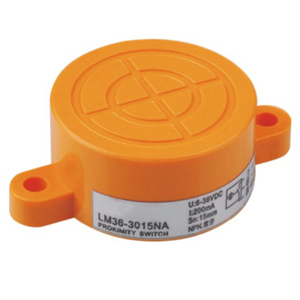

LM36-3015NA

NC

LM36-3015NB

NO+NC

LM36-3015NC

PNP

NO

LM36-3015PA

NC

LM36-3015PB

NO+NC

LM36-3015PC

two wire
system

NO

LM36-3015LA

NC

LM36-3015LB

SCR
Control

-lablesilicon

NO

LM36-2015A

NC

LM36-2015B

NO+NC

Controloutput

DC

200mA

SCR/ Relay

300mA

 Output voltagc dropDC/AC

DC (NPN PNP) type 3V or less, second line: 3.9V or less, AC AC 10V or less DC<3V, AC <10V

  Consumption current

DC (15mA) at 24V, AC AC 10mA or less DC<15mA, AC <10mA (DCN)

 Standard detected object

45X45X1(A3iron)

  Repeated precision

0.05

  DC/AC

200Hz/10Hz

 Working environment

temperature

-25℃～+75℃

  Insulation resistance

50MΩ

  Shell material

ABSResin

  Protection grade

IP67

  Altemative model at home

and abroad
