GT
YUMO
YM0000684

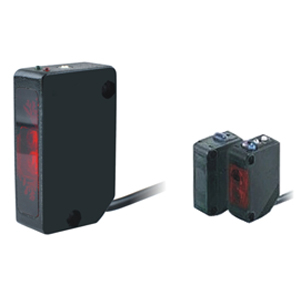

The photoelectric sensor is a sensor using a photovoltaic element as a detection element. It first converts the measured change into a change in the optical signal, and then further converts the optical signal into an electrical signal by means of the photovoltaic element. Photoelectric sensor is generally composed of light source, optical path and optoelectronic components of three parts.
Technical parameters
Test type | Long-distance contrast type | Contrast type | Short-distance contrast type | Diffuse reflection | Wide beam diffused reflection type | Long-distance contrast type |
| Model | GT-1000/GT-1000P | GT-500/GT-500P | GT-200/GT-200P | GT-10/GT-10P | GT-40/GT-40P | GT-80/GT-80P |
| Power supply | 10-24V ±10% 10-24V ±10%Fluctuation | |||||
Consumption current | Below 55 mA light receiver 30Ma,Receiver.25mA | <30mA Less than 30mA | <30mA Less than 30mA | <30mA Less than 30mA | <30mA Less than 30mA | |
Scanning distance | 10m | 5m | 2m (reflective type) | 1-100mm | 400mm | 800mm |
Standard sensing object | φ9mm | φ60mm( reflective type) | ||||
Angle of direction | - | - | 10×10cm(white paper) | 20×20cm(white paper) | 20×20cm(white paper) | |
| Response Output | 1ms Movement and reposition less than 1ms | |||||
Smooth the illumination | 2000Lux Incandescent lamp:less than 5,000Lux;sunlight:less than 20,000Lux | |||||
Use of humidity range | -20~+70℃no frosting and condesation | |||||
Use of humidity range | 35-85%RH | |||||
Insulated resistance | >20MΩ | |||||
Voltage resistance | AC1000V 50/60Hz | |||||
Vibration resistance | 10-55hz 10-55Hz peak1.5mmto wards X,Y and Z respectively for 2 hours | |||||
Concussion resistance | 500m/s towards X,Y and Z respectively | |||||
Protection level | IP66 (IEC specification) | |||||
| Circuit protection | Prevent error output when power supply is reserve connecting protection,through/cutoff(approximately 100ms) | |||||
