DK22 2 Or 3 Channel Kit Optical Encoder Hollow Shaft Incremental Motor Servomotor Encoder

◆ Features ● Miniature size, easy assembling ● 2 quadrature output channel (A&B) + index signal ● Resolution up to 1024 ppr
  • DK22
  • YUMO
  • YM00000020
  • 10
  • China
  • motor serve encoder
  • 5VDC
  • CE RoHS
Availability:

DK22

Note
1. Please contact sales representative to confirm the correctness and availability of the part number

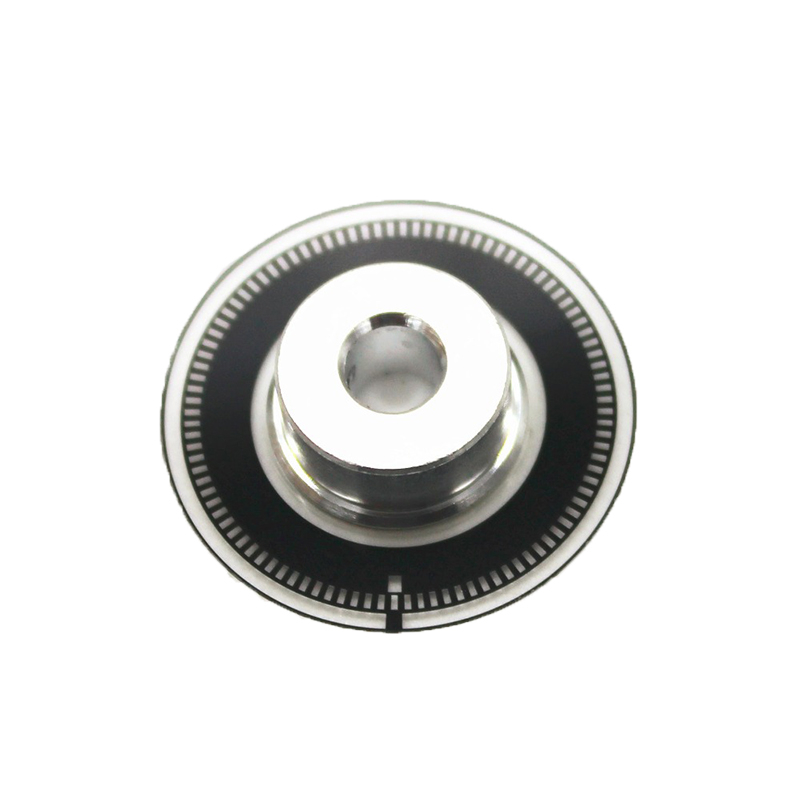

2. If with grating base max hole size 10mm, without grating base max hole size 17mm


Feature

Matrix reading, with high impact resistance, strength capability to error correction high reliability, and installation sizes small, wide range of resolution, do not require the signal conditioning. Assembly requirements are less, and has compensation ability of motor shaft radial and axial shifting, widely used in the DC motor, with a multi-aperture for selection.



Technical Specification


Specification Code Metal grating Metal grating Glass grating

Storage temperature

Ts
-40~100℃ -40~85℃ -40~100℃
Working temperature TA -40~100℃ -40~85℃ -40~100℃
Speed - 30,000RPM 30,000RPM 12,000RPM
Humidity - - Non condensing -
Accelerated speed - 250,000Rad/Sec2 250,000Rad/Sec2 100,000Rad/Sec2
Disk thickness T >=0.05mm 0.178mm >=0.6mm


Dimension
DK22 dimension
