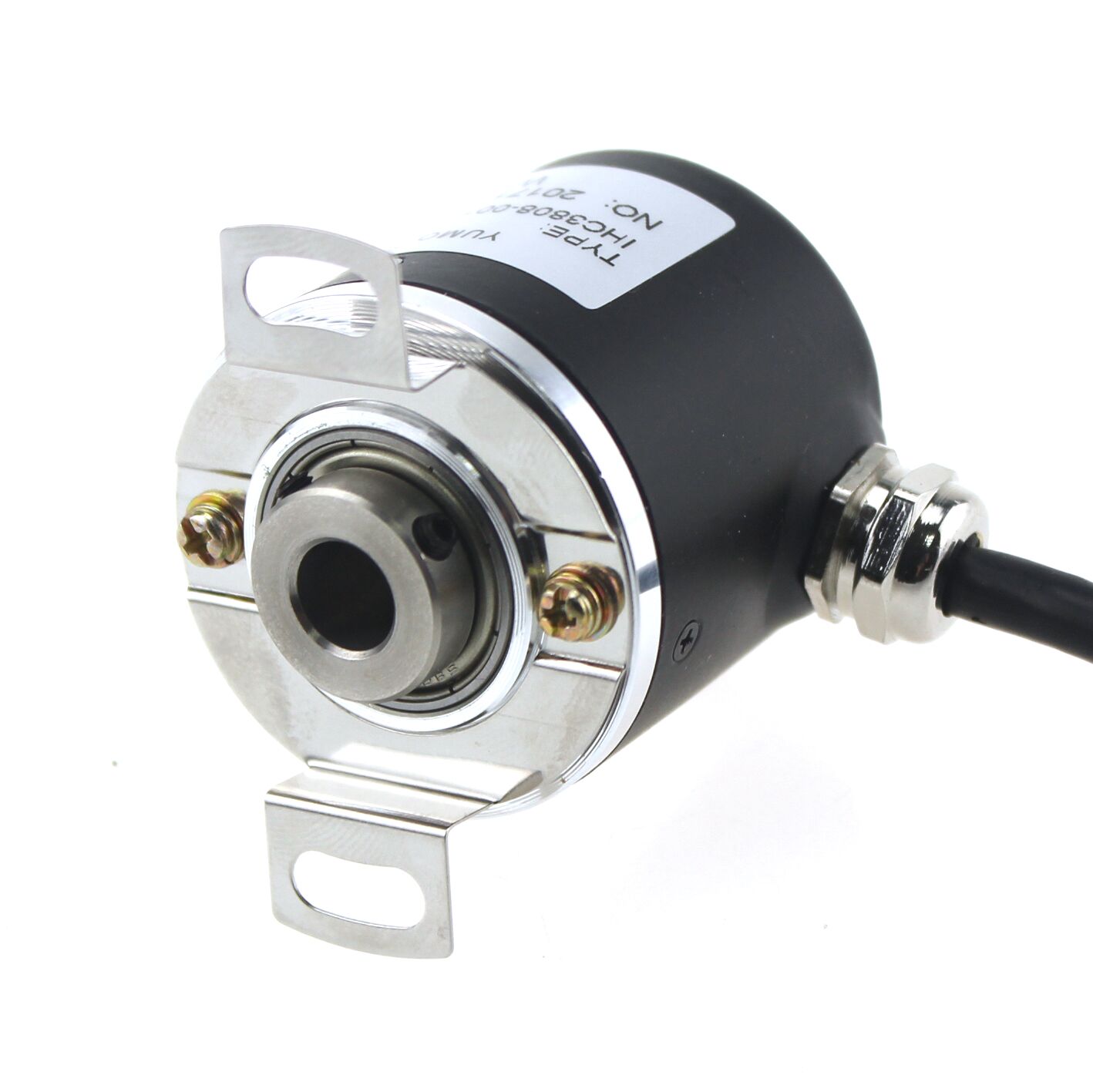

AHC3806 10bit 13bit output SSI hollow shaft Absolute Encoder

It is suitable for automated measurement and automatic control system. it can measure angular displacement and placed speed. And can be measured values in circulation binaries or natural binaries to output
  • AHC3806

  • YUMO

  • YM001234

Availability:

 Application

● Automated measurement and automatic control system . Measure the angular displacement and placed speed. The measured value could be output with naturel binaries by the encoder.

 Features

High strong anti-interference , wont be affect by power off or system shut off and start

 Dust proof, and moisture proof, high shock and vibration resistance


Code specification:
3806

Specification parameter:

code Bit Point for Round Angle Distinguish Output Code Carry Direction Accuracy
AHC3808-S01G0013 13 S192 360°/213 Natural binary shaft and according to the clock wise(CW) ±15°
AHC3808-S01G0012 12 4096 360°/212 Natural binary shaft and according to the clock wise(CW) ±15°
AHC3808-S01G0011 11 2048 360°/211 Natural binary shaft and according to the clock wise(CW) ±15°
AHC3808-S01G0010 10 1024 360°/210 Natural binary shaft and according to the clock wise(CW) ±15°


Electrical parameters:

Classification
project
power voltage Outcoming signal current consumption output Waveform Rise/Fall Time Response Frequency Insulation Resistance
High level(v) Low level(v) permissible Injection current <100mA <US 0-1m >100mΩ
Absolute Code 5 ≥2.5 ≤1 mA


CONNECTION TABLE

Cable color Red Bla Green White Yellow Brown Grey orange Shield
Signal(voltage) Vcc ov Clock Date Spare - - Spare shell
Signal(Drive TTL) Vcc ov Clock Date Spare -   Spare shell



Mechanical characteristics:

Permissible mechanical revolution Starting torque25° Axial load
0-6000r/min 2×10-3N/m Axial direction Radial direction
10N 20N


Environmental parameter:

Working temperature Storage temperature Relative humidity Shock resistance Vibration proof
-2580 30~85℃ 30~85% 30m2/s(10-200Hz,x,y,z) 30m2/s(11ms,x,y,z)


Drawing:

3806图纸
