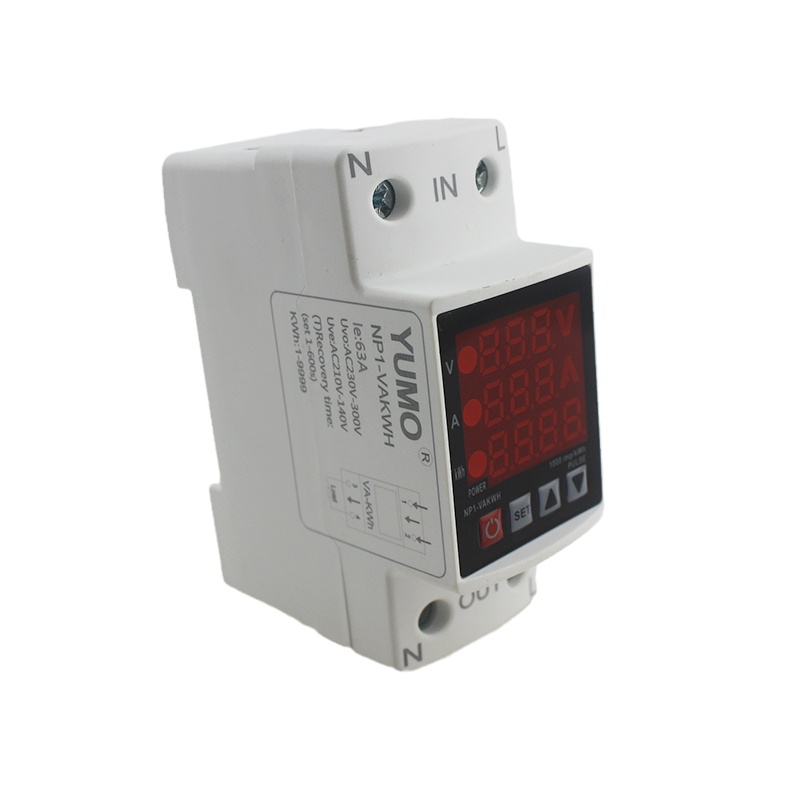

YUMO NP1-VAKWH OVERVOLTAGE AND UNDERVOLTAGE PROTECTOR
Technical Parameter
Rated supply voltage | AC 220V |
Rated frequency | 50/60Hz |
Overvoltage(>U)setting range | 230-300V/OFF |
Kilowatt-hour protection value | 1-9999/oFF |
>U And <U Trip Delay | 0.5S |
Output contact | 1NO |
Mechanical life | 1000000 |
Pollution Degree | 3 |
Proection Degree | IP20 |
Application Method
1. Connect the measure voltage to the 1 and 2 terminal
2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.
3. Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.
4. When power on, the meter display the measure parameters.
5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next.
