YUMO NA-3P Din Rail Display Meter Smart Electrical Meter

The DIN rail display meter is a versatile and essential tool for any industrial or commercial setting. This device is designed to provide accurate and reliable readings of various measurements, including voltage, current, frequency, and temperature. With its compact and durable design, the DIN rail display meter is the perfect solution for space-constrained environments while also ensuring optimal performance.

One of the key advantages of the DIN rail display meter is its ease of installation. This device is designed to be mounted on a standard DIN rail, making it easy to install and remove when necessary. This feature makes it an ideal choice for applications where space is at a premium, such as electrical distribution systems, control panels, and automation equipment.

In addition to its convenient installation, the DIN rail display meter is also highly accurate and reliable. Its advanced sensing technology ensures accurate readings, while its robust construction ensures reliable operation even under challenging conditions. This makes it an ideal choice for demanding industrial and commercial environments.

Another major benefit of the DIN rail display meter is its versatility. This device can be customized to display a wide range of measurements, making it a flexible solution for a variety of applications. Its compact design also ensures that it is portable and can be moved to different locations as needed.

Overall, the DIN rail display meter is an essential tool for any industrial or commercial setting. Its ease of installation, accuracy, reliability, and versatility make it an ideal choice for a wide range of applications. So if you're looking for a high-quality display meter that can meet all of your needs, be sure to consider the DIN rail display meter.
  • NA-3P

  • YUMO

  • 5

  • Zhejiang, China

  • Voltage display

Availability:

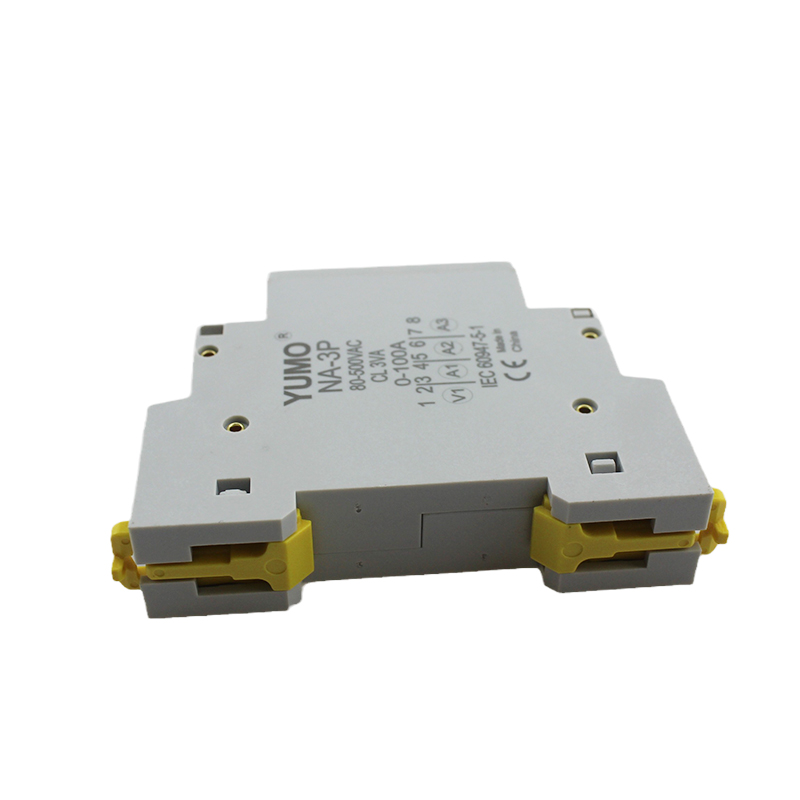

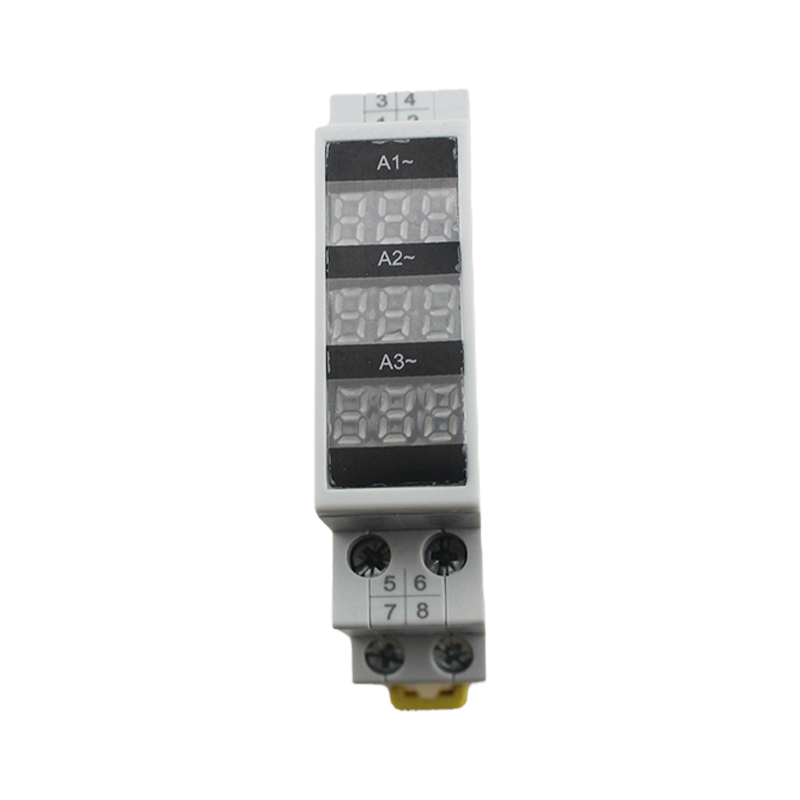

YUMO NA-3P Din Rail Display meter


NA-3P (6)NA-3P (7)

Technical Parameter

Supply Voltage / Frequency Range AC 80V-500V / 50-60HZ
Current Range AC 0-100A
Color Red
Discrepancy Range ± 2%
Rated Insulation Voltage 660V
Sampling Rate 1 time /s
Input loop power consumption ≤2VA
Altitude ≤2000m
Ambient Temperature - 50~55℃
Humidity 50% and 40°C Condensation free
Storage Temperature

- 30℃ ~70℃

Application Method

1. Connect the measure voltage to the 1 and 2 terminal

2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.

3. Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.

4. When power on, the meter display the measure parameters.

5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next.

Product Dimensions

dimensions
