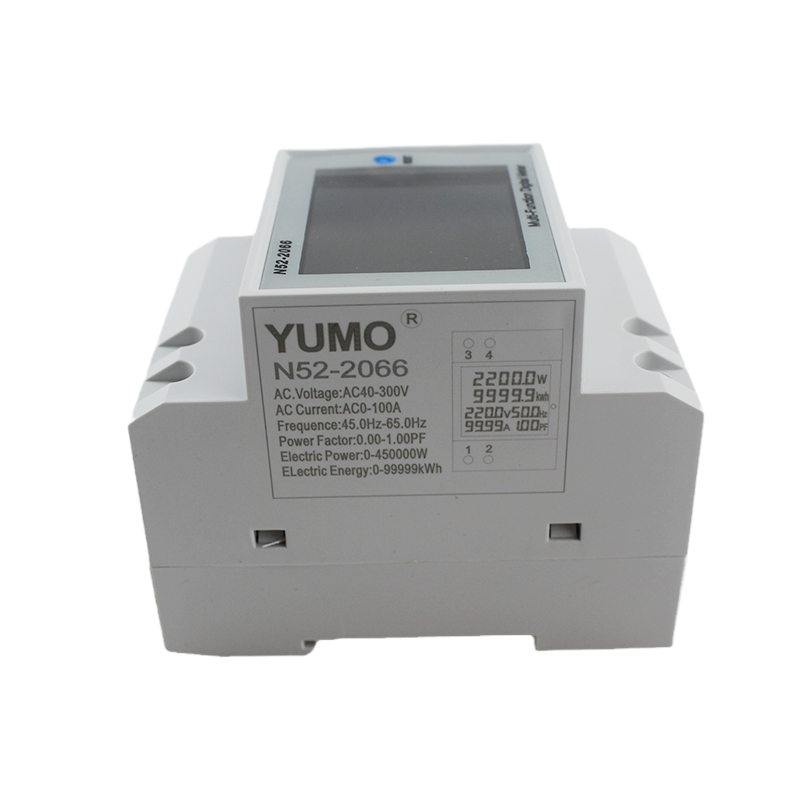

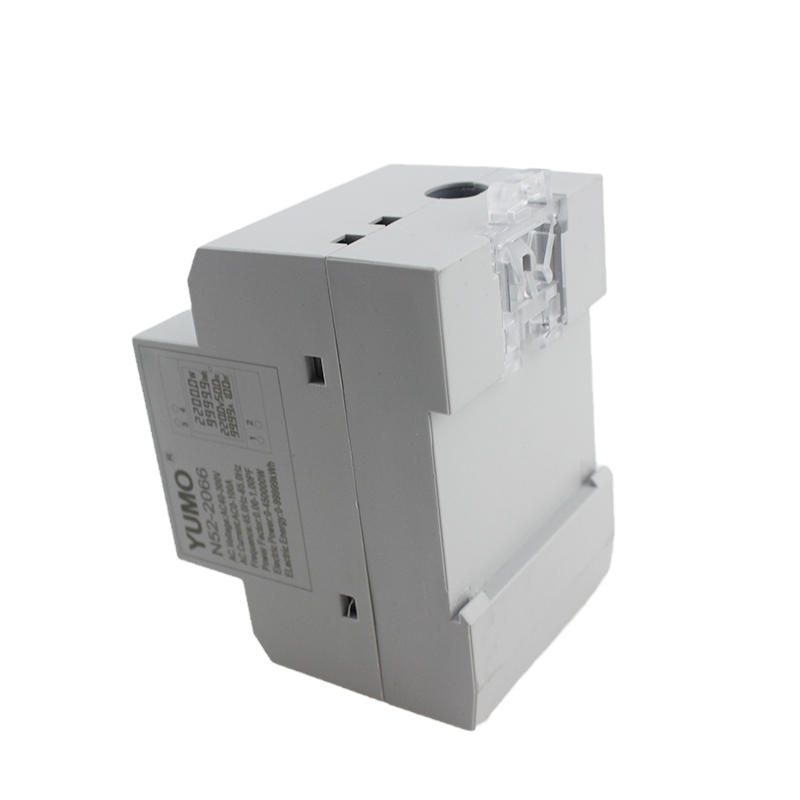

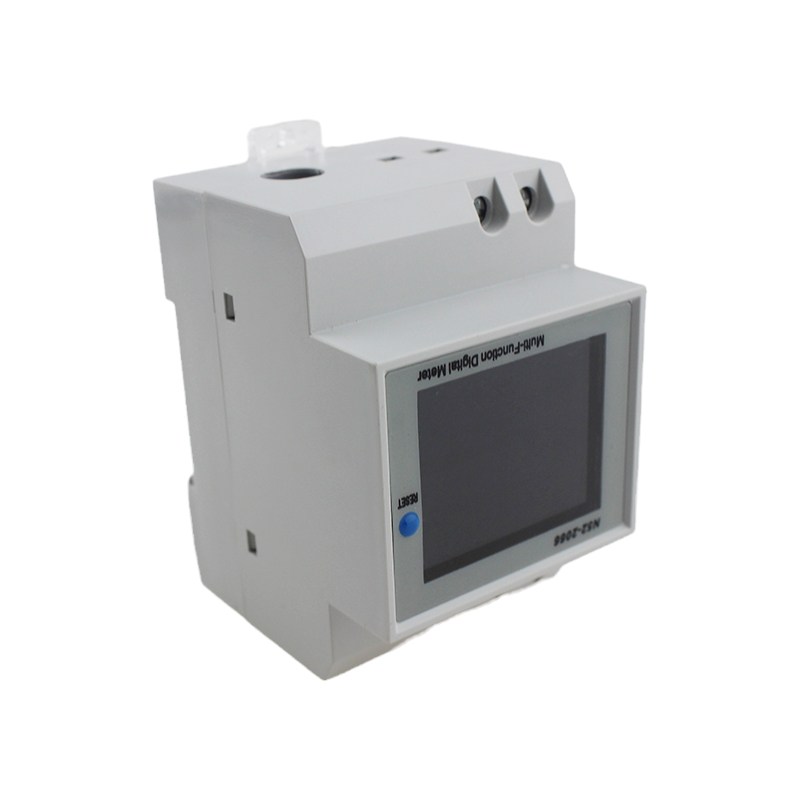

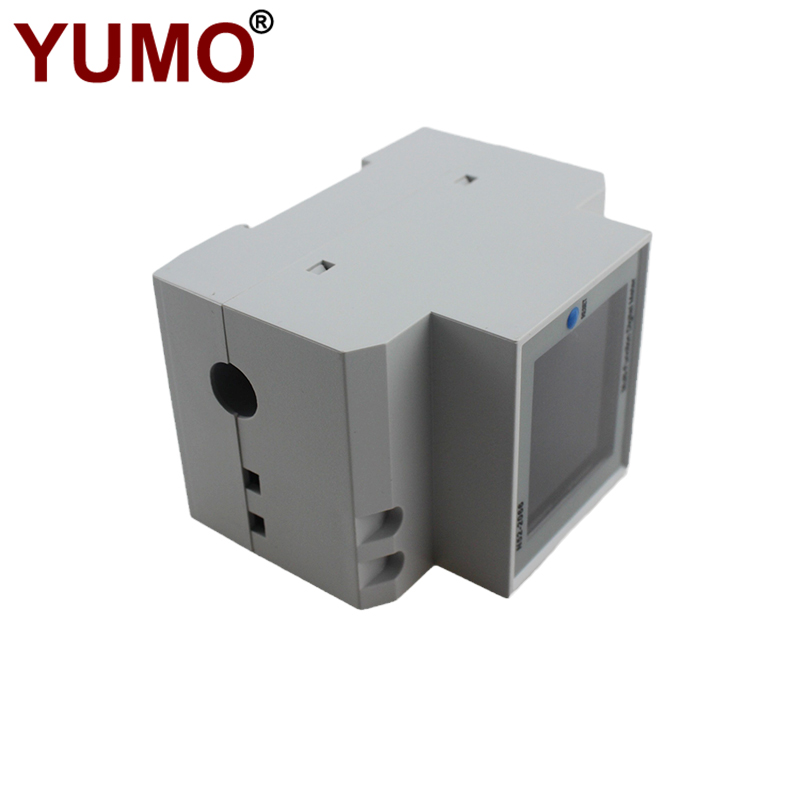

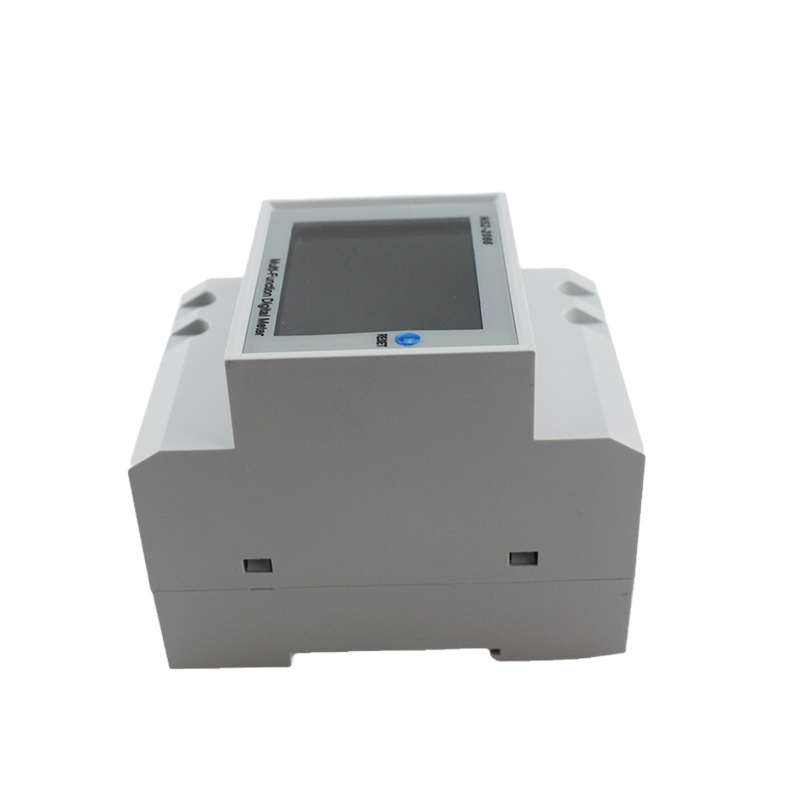

YUMO N52-2066 Din Rail Display meter
Technical Parameter
| Accuracy | 1%±2 words |
| Range | AC voltage: AC 40.0-300.0V or AC 200.0-450.0V(You should select one type of the meter in your order) |
| AC current: 0.1~99.9A (You should order current transformer when current is higher than lOOA independent) | |
| Frequence:45.0Hz-65.0Hz | |
| Power Factor:0.00-1.00PF | |
| Electric Power:0-450000W, the electric power resolution is 0.1W when measure electric power between 0-9999.9W, otherwise the electric power resolution is 1W. | |
| Speed | 2 times per second |
| Installation | Din-rail |
| Size | 54*80*64 mm |
Application Method
1. Connect the measure voltage to the 1 and 2 terminal
2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meter and the direction chose arbitrarily.
3. Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter, and connect the two wires of the secondary transformer to the 3 and 4 terminal.
4. When power on, the meter display the measure parameters.
5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zero and start to cumulate when release the button. And when power off, the meter can save the value of electric energy and go on cumulating data when the meter power-on next.
