Past Name

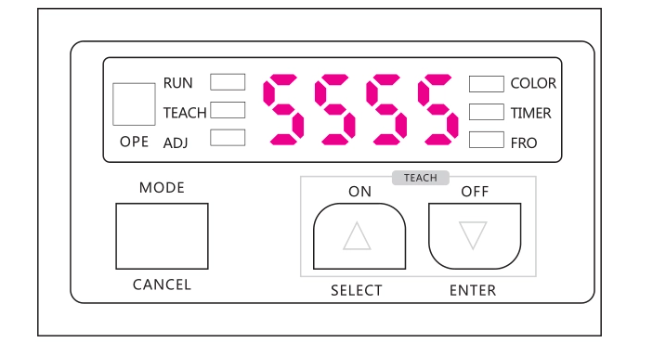

| MODE/CANCEL: Set/Cancel | ON/SELECT: Increase/Select |
| OFF/ENTER: Decrease/Enter | OPE: Model indicator |
| RUN: Run | TEACH: Setting |
| ADJ: Value fine-tuning | COLOR: Mode selection |
| TIMER: Delay selection (output hold or delay) | PRO: Delay Adjustment |

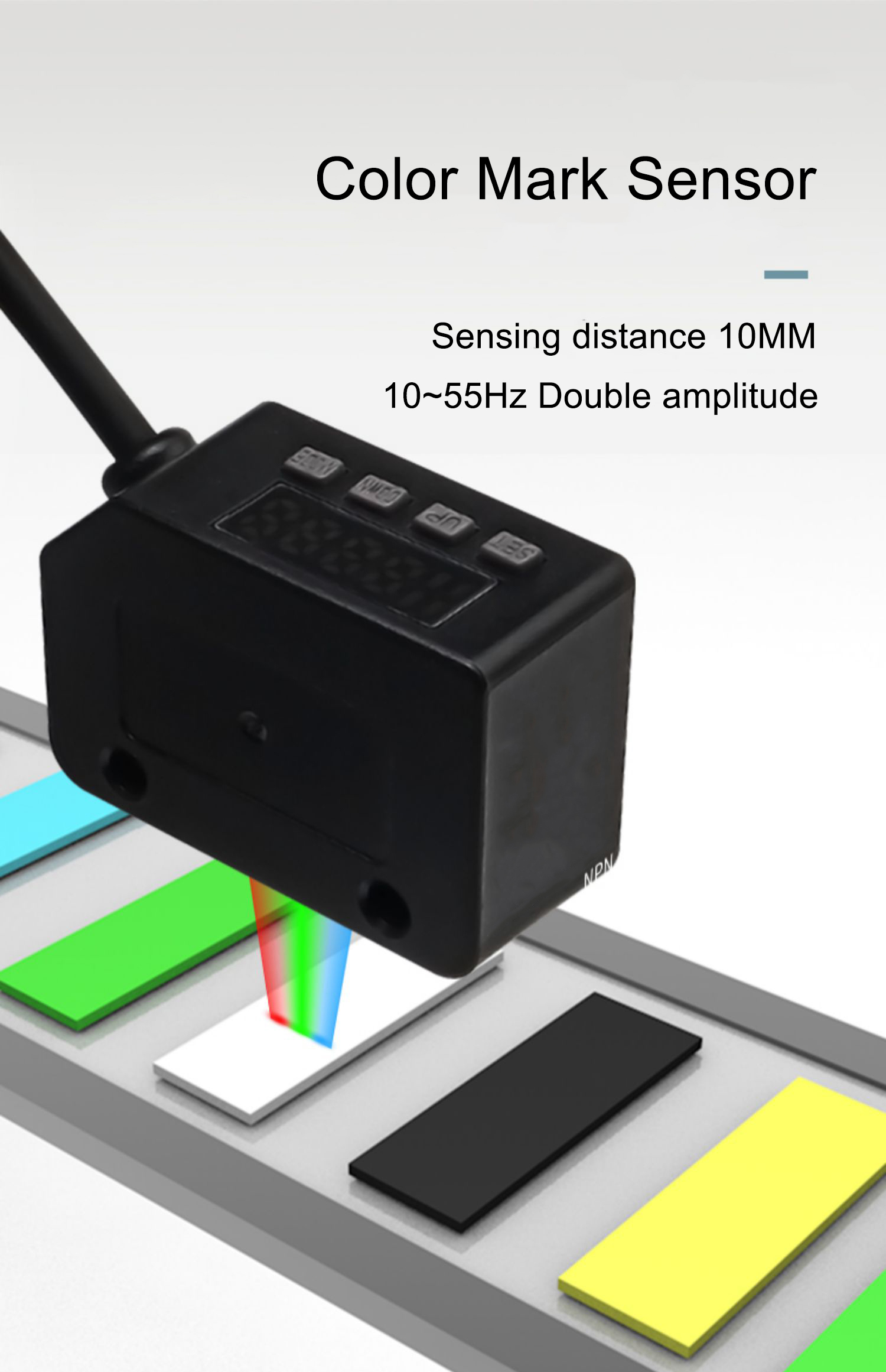

Detection Setting
Fix the sensor parallel to the top of the detected material, the distanceof the electric eye is 10mm (+3mm) from the material to be detected.
Under MAEK mode, TEACH indicator is on. Aim at the target color andpress the ON once, aim at the background color and press the OfF oncethe setting is completed.
Numerical Fine Tuning
The sensor trigger signal is signaled according to the current value aboveor below the set value and can be fine-tuned

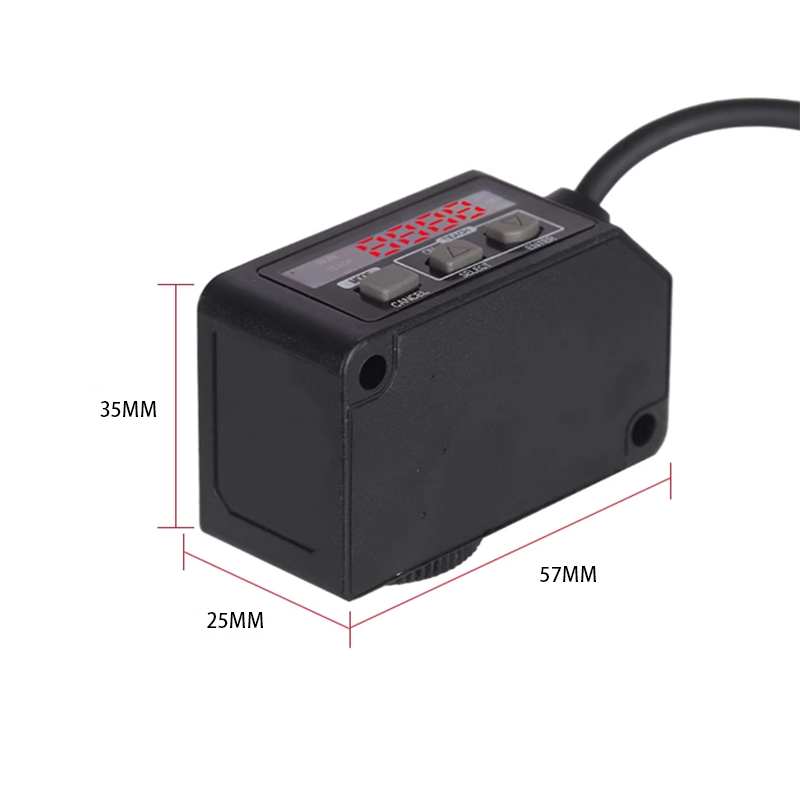

| No. | LS-101N | LS-101P |
| NPN Output | PNP Output | |
| Type | 1 Output, Wire Lead Type | |
| Control Output | 1 output with short-circuit protection and automaticprotection against anyinterference automaticanti-interference function | |
| Light Source | RGB 3-color, 4-element light-emitting diode body | |
| Reaction Time | In the color scale mode: 45 us or less;in the color mode: 150 us or less. | |
| Output Selection | Push button menu selection | |
| Display Indicator | Operation indicator: red LED, OLED screen display | |
| Detection Mode | C and Cl mode and MARK modeDetection distance: 10MM士3MMM | |
| Timer function | Equipped with variable turn-on delay/disconnect delaytimer, valid/ invalid conversion type (Timing time: 1 to999ms} | |
| Control Outputs | NPN/PNP open collector 24V, max.100mA (main partonly)Current consumption 40mA max,(residual voltage: 2Vwhen extension parts are connected) | |
| Electrical Power Source | Between 12 and 24vDC+10%, variable ratio (P-P):max.10% Clas5 2 | |
| Working EnvironmentBrightness | Incandescent: max: 20,000lux, Daylight: max: 30,000luX | |
| Power Rate Consumption | Normal operation: 750mW or less (at 24V power supplyvoltage, consumption current 30mA or less) (30mA or less at 24V supply voltage)ECO mode: 600mW or less (25mA or less at 24V supplyvoltage)ECO mode: 600mW or less (25mA or less at24V supply voltage) | |
| Vibration Resistance | 10 to 55Hz,double amplitude: 1.5mm, X,YZ axisrespectively 2 hours | |
| Ambient Temperature | -10 to +55^C without freezing |
Past Name
| MODE/CANCEL: Set/Cancel | ON/SELECT: Increase/Select |
| OFF/ENTER: Decrease/Enter | OPE: Model indicator |
| RUN: Run | TEACH: Setting |
| ADJ: Value fine-tuning | COLOR: Mode selection |
| TIMER: Delay selection (output hold or delay) | PRO: Delay Adjustment |
Detection Setting
Fix the sensor parallel to the top of the detected material, the distanceof the electric eye is 10mm (+3mm) from the material to be detected.

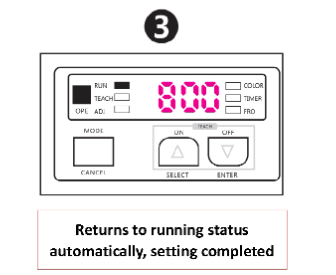

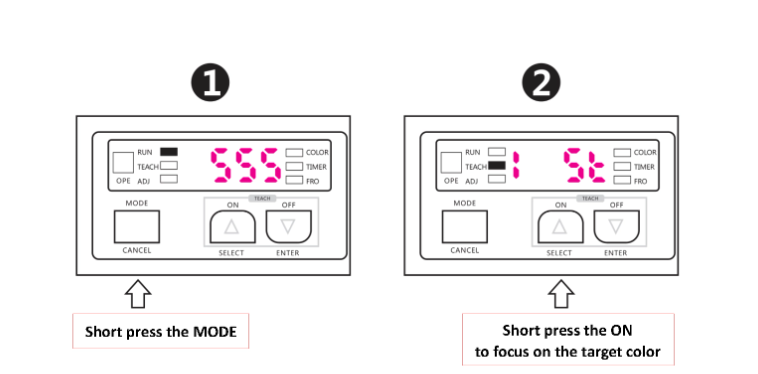

Under MAEK mode, TEACH indicator is on. Aim at the target color andpress the ON once, aim at the background color and press the OfF oncethe setting is completed.
Numerical Fine Tuning
The sensor trigger signal is signaled according to the current value aboveor below the set value and can be fine-tuned
| No. | LS-101N | LS-101P |
| NPN Output | PNP Output | |
| Type | 1 Output, Wire Lead Type | |
| Control Output | 1 output with short-circuit protection and automaticprotection against anyinterference automaticanti-interference function | |
| Light Source | RGB 3-color, 4-element light-emitting diode body | |
| Reaction Time | In the color scale mode: 45 us or less;in the color mode: 150 us or less. | |
| Output Selection | Push button menu selection | |
| Display Indicator | Operation indicator: red LED, OLED screen display | |
| Detection Mode | C and Cl mode and MARK modeDetection distance: 10MM士3MMM | |
| Timer function | Equipped with variable turn-on delay/disconnect delaytimer, valid/ invalid conversion type (Timing time: 1 to999ms} | |
| Control Outputs | NPN/PNP open collector 24V, max.100mA (main partonly)Current consumption 40mA max,(residual voltage: 2Vwhen extension parts are connected) | |
| Electrical Power Source | Between 12 and 24vDC+10%, variable ratio (P-P):max.10% Clas5 2 | |
| Working EnvironmentBrightness | Incandescent: max: 20,000lux, Daylight: max: 30,000luX | |
| Power Rate Consumption | Normal operation: 750mW or less (at 24V power supplyvoltage, consumption current 30mA or less) (30mA or less at 24V supply voltage)ECO mode: 600mW or less (25mA or less at 24V supplyvoltage)ECO mode: 600mW or less (25mA or less at24V supply voltage) | |
| Vibration Resistance | 10 to 55Hz,double amplitude: 1.5mm, X,YZ axisrespectively 2 hours | |
| Ambient Temperature | -10 to +55^C without freezing |
